We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

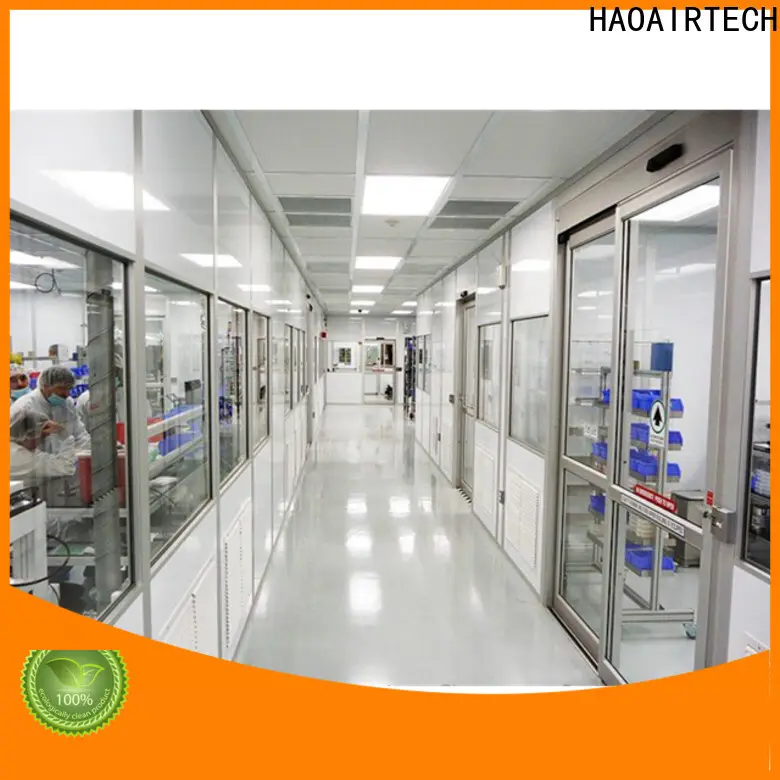

HAOAIRTECH hardwall cleanroom with constant temperature and humidity controlled for semiconductor factory 1
HAOAIRTECH hardwall cleanroom with constant temperature and humidity controlled for semiconductor factory 2
HAOAIRTECH hardwall cleanroom with constant temperature and humidity controlled for semiconductor factory 3
HAOAIRTECH hardwall cleanroom with constant temperature and humidity controlled for semiconductor factory 4
HAOAIRTECH hardwall cleanroom with constant temperature and humidity controlled for semiconductor factory 1
HAOAIRTECH hardwall cleanroom with constant temperature and humidity controlled for semiconductor factory 2
HAOAIRTECH hardwall cleanroom with constant temperature and humidity controlled for semiconductor factory 3
HAOAIRTECH hardwall cleanroom with constant temperature and humidity controlled for semiconductor factory 4

HAOAIRTECH hardwall cleanroom with constant temperature and humidity controlled for semiconductor factory

Brand:
HAOAIRTECH
Model number:
HA-HMR
Material:
Sandwich Panel
OEM /ODM:
OEM/ODM
Certificated:
CE
Start port:
Huangpu
Delivery time:
10 working days
MOQ:
1sets
Country of Original:
China
Supply ability:
100Squre/ month
Payment term:
T/T IN advance, 100% LC at sight against with document
Application:
Microcomputer electronic cleanroom
Inquiry
Product Name
Hardwall Modular Cleanroom
Other Name
hardwall cleanroom
Guarantee Time
12 months
Purificaiton Rank
ISO7
Dimension
3000x4000x2590mm
Power Supplier
220V/50 or 60HZ
Company Advantages
1. Advanced high technologies have been applied in HAOAIRTECH modular clean room . It is manufactured under energy-saving technology, suppression of surge technology, and electromagnetic regulation technology. The product ensures the smooth refreshing breath of users
2. Under perfect quality inspection system, hardwall cleanroom is of good enough quality. The product stands out for its high efficiency for purification
3. This product is safe to use. It is produced in accordance with electrical safety standards. These standards relate to CB standards, CCC standards, CCA standards, and the like. The product is of high purification rank


ISO7 Hardwall Modular Cleanroom

HAOAIRTECH hardwall cleanroom with constant temperature and humidity controlled for semiconductor factory 5

Introduction


  hardwall  modular cleanroom is a portable Clean room system equipped with HEPA Fan Filter Unit, it generates stable and ideal laminar air flow inside.

This unit can provides high cleanliness (ranging from Class 100 to Class 10 000) partially in the clean room with excellent flexibility for the various demands of job process conditions.

The custom Mobile Clean Room Booth & air tent panel offers unmatched prices, usage and specifications for various research laboratories.

The Clean Room Tent offers application in pharma industries (to maintain GMP), Operation theatres, Horticulture, Tissue culture and bio fertilizer labs, Space research, Food processing industries etc.



  The pvc curtain wall is neat, simple, elegant and generous. The surface of the curtain sheet has good smoothness, and has the functions of sound insulation, heat insulation, moisture resistance, and UV resistance. Easy to clean and never fade. Set beautiful and practical together



Technical Paremeters:


parameter1

Construction Details:

Framework:
The rooms are freestanding and fabricated of steel with welded gusset plates on each leg support to insure rigidity. Our exclusive rafter ceiling system allows rooms to span without need of internal legs. All framework has an electro-statically applied powder coat finish.



Ceiling Grid:
Consists of anodized aluminum hat and zee shaped extrusions that are formed to fit steel frame. One inch anodized tees make up cross sections creating a leak free ceiling system.



Ceiling Panels:
panels manufactured of high density formed fiber core covered with a white vinyl membrane. Tiles are durable, easy to clean and offer both humidity resistance and high light reflection.



Curtains:
clear PVC curtain hung to an appropriate height around perimeter of clean room to maintain proper pressurization. Various types of entry/exit systems are offered to best suit personnel/product flow. (overlaps, strips, bi-folding or dual-flex self-closing doors.) Curtains are easily mounted to steel frame by our one piece white PVC mounting track. Simply hook curtains on to track and close the continuous cover. This sleek non-corrosive design creates a tight seal to frame work that prevents contamination from entering the clean room.



HEPA Fan Filter Modules:
HEPA filter efficiency to be 99.99% at 0.3 microns and produce 720 to 800 c.f.m. or an average velocity of 90 f.p.m.



Electrical:
A prefabricated wiring system is supplied to speed up installation and reduce wiring costs. Assembly personnel just plug electrical components together so an electrician is only needed to connect power to a single point junction box. What makes this system completely user friendly is a leg mounted control box with separate on/off switches for HEPA filters and light fixtures.



HAOAIRTECH hardwall cleanroom with constant temperature and humidity controlled for semiconductor factory 7



Company Features
1. With years of experience, Guangzhou HaoAir Purification Technology Co.,Ltd. is a best reliable source for the needs of R&D and manufacture of modular clean room . Guangzhou HaoAir Purification Technology Co.,Ltd. has complete test measures and high-qualified employees.
2. Guangzhou HaoAir Purification Technology Co.,Ltd. will always update knowledge and increase professional and technical competence with its hardwall cleanroom product.
3. We have good supervision of production for modular cleanroom . We are quality-oriented in Guangzhou HaoAir Purification Technology Co.,Ltd.. Check now!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
