Enterprise Strength
-
HaoAir always keeps in mind the service principle of 'customer's needs can not be ignored'. We develop sincere exchanges and communication with customers and offer them comprehensive services in accordance with their actual demands.
Company Advantages1. The design of HAOAIRTECH hvac hepa filter is grounded in thorough research of the existing and target customers.
2. h13 hepa filter offers hvac hepa filter , while maintaining an exemplary indoor
air filter .
3. The product helps meet the needs of medical, pharmacological, chemical, and industrial applications for clean and potable water by reducing the contaminants in the water.
Characteristics
The carve box folds can prevent the breakage of the filter material.
Neoprene /EVA gasket prevent the air leaking in operation.
MDF frame in 120mm, 150mm, 220mm for choose.
Adopting the laser to scan the filter one by one (MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.99%-99.999%@0.3um
Max temperature is 80C
Max humidity is 80%
Introduce
Heap air filter with paper clapboard adopt the special design to keep the space between pleated layers by clapboard. Paper spacers can accurately maintain the distance between the pleat layers, Maximum use of filter material under minimum resistance.
/ Operating Conditions
Media | Super glass fibre |
Frame | AL/GL/MDF frame |
Gasket | Neoprene /EVA or PU |
Media spacer | Hot melt |
Frame thickness (mm) | 120/150/220 |
Clapboard | 120g/m paper |
Efficiency | 99.99%-99.999%@0.3um |
Max Temperature | 80℃ |
Max Humidity | 80% |
/ Products Parameter
Dimension(mm)
(W*H*D) | Rate Air Flow (m3/h) | Media Area (m2) | Dust Holding (g) | Rate primary Resistance(Pa) (H13-H14) | Finally Resistance (Pa) |
484X484X120 | 450 | 4.4 | 230 | 220Pa | 400-600pa |
610X610X120 | 700 | 7.1 | 370 |
610X915X120 | 1050 | 10.6 | 560 |
610X1220X120 | 1400 | 14.1 | 740 |
484X484X150 | 600 | 6 | 320 |
610X610X150 | 1000 | 9.7 | 510 |
610X915X150 | 1500 | 14.5 | 770 |
610X1220X150 | 2000 | 19.3 | 1020 |
484X484X220 | 1000 | 9.8 | 600 |
610X610X220 | 1600 | 15.8 | 920 |
610X915X220 | 2300 | 23.7 | 1340 |
610X1220X220 | 3000 | 31.6 | 1750 |
/ Primary Resistance & Face Velocity Diagram
![HAOAIRTECH gel seal hvac hepa filter for air cleaner 10]()
/ Product Details
part.1

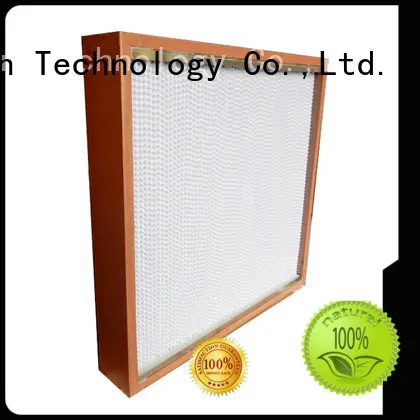

HEPA air filter With Paper Clapboard
part.2
Paper clapboard separate the media
/ package
Company Features1. Customer views HAOAIRTECH as is an excellent h13 hepa filter brand.
2. We have the most advanced product manufacturing facilities. These extensive internal machines further ensure control of the manufacturing process by providing the right tools for each job.
3. Guangzhou HaoAir Purification Technology Co.,Ltd. will promote its service quality to serve customers. Please contact. Guangzhou HaoAir Purification Technology Co.,Ltd. will continue to develop hepa filter h14 strategically. Please contact. HAOAIRTECH will try to be for each product. Please contact.
