We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

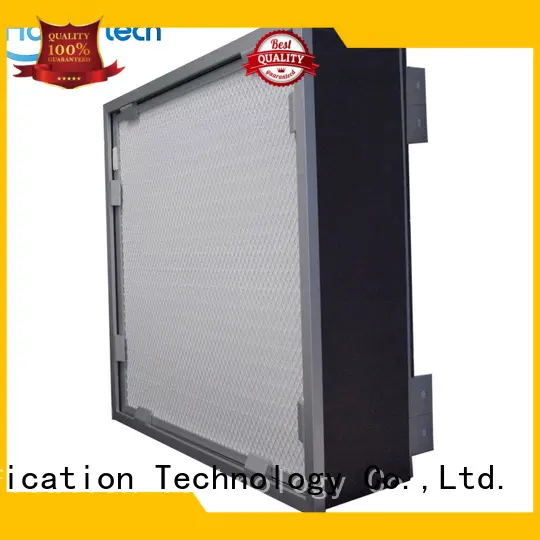

HAOAIRTECH gel seal h13 hepa filter with dop port for electronic industry 1
HAOAIRTECH gel seal h13 hepa filter with dop port for electronic industry 2
HAOAIRTECH gel seal h13 hepa filter with dop port for electronic industry 3
HAOAIRTECH gel seal h13 hepa filter with dop port for electronic industry 1
HAOAIRTECH gel seal h13 hepa filter with dop port for electronic industry 2
HAOAIRTECH gel seal h13 hepa filter with dop port for electronic industry 3

HAOAIRTECH gel seal h13 hepa filter with dop port for electronic industry

Brand:
HAOAIRTECH
Model number:
HA-HEPAM
Material:
Steel with power coated
OEM /ODM:
OEM/ODM
Certificated:
SGS
Start port:
GUANGZHOU
Delivery time:
7 Working days
MOQ:
10sets
Country of Original:
china
Supply ability:
1000set/ Per Month
Payment term:
T/T in advance . LC at sight
Application:
HVAC air condtion system
Inquiry
Company Advantages
1. HAOAIRTECH portable air filter is made with the progressive technology and quality assured materials. It is certified by SGS corporation and reaches RoHS standard
2. HAOAIRTECH is well-known for its high quality and best price for h13 hepa filter . A sample of the product can be offered for the confirmation of quality
3. The service life of the product is longer after numerous times of testing and can be used for a long time. The product can increase the rate of finished products
4. The QC team carries out a strict test at every stage to ensure its quality. The product's rigid frame forestalls shrinking or bending
5. The advanced technology in procession with universal quality norms makes this product of high quality.


   Ducted Ceiling HEPA Module


    Characteristics:

The ducted ceiling HEPA Moudle cabinet are designed in closed integration which prevent the air leakage.

Meanwhile the heap filter replaceable from cleanroom inside.

This filter light weight and easy maintain

Air duct is galvanized steel and the diameter is 250mm, 300mm and 350mm for your choose

Control valve for air flow adjust (optional).

The media material is super glass fibre for 0.3um particulate.

100 % provide the test report for each mini-pleats HEPA air filter

Filtration Efficiency: H13 ,H14,(EN1822). 99.95%-99.995%@0.3um



HAOAIRTECH gel seal h13 hepa filter with dop port for electronic industry 4


ducted ceiling HEPA Moudle Operating Conditions:

Media

Super glass fibre

Frame

AL/GL frame

Gasket

Neoprene /EVA

Media Spacer

Hot melt

Cabinet Thickness (Mm)

150/180mm

Filter Frame

69mm

Efficiency

99.99%-99.999%@0.3um

Max Temperature

70℃

Max Humidity

100%

HAOAIRTECH gel seal h13 hepa filter with dop port for electronic industry 5

Products Parameter

Cabinet size (mm)
(W*H*D)

Filter size
(mm)
(W*H*D)

Rate
Air Flow
(m3/h)

Media Area
(m2)

Dust
Holding
(g)

Rate primary
Resistance
(Pa)

Finally
Resistance
(Pa)

Efficiency

360X360X180

320x320x69

264

2.93

126



<220pa



400-600pa



H13-H14

524X524X180

484x484x69

600

6.61

397

650X650X180

610x610x69

1000

10.44

627

670X670X180

630x630x69

1050

11.13

668

650X955X180

610x915x69

1500

15.42

925

650x1260x180

610x1220x69

2000

20.40

1224

670x1300x180

630x1260x69

2100

21.76

1306

345x345x180

305x305x69

240

2.66

160

345x650x180

305x610x69

500

5.09

305

345x955x180

305x915x69

750

7.52

450

640x640x180

600x600x69

980

10.11

607

640x1240x180

600x1200x69

1980

19.74

1185

650x1280x180

610x1240x69

2050

20.74

1244

524x1008x180

484x968x69

1250

12.85

771


Application:

The replaceable HEPA air filter with hood suitable for high and strict working environment such

as surgery, lab, pharmacy , micro-electric ,film production in terminal filtration of the air-condition filtration system



   Warranty:



  Our equipment is warranty for 1 year excluding consumable parts and accessories.

  All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

  Additional IO/OQ/GMP document is available upon request.

 Contact our sales representative for specific warranty details or document request.





  Consumable parts illustration:



  1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.



  2: HEPA filter: each one should be replacement in each half and one years.
