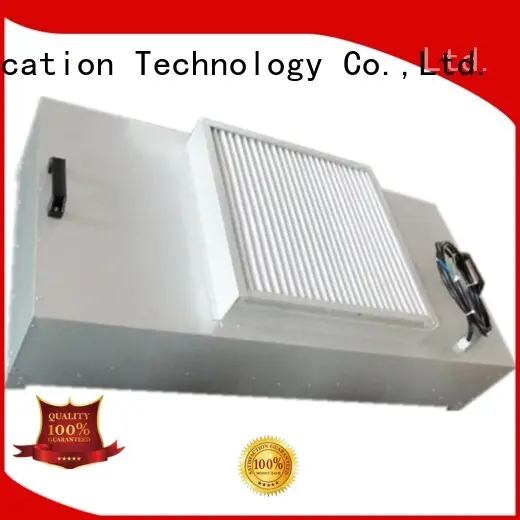

Company Advantages1. HAOAIRTECH ceiling fan filters is made by adopting the world's newest production technology. It has low noise and high mobility
2. The product is traded internationally and comprises a big portion of international trade in raw materials due to the unequal distribution of mineral resource. The product creates a clean environment to reduce allergy and asthma symptoms
3. The product has a smooth surface. It is furnished with a layer of glaze that can reduce the surface roughness. The product is widely used for high-end clean rooms of various manufacturers
4. The product features the desired durability. It is constructed by using a welded and heavy-duty 16 gauge (minimum) steel frame which is sturdy enough. The product can increase the rate of finished products
5. The product is not likely to be affected by overcurrent. It is embedded with a thermorelay, an overload protection element, to keep the product from the shock damage of short circuit. Made of stainless steel SUS304, it is beautiful and durable
Characteristics
1.The direct-drive high-efficiency centrifugal fan has the advantages of low noise during operation, small vibration, and stepless speed regulation.
The energy efficiency ratio is high and the heat generation is small, which further reduces the heat generation of the additional work area.
2.The cabinet and high-efficiency filter are designed in a split design, making installation and replacement more efficient and easier.
3.It is especially suitable for assembly into ultra-clean production lines, which can be arranged as a single unit according to the process requirements, or multiple lines of assembly lines with high cleanliness level.
![HAOAIRTECH filter fan unit with internal fan for for non uniform clean rooms1 5]()
Product drawings
![HAOAIRTECH filter fan unit with internal fan for for non uniform clean rooms1 6]()
1.plastic handle 2.Fan 3.HEPA filter 4.Pre-filter 5.control panel 6.power cable
Technical Parameter
Fan Filter Unit |
Model | HA– FFU920 | HA – FFU1175 | HA – FFU1225 |
External size: (W*D*H)mm | 920X615X350 | 1175X575X350 | 1225X615X350 |
Air Flow | 900m3/h | 1000m3/h | 1200m3/h |
Construction | Stainless steel 304/aluminum/galvanized steel/steel with power coated |
Air Velocity | 0.3 / 0.35 / 0.4 / 0.45 / 0.5 / 0.6 m/s |
Control system | 1. Power on/off 2. Control speed |
Pressure (pa) | 97 (10mm)Aq |
Hepa Filter | Size(mm) | 915X610X69 | 1170X570X69 | 1220X610X69 |
Efficiency | 99.99% @0.3um |
Pressure | 180pa @0.45m/s |
Power supply | 220/110V 50/60HZ |
Fan power | 123W | 123W | 175W |
Noise | 52dB | 52dB | 52dB |
Notes
1.To prevent motor overheating the installation of protective devices is recommended.
2.Special size available upon request.
3.Filter can be HEPA or ULPA .
4.Motor has overheat circuit protection
5.Control Box can be hand-controlled or computer program system control
6.Height in above specification doesn’t include filter
FFU production
![HAOAIRTECH filter fan unit with internal fan for for non uniform clean rooms1 7]()
Company Features1. Guangzhou HaoAir Purification Technology Co.,Ltd. is a fully advanced filter fan unit manufacturer and supplier. We have imported a wide range of brand-new facilities from some of the world-famous brands. So we are equipped with the latest and most cost-efficient technology for our production activities.
2. Equipped with first-class facilities, the production center implement features a relatively high automation level. All of the facilities are made precisely and runs automatically stable. This enables the factory to achieve a smart system on some parts of the production process.
3. Our manufacturing plant is next to the airport and port. This advantageous location provides us with a good transportation base for the distribution of our products. The basic tenet of Guangzhou HaoAir Purification Technology Co.,Ltd. is that ceiling fan filters . Check now!
