HAOAIRTECH dynamic pass box with arc design gmp standard for electronics factory

Company Advantages
1. The primary operations of HAOAIRTECH dynamic box cover several parts. The comminution and concentration are the most preliminary and essential parts and some modern mineral processing step such as sampling analysis may be conducted.
2. Several tests have been carried out at each stage of production to ensure consistent product quality.
3. Compared with other products, this product has the advantages of long service life, stable performance and good usability.
4. The product is really treasured by our customers for its consistent position in the market.

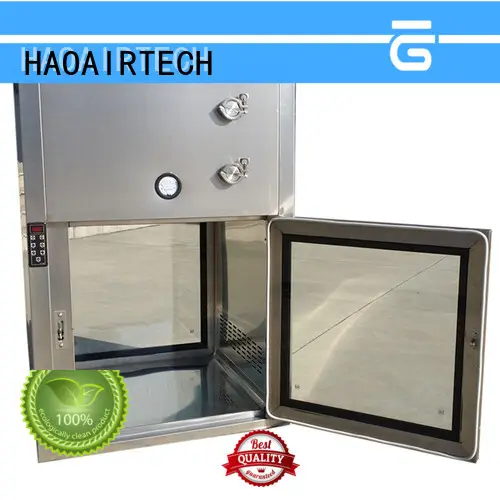

SS316 Dynamic Pass Box

Product Characteristic :

      SS316 Dynamic Pass Box is designed to allow material transfer through controlled environment without much personnel movement to minimize man /

material movement & avoid cross contamination between different classified areas. This is essentially installed to minimize movement of personnel

for transfer of material into and from the clean room. It aids to achieve desired classification, maintain integrity of products, process & controls ingress

of particulate contaminants into clean room & between different classified areas. Our range of Dynamic pass boxes is available in various specifications

as per the client’s requirements.Dynamic Pass Box is with a variety of standard dimensions also our pass boxes can be custom engineered to any size.

Dynamic pass boxes available in powder coated Mild Steel, SS 304 / 316 / 316L or a combination of both.

Optional Accessories:

 1: U.V. Light with Hour MeterElectro-Magnetic

  2: Mechanical InterlockingSS 316 removable grills on side walls for return air Floor mounted

 3: construction with three side wall structure

 4: Door Drop SealAudio Visual Alarm indicating condition of HEPA FiltersClean

 5: down timer with operation hold indicatorVFD based control systemsPhotohelic guage

 6:  Digital pressure gauge to monitor of pressure drop across filterFlame Proof Fitting

SS316 Dynamic Pass Box Products Parameter:

MODEL	HA-DPB500
External size (mm) (W*D*H)	700x570x1050mm
Work zone (mm) (W*D*H)	500x500x500mm
Purification rank	Class 100
Material  （Option）	1: Entirety Sus304.(T=1.2/1.5mm) 2: Entirety sus201. (T=1.2/1.5mm) 3: External is steel with power coated, Internal is SUS304(T=1.2/1.5mm) 4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm)
Control system	1: Gel Sealant mini-pleats HEPA air filter so that pass the DOP test without any problem. 2: Pass Box inside bottom corner is round shape without any dust accumulation .  3: Double layer vacuum glass have very good appearance  4: Software computer interlocking door with long time using life  5: Air speed is 0.45m/s adjustable
UV light	1 PCS
Power supply	220v/50HZ
packing size (mm)	800x870x1300mm
Packing material	Standard Export Poly wood Packing(Fumigant free material)

Company Features
1. Since the founding, Guangzhou HaoAir Purification Technology Co.,Ltd. has been engaged in designing, manufacturing, and supplying dynamic box . We have become an experienced manufacturer in the industry.
2. The technicians who have been experienced in producing dynamic pass box are well-equipped in our factory.
3. Being the leader of the passbox in pharma industry is the goal of cleanroom pass box . Inquire now! HAOAIRTECH hopes to become one of the leading pass box manufacturers suppliers in the industry. Inquire now! Sticking to the corporate spirit of putting customers first, HAOAIRTECH will be encouraged to ensure the quality of the service. Inquire now!
