HAOAIRTECH disposable hepa filter h12 with hood for air cleaner

Company Advantages
1. By using advanced technology in the production, HAOAIRTECH indoor air filter has a delicate surface finish. The product is of high purification rank
2. With quality and technology under control, Guangzhou HaoAir Purification Technology Co.,Ltd. can take control of service better. It acts as an indispensable part in a dustfree production line
3. The product features flexible strength. It is more likely to bend under high pressure than break when applied in a medical environment. The product has passed strict air speed test
4. The product features vibration resistance. By reducing the amplitude and frequency of the vibrational waves, it outwardly disperses the energy caused by vibrations. The product features an energy-saving performance
5. It has a smooth corrosion resistant finish. If chemical substances or liquid is splashed on it by accident, no surface corrosion will occur. Automatic operation is the highlight of the product

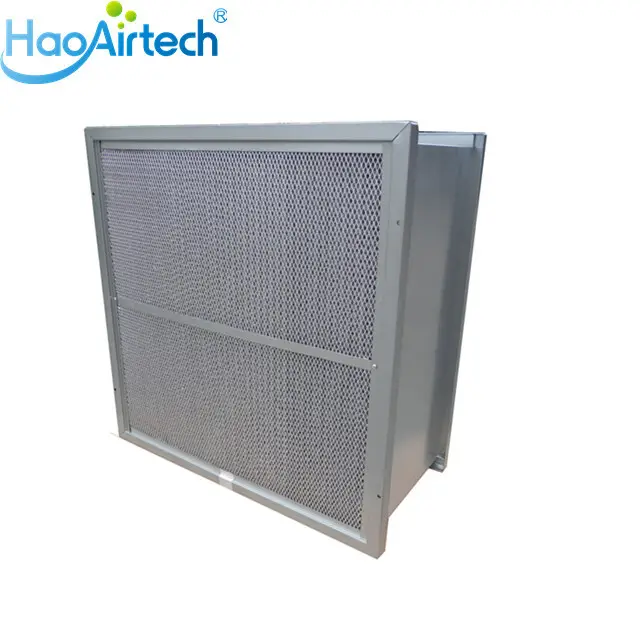

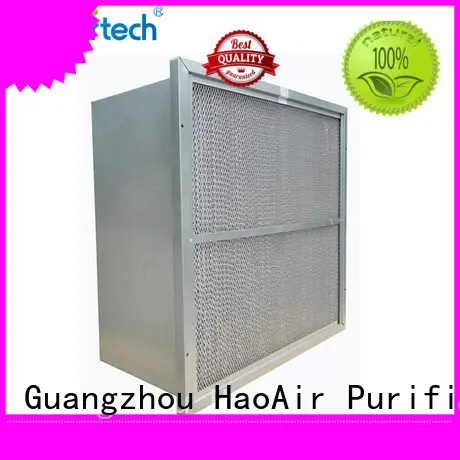

Hi-Temp HEPA Filter

    HEPA Filter M5-M6 and F7 EN 779 (HTRC5-8)

    HAOAIRTECH can supply and install the High Temperature HEPA Filter: Rigid Cell Filter

   The  Hi-Temp HEPA Filter from the  HVAC filters range, is designed for use in HVAC systems in high temperature environments.

    It offers superior performance over standard panel filters.

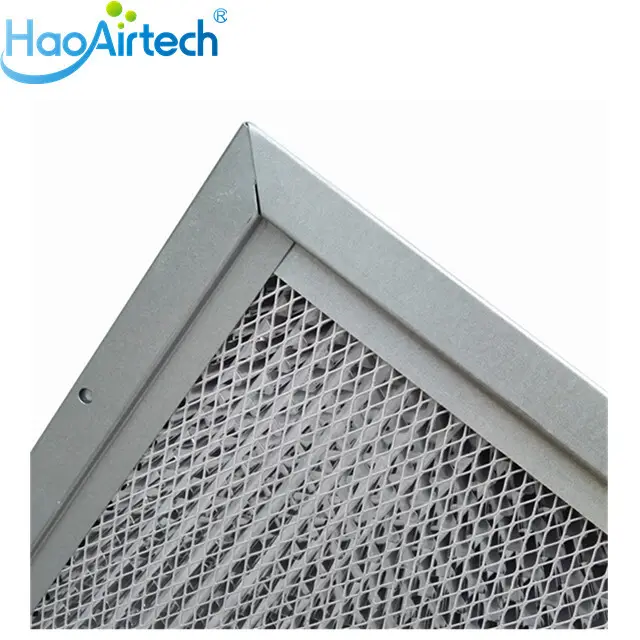

   This DeepPleat HEPA Filter is made up of galvanised aluminium and glass microfibre

    filter media that is laminated onto an expanded metal grid.

     Offering low pressure drop, they can be used for pre-filtration in addition to main filtration.

      The Hi-Temp HEPA filter is suited to temperatures up to 300°C, also for use up to 90% Relative Humidity (RH)

Products Parameter：

Dimension   (mm) (W*H*D)	Rate Air   Flow   (m3/h)	Media   Area    (m2)	Dust   Holding    (g)	Rate   primary Resistance    (Pa)	Finally Resistance      (Pa)	Efficiency
289x594x150	675	4.3	261	<60	250-300	F6
594x594x150	1385	8.84	354
287x594x292	1490	9.52	571
594x594x292	3085	19.7	1185
289x594x150	675	4.3	261	<80	300-400	F7
594x594x150	1385	8.84	354
287x594x292	1490	9.52	571
594x594x292	3085	19.7	1185
289x594x150	675	4.3	261	<100	300-400	F8
594x594x150	1385	8.84	354
287x594x292	1490	9.52	571
594x594x292	3085	19.7	1185







Introduce :

    HAOAIRTECH offers a comprehensive range of High Temperature Filters for use in specialist applications.

      High Temperature Filters are often installed downstream of heat reactivated adsorption compressed air dryers.

     With operating pressures up to 16 barg (232 psig) and a maximum operating temperature of 250˚C (482˚F),

     these filters are ideal to protect processes and equipment from dust where the temperature of the compressed air exceeds 120°C (248°F).

   Applications that require High Temperature Filters are not only restricted to Desiccant Dryer installations.

    Where high efficiency compressed air and gas filters are needed to operate within such demanding conditions,

   we can assist in ensuring the correct selection and installation of filters for efficiency ratings of 5, 1, and 0.01 micron

Company Features
1. As a reliable manufacturer, Guangzhou HaoAir Purification Technology Co.,Ltd. occupies an important position in the global indoor air filter market.
2. Guangzhou HaoAir Purification Technology Co.,Ltd. constantly improves the product manufacturing process.
3. Our aim is 'Passion: committed in heart and mind.' We encourage employees to work harder to provide customers service whole-heartedly. Inquiry!
