We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

HAOAIRTECH customizable pass box manufacturers with conveyor line for clean room purification workshop1 1
HAOAIRTECH customizable pass box manufacturers with conveyor line for clean room purification workshop1 2
HAOAIRTECH customizable pass box manufacturers with conveyor line for clean room purification workshop1 1
HAOAIRTECH customizable pass box manufacturers with conveyor line for clean room purification workshop1 2

HAOAIRTECH customizable pass box manufacturers with conveyor line for clean room purification workshop1

Brand:
HAOAIRTECH
Model number:
HA-DPB
Material:
Stainless steel304/316
OEM /ODM:
OEM/ODM
Certificated:
CE
Start port:
Huangpu
Delivery time:
10 working days
MOQ:
10sets
Country of Original:
china
Supply ability:
100set/month
Payment term:
100% T/T in advance, or 100% LC at sight
Application:
cleanroom
Inquiry
Company Advantages
1. The design style of HAOAIRTECH pass box manufacturers has been praised by customers. It is certified by SGS corporation and reaches RoHS standard
2. This product can flexibly adapt to the changing working requirements. It can meet the specific needs and workload. The product's rigid frame forestalls shrinking or bending
3. pass box manufacturers can stand all kinds of strict tests before putting into use. It has low noise and high mobility

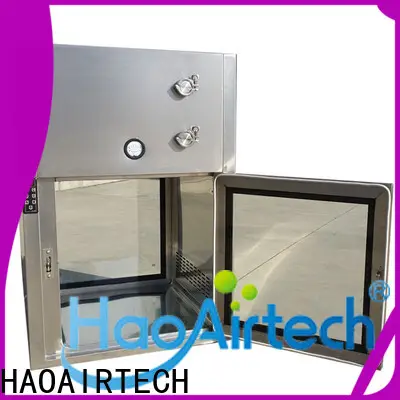

SS316 Dynamic Pass Box


Product Characteristic :


      SS316 Dynamic Pass Box is designed to allow material transfer through controlled environment without much personnel movement to minimize man /

material movement & avoid cross contamination between different classified areas. This is essentially installed to minimize movement of personnel

for transfer of material into and from the clean room. It aids to achieve desired classification, maintain integrity of products, process & controls ingress

of particulate contaminants into clean room & between different classified areas. Our range of Dynamic pass boxes is available in various specifications

as per the client’s requirements.Dynamic Pass Box is with a variety of standard dimensions also our pass boxes can be custom engineered to any size.

Dynamic pass boxes available in powder coated Mild Steel, SS 304 / 316 / 316L or a combination of both.



Optional Accessories:


 1: U.V. Light with Hour MeterElectro-Magnetic

  2: Mechanical InterlockingSS 316 removable grills on side walls for return air Floor mounted

 3: construction with three side wall structure

 4: Door Drop SealAudio Visual Alarm indicating condition of HEPA FiltersClean

 5: down timer with operation hold indicatorVFD based control systemsPhotohelic guage

 6:  Digital pressure gauge to monitor of pressure drop across filterFlame Proof Fitting



SS316 Dynamic Pass Box Products Parameter:

MODEL

HA-DPB500

External size (mm)
(W*D*H)

700x570x1050mm

Work zone (mm)
(W*D*H)

500x500x500mm

Purification rank

Class 100

Material
(Option)

1: Entirety Sus304.(T=1.2/1.5mm)
2: Entirety sus201. (T=1.2/1.5mm)
3: External is steel with power coated, Internal is SUS304(T=1.2/1.5mm)
4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm)



Control system

1: Gel Sealant mini-pleats HEPA air filter so that pass the DOP test without any problem.
2: Pass Box inside bottom corner is round shape without any dust
accumulation .
3: Double layer vacuum glass have very good appearance
4: Software computer interlocking door with long time using life
5: Air speed is 0.45m/s adjustable

UV light

1 PCS

Power supply

220v/50HZ

packing size (mm)

800x870x1300mm

Packing material

Standard Export Poly wood Packing(Fumigant free material)

HAOAIRTECH customizable pass box manufacturers with conveyor line for clean room purification workshop1 3


Company Features
1. The technical power is Guangzhou HaoAir Purification Technology Co.,Ltd.'s base of development.
2. Guangzhou HaoAir Purification Technology Co.,Ltd. has been responsible for developing a number of highly marketable pass box manufacturers for years. Inquiry!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
