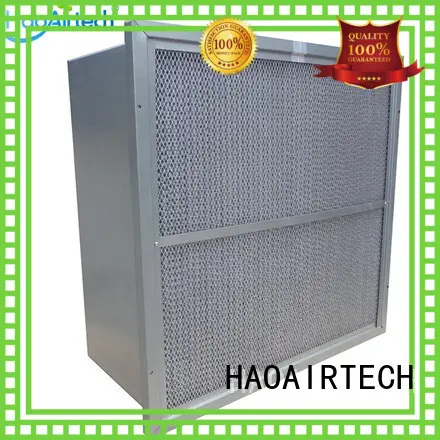

HAOAIRTECH compact rigid filter with abs frame for healthcare

Company Advantages
1. HAOAIRTECH residential air filters has been designed considering many important factors. They are slip and impact resistance, wear resistance, flex resistance, and odor resistance.
2. The product does no harm to the body. The ingredients are tested to be free from hazardous substance without affecting the body's structure or functions.
3. The dehydrating process will not cause any Vitamin or nutrition loss, in addition, the dehydration will make the food richer in nutrition and enzymes concentration.
4. Unlike one-used disposal alternatives, people find many benefits in using this one because it helps them save much on frequent replacing grilling tools.
5. The product can give people's bloodstream an immunity boost, which might result in getting sick less often.

Characteristics:

Dual density media reduces operating cost

Excellent performance in difficult operating conditions

High efficiency low resistance

Rigid metal construction

Deep pleats type water resistance glass fibre media

Turbulent air flow

Supported with aluminum foil clapboard

High temperature and high humidity

Intermittent exposure to water

Efficiency: MERV 14, MERV 13 and MERV 11 .



Operating conditions:

Media	Glass   Fiber
Frame	AL/GL   frame
Clapboard	Aluminum   Foil
Frame thickness (mm)	150/292mm
Screen	Metal   screen
Efficiency	F7/F8
Max Temperature	350 ˚F (177˚C)
Max Humidity	100%





Products Parameter：

Dimension   (mm) (W*H*D)	Rate Air   Flow   (m3/h)	Media   Area    (m2)	Dust   Holding    (g)	Rate   primary Resistance    (Pa)	Finally Resistance      (Pa)	Efficiency
289x594x150	675	4.3	261	<60	250-300	F6
594x594x150	1385	8.84	354
287x594x292	1490	9.52	571
594x594x292	3085	19.7	1185
289x594x150	675	4.3	261	<80	300-400	F7
594x594x150	1385	8.84	354
287x594x292	1490	9.52	571
594x594x292	3085	19.7	1185
289x594x150	675	4.3	261	<100	300-400	F8
594x594x150	1385	8.84	354
287x594x292	1490	9.52	571
594x594x292	3085	19.7	1185



Application:

Commercial buidings, data centers , food and beverage, hospitality , industry , microelectronics

Healthcare , schools and universities ,pharmaceutical .

   Picture：

Company Features
1. Over the past years, Guangzhou HaoAir Purification Technology Co.,Ltd. has been focusing on the development, design, production, and marketing of residential air filters in China.
2. For years, we have received many honorable prizes in the industry. For instance, we have been awarded as "China Famous Exporter", which means that we are strong enough to serve overseas customers.
3. The spirit of "customer-oriented" is the soul of our company's development. We strive to meet customer requirements by virtue of production technology and technical level that are prior to the industry. Integrity is our corporate value. We are honest with employees, customers, partners, communities, and ourselves. We will always do the right thing. We work hard to promote a sustainable future. We manufacture products by combining our industry knowledge with renewable and recyclable materials.
