HAOAIRTECH coldrolled steel pass through box with laminar air flow for hospital

Company Advantages
1. HAOAIRTECH dynamic pass box validation is inspected by a quality control inspector. The aim is to ensure that each product meets the requirements of comfort and durability.
2. The product is tested on numerous quality parameters before supplying to patrons
3. The product's shock absorption system guarantees comfort and provides support so as to prevent foot fatigue and ease foot pain.

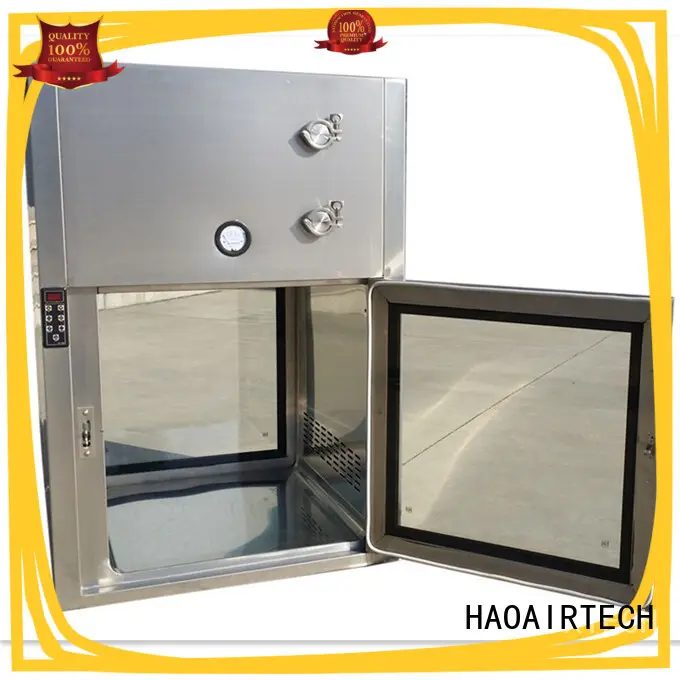

High Performance SUS304/SUS316 Clean Room Dynamic Pass Box

Dynamic Pass Box Introduction:

The pass box is a device to keep the two areas at different grade from cross contaminants from one space to another during product or tool transfer. This is a safe and effective solution since they can keep the materials from contamination within a controlled environment. It can also be used to protect the materials from external contamination.

Dynamic Pass Box Features :

1.Small sized high static Turbo blower can generate the high speed air so as to eliminate the chance of contamination in the Clean Room.

2.It is able to add inter-com, pressure differential gauge, PAO port, and germicidal lamp.

3.The construction material can be SUS or SGLC materials.

4.It is time saving and enables the convenient cargo transfer.

5.All the sizes can be customized.

The Dynamic Pass Box is approval by CE and RoHS certificate.

Customer’s design is available.

Clean Room Dynamic Pass Box Specification:

Clean Room Dynamic Pass Box HA-DPB Series
Model	HA-DPB500	HA-DPB600	HA-DPB700
Outer Size(mm) (WXDXH)	700x570x1050	800x670x1150	900x770x1250
Inner Size(mm)(WXDXH)	500x500x500	600x600x600	700x700x700
Construction	1. Entirety is SUS304/201/316,Coldrolled Steel with Baked Painting. 2. External is steel with power coated, internal is SUS304. 3. External is steel with power coated, internal is SUS201. 4. External is steel with power coated, internal is SUS316.
Air Velocity(m/s)	0.45m/s (adjustable)
HEPA Efficiency	99.995%@0.3um
HEPA Filter Type	Mini-pleats Gel Sealant HEPA Filter
Test Port	External PAO/DOP test port
Magnehelic	1 set
Inner bottom	Arc Shaped
Interlock	Micro-computer interlock
Power	150W-350W, 220v/50Hz

Clean Room Dynamic Pass Box Details:

Clean Room Dynamic Pass Box Application:

Company Features
1. Our pass through box has exported to many countries and received many positive feedbacks.
2. Guangzhou HaoAir Purification Technology Co.,Ltd. has rapid expansion for customers with the help of high quality pass box clean room and advanced technology.
3. We are open to new ways of thinking and doing things, in order to create new possibilities for customers. We will always respond to unexpected challenges in a bold way to capture global strengths and achieve operational excellence. We uphold our reputation for integrity in the marketplace and provide an ethical work environment for all our employees. We do the right thing each time we face a tough decision. Get info!
