HAOAIRTECH clean room manufacturers with automatic swing door for large scale semiconductor factory1

Brand:
HAOAIRTECH
Model number:
HA-AS2000P2 Series
Material:
inside and outside is stainless steel304 (t=1.0mm)
OEM /ODM:
Yes
Certificated:
CE and Rosh
Start port:
Guangzhou
Delivery time:
8 working days after we get the deposit.
MOQ:
1sets
Country of Original:
China
Supply ability:
50 set/one month
Payment term:
T/T , L/C , Western union
Application:
Worker in Clean room
Inquiry
Company Advantages
1. The manufacture of HAOAIRTECH air shower unit complies with mandatory and voluntary requirements of national and international markets. They include AATCC, ASTM, AS, BS, CAN/CGSB, US CPSC, DIN, EN, FZ, GB, ISO, JIS, NF, SATRA. The product can be used to save time for cleaning and vacuuming
2. Without this product, it is nearly impossible to have a developed and modern world. It really helps people do works much easier and more efficient. The product prevents viruses and bacteria from spreading
3. With the installation of air shower unit , clean room manufacturers have increased its sales. The product can withstand high temperature
4. From our user experience, it can be seen that clean room manufacturers has the advantages of air shower unit . The product features an energy-saving performance



Product Features

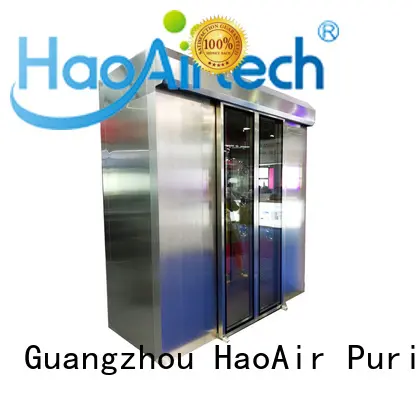

Auto Slid door Clean room air shower
External Material: stainless steel304 (t=1.0)
Inside Material: stainless steel304 (t=1.0)
External size: 2000*2000*2180mm
Internal size: 1500*2000*1910mm
Sus nozzle: 32pcs
Blowing way: 3 side (left, right and top)
Air speed: more than 25m/s
Door: Electric Interlocking in both side
HAOAIRTECH clean room manufacturers with automatic swing door for large scale semiconductor factory1 8


/ Products Parameter



MODEL

HA-AS2000P2

HA-AS2000P3

External size (mm)
     (W*D*H)

2000x2000x2200mm

2000x3000x2200mm

Work zone (mm)
     (W*D*H)

1500x1930x2000mm

1500x2930x2000mm

Air speed (m/s)

                   >25m/s

Door material

Stainless steel frame with half glass or full glass

Door control system

Auto sliding double door

Material (Option)

1:Entirety Sus304.(T=1.0/1.2/1.5mm)
2:Entirety sus201. (T=1.0/1.2/1.5mm)
3:External is steel with power coated,    Internal is SUS304(T=1.0/1.2/1.5mm)
4:External is steel with power coated.    Internal is SUS201(T=1.0/1.2/1.5mm)

Control system

1: Control system with LED display for    the shower time.
2: The shower time from 0-99second.    (Adjustable)
3: Infrared ray inductor for inside    personal shower automatic.
4: Three side blowing with Human voice    prompt system.
5: with CE remark.

The power of fan

380V/50HZ/0.75KW(4 sets)

380V/50HZ/0.75KW (6sets)

Nozzle in stain less steel

    32 pcs

48pcs

Noise level(dB)

<75dB

HEPA FILTER

Size(mm)

 630X630X80mm (4 sets)

630X630X80mm(6 sets)

Efficiency (%)

99.995% @ 0.3um mini-pleats HEPA Air Filter

Air velocity

1000(m3/h)

Initial resistance(pa)

<180pa

Pre-filter

Size(mm)

775x380x17

Efficiency (%)

75% @ 0.5um

    G3

resistance(pa)

<30Pa

parameter

Power supply

 380v/50HZ 3P

380v/50HZ 3P

 Net power(kw)

         3kw

         4.5    kw

Packing    material

Standard Export Poly wood Packing(Fumigant free material)

Weigh

650kgs

960kgs




/ Specification


Illustrate

1: Control Board    2: Nozzle    3: Infrared Indicator     4:  Power indicator    5: Emergency switch    6: Sliding door     7: HEPA air filter (H13 99.995%@0.3um)    8:Fan 9: Per-filter    10: important door closer    11: purification light


HAOAIRTECH clean room manufacturers with automatic swing door for large scale semiconductor factory1 9


Door opening method:

1:Wireless remote control switch 2: Microwave sensor automatically 3: Non-contact sensor Switch 4: Contact push button Switch



/ Product Details



part.1
Auto slidding door air shower
HAOAIRTECH clean room manufacturers with automatic swing door for large scale semiconductor factory1 10

part.2
Auto slidding door air shower
HAOAIRTECH clean room manufacturers with automatic swing door for large scale semiconductor factory1 11

part.3
Air Speed Test
HAOAIRTECH clean room manufacturers with automatic swing door for large scale semiconductor factory1 12



Auto –sliding door Air shower control system procedure:

bg


From contaminated zone to Clean room area:


1: once the person or cargo arrive the detection area, the entrance door will be open automatic.
2: when the person or cargo inside of air shower, the door will be closed automatic according setting time.
3: When the person or cargo arrived the air shower sensor area, but door will be interlocking and start the self-clean system.(0-90s)
4: After the self –clean system finished working, the exit door will be open automatic.
5: The person and goods go out of the door, some seconds later the exit door closed automatic.
The air shower procedure will be back standby state.

From clean room area to contaminated :


1: once the person or cargo arrive the detection area, the exit door will be open automatic.
2: when the person or cargo inside of air shower, the exit door will be closed automatic according setting time.
3:when the exit door closed , 10s later the entrance door will be open automatic ,
4: the person and cargo go out of the entrance door, the door will be closed within setting time.



/ Certificated:

HAOAIRTECH clean room manufacturers with automatic swing door for large scale semiconductor factory1 13




/ Our Service


HAOAIRTECH clean room manufacturers with automatic swing door for large scale semiconductor factory1 14

Our Service

1:Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request) Note: HEPA air filter should be replacement in half and one year. Pre-filter should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
