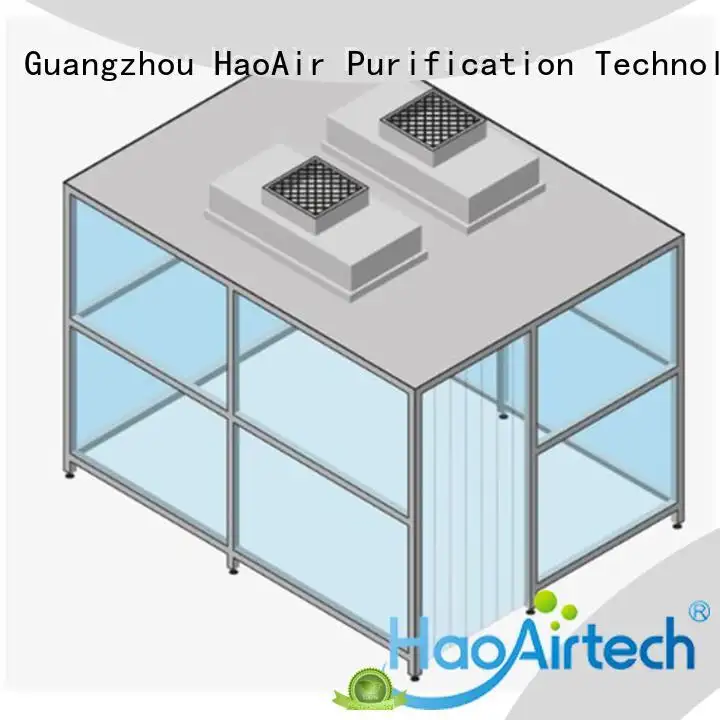

HAOAIRTECH clean room design with ffu online

Company Advantages
1. HAOAIRTECH clean shed has passed the following pre-production processes. They are the development of fabric sample, pattern making, correction of pattern, pattern grading, approval of fabric, and testing of fabrics and other raw materials.
2. The product can remain a good shape. It has good drapability that makes it look as straight as the one ironed.
3. It is specially designed for demanding applications.
4. It has the potential to be the hot product on the market.

Introduction

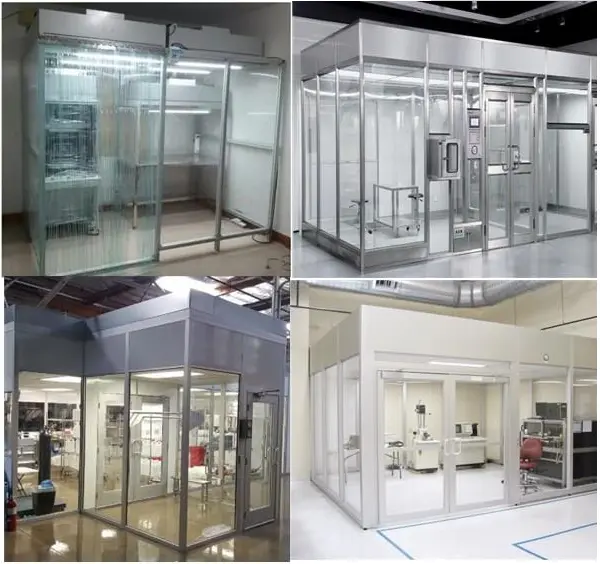

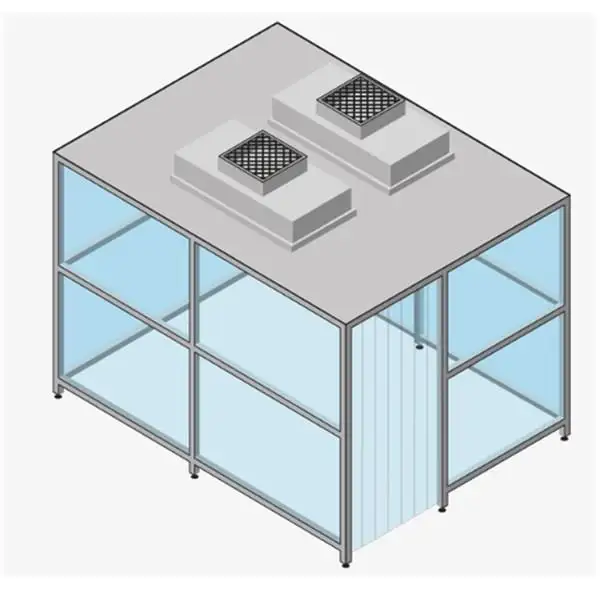

There are many types of materials for softwall clean room. Need to be customized according to specific requirements. This softwall clean room is made of plexiglass wall and aluminum profile frame.



As follow are the characteristics of plexiglass.



1. Beautiful appearance: mirror effect, exquisite workmanship, no wrinkles, no seams;
2. Good light transmittance: the light transmittance can reach 96%, the light transmittance is excellent, and the light is soft;
3. Strong impact resistance: 200 times more than ordinary glass products, with almost no danger of breaking;
4. Durability: The product has very good protection for the built-in light source and prolongs the service life of the light source product;
5. Weather resistance: it can keep the color for a long time, and the service life of good quality plate can be as long as 6-13 years
6. Fire resistance: no self-ignition and self-extinguishing;
7. Energy saving: very good light transmission, relatively reducing light sources, saving power and reducing the cost of use;



As follow are the characteristics of aluminum profiles



1. Aluminum profiles are less dense and lighter than other commonly used metals
2. Strong corrosion resistance.
3. Compared with other metal materials, aluminum molds have strong plasticity, good productivity, and have very good advantages for production.
4. The surface treatment performance is good and the appearance is bright.
5, stable chemical properties, non-magnetic, can be recycled and reused, is a benign and recyclable metal material.
6, small coefficient of elasticity, collision friction can not afford sparks
7, has good thermal conductivity and electrical conductivity

Parameter

Customer's design is available!


MODEL	HA-LFB5000
Ex size (mm)(W*D*H)	5000X3000X2596
internal size	4900x2900x2205
Purification rank	Class100
HEPA filter	Efficiency : 99.99% @ 0.3um
Pre-filter	Efficiency : 85% @ 5um
Control system	PC control system / promised speed by control box
Pressure Gauge	American Dywer pressure
Noise	<50-55 dB (test point distance is 1m)
Air velocity(m3/h)	0.2-0.5m/s Adjustable (test point distance is 30cm)
Frame material	stainless steel/steel with power coated/Cast aluminum profile
Wall frame	Tempered glass / PVC anti-static curtain (option)
Fan	EBM Fan /Taiwan fan/ Domestic fan (option)
Power suppler	AC110/220v 50HZ/60HZ






Softwall CLean Room Optional Configuration:



1. Pass Box

2. Air Shower

3. ULPA Fliter

4. Sticky mats

5. Barometer

6. Gowning Area

7. Pressure Different control device

8. Transparent / grid PVC Curtain

9. Thermo-static and humid-static air conditioning system



Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. is one of the most dynamic clean room design industry groups in China.
2. We have talented staff that are not only highly skilled technically, but also artistically imaginative. They can create products as unique as our customer's brand is.
3. We bring corporate citizenship and social responsibility into everything we do. For our customers, we are focused on adapting to changing market environments to bring innovation and insight that allows them to protect, grow, and empower their businesses. We are committed to promoting our sustainable development. We constantly enhance the environmental management system to meet the requirements of our environmental awareness. We take care of each step in the production process to make sure every stage is done meeting regulations for protecting the environment. We constantly improve ourselves to build partnerships with our clients. We enable them to focus on their core business, whilst we manage our products and services efficiently and cost-effectively.
