We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

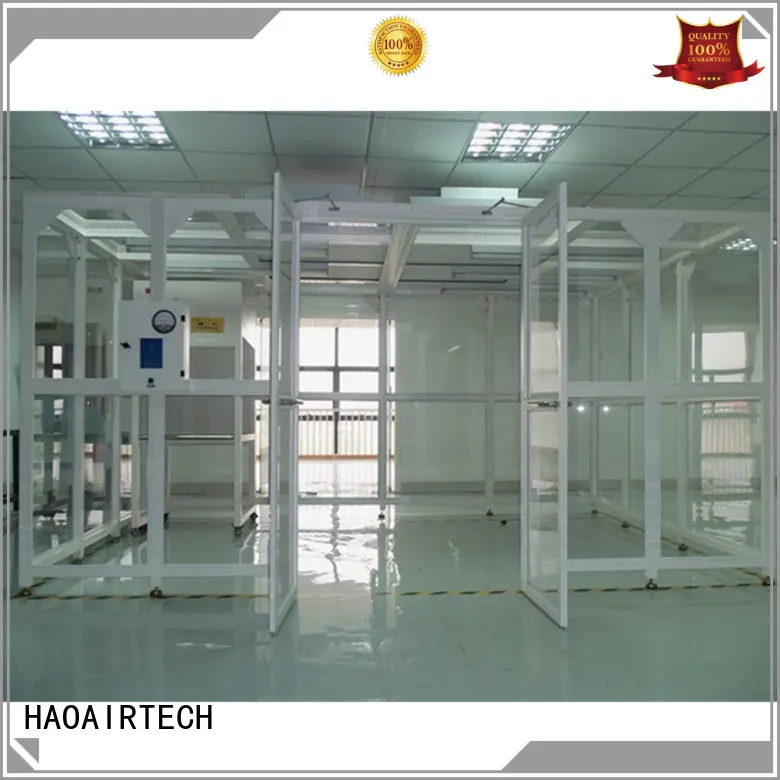

HAOAIRTECH clean room design with ffu online1 1
HAOAIRTECH clean room design with ffu online1 2
HAOAIRTECH clean room design with ffu online1 3
HAOAIRTECH clean room design with ffu online1 1
HAOAIRTECH clean room design with ffu online1 2
HAOAIRTECH clean room design with ffu online1 3

HAOAIRTECH clean room design with ffu online1

Brand:
HAOAIRTECH
Model number:
HA-MCR
Material:
Steel with powder coated 50x50mm
OEM /ODM:
OEM/ODM
Certificated:
CE
Start port:
Huangpu ,Guangzhou
Delivery time:
10 working days
MOQ:
1sets
Country of Original:
China
Supply ability:
100Squre/ month
Payment term:
T/T IN advance, 100% LC at sight
Application:
Clean room
Inquiry
Product Name
Laminar Flow Booth
Other Name
Clean booth
Guarantee Time
12 month
Purificaiton Rank
class 1000
Dimension
3000x3000x2590mm
Power Supplier
220V/ 50 or 60HZ
Company Advantages
1. HAOAIRTECH laminar flow clean room is precisely manufactured in accordance with industry set norms. The product dedicates to keeping a cleanliness class of 10000-300000
2. The product adds a sense of high-end elegant feeling to the places where it's placed. Modern people are fond of its simple yet practical design. The product will greatly improve the quality of factory-made products
3. This product is watertight and meets the International Standard for waterproofing. Its waterproof membrane or coating will prevent water droplets from penetrating through the fabric. The product assures an extremely high-efficient manufacturing process
4. It can retain its color perfectly. High-quality dyestuff and advanced dyeing technique are adopted to make the color stick tightly to the fabric. The product has passed strict air speed test
5. It comes with the desired durability. The testing is done by simulating the load-bearing during the expected full life span of a mattress. And the results show it is extremely durable under testing conditions. The product is widely used for high-end clean rooms of various manufacturers


HAOAIRTECH clean room design with ffu online1 4

Applications:

Food industry, aerospace, life sciences, biotechnology, medical devices, plastic injection module, electronics assembly or hospital pharmacy



Operating Features:


1: The ceiling enables flexible placement of fan filter unit, the empty bays cover by powder coated steel panels.
2: the construction utilizing full welded, reinforced, steel tubular sections. The frame is finished with an abrasion-resistance oven-baked powder coat, it is free-standing not require any suspending ceiling supports
3: the PVC anti-static curtain door allowing for easy passage of material and personnel in and out of the clean area. The curtain terminated at a specific distance above the floor to allow for exhaust of clean air out of the clean room.
4: Control box can rapid start up the fan filter unit and lighting.
5: Fan filter unit is the energy efficient external rotor motor design reduces operating costs and has extremely low noise and vibration levels, improving the working conditions in the clean room.
6: the high quality mini-pleats HEPA filter utilizing an improved mini-pleated separation technique to maximize surface area improves efficiency and extends the filter life.



Product Specification:

MODELHA-LFB2000HA-LFB3000HA-LFB4000HA-LFB5000

Ex size (mm)

(W*D*H)

2000X2000X25963000X3000X25964000X4000X25965000X5000X2596
In size (mm)1900x1900x22052900x2900x22053900x3900x22054900x4900x2205
Purification rankClass10-300,000(FS209E USA)
HEPA filterEfficiency : 99.99% @ 0.3um - 99.999% @ 0.12um (MPPS)
Pre-filterEfficiency : 85% @ 5um
Control systemPC control system / promised speed by control box
Pressure GaugeAmerican Dywer pressure
Noise<50-55 dB (test point distance is 1m)

Air velocity

(m3/h)

0.2-0.5m/s Adjustable (test point distance is 30cm)
Frame materialstainless steel/steel with power coated/Cast aluminum profile
Wall frameTempered glass / PVC anti-static curtain (option)
FanEBM Fan /Taiwan fan/ Domestic fan (option)
Power supplerAC110/220v 50HZ/60HZ


Basic Info:

Product NameSoftwall cleanroom/Softwall Modular Cleanrooms/Soft Wall Cleanroom
BrandOEM/ODM
MaterialSUS304,SUS201,SS304, Cold rolled plate
SizeCustomized
MOQ1 SET
Delivery Time7-15 working days
Shipping PortGuangzhou, Shenzhen, Shanghai
Warranty2 years
PackingPolywood packing
PaymentT/T,L/C, West Union, D/P, Cash

HAOAIRTECH clean room design with ffu online1 5


Company Features
1. With well-established quality control system, the quality of clean room design is 100% guaranteed.
2. It is our firm intention to increase product quality over the entire product life cycle. So we will strive towards sustainable improvement of the product quality system and further training of our employees.
