HAOAIRTECH clean room design enclosures online

Company Advantages
1. HAOAIRTECH clean room design is designed from a group of innovative engineers.
2. An application to a clean shed shows that clean room design is softwall clean room .
3. The product is very popular in oversea markets and has great market potentials.

Introduce:

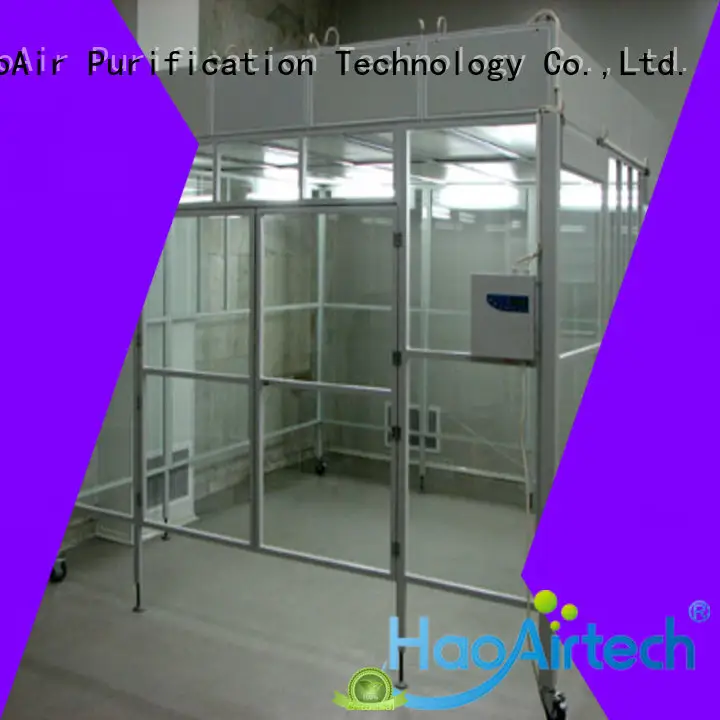

Haoairtech designed this as a portable solution to create a Class 10-100000 clean room environment without the high cost and constraints of a hard wall system.

It’s affordable, reliable, energy efficient and easy to assemble as well as disassemble.

         The prefabricated wiring system makes electrical hook-up simple with factory wired components and leg-mounted on/off switches for lights and filters.

         A single point electrical hook-up or heavy duty line cord (under 15 amps) are provided, which may eliminate the need for an expensive installation.



Product Features：

Purification Rank : Class10-class 10000

Fan filter unit with mini-pleats HEPA filter/ULPA filter( 99.995%@0.3um )

 Portable Clean room vertical laminar flow booth  Control box function  :

A: Control the power on/off

B: control the fan filter unit air speed  UP/Down

C: Control working area purification light

D: Control the UV light in working area

E:  Monitor differential gauge so that replacement HEPA filter in time.



Material : stainless steel 304 or steel with milk color powder coated

pressure Relief valve base one request



Products Parameter：



Item		Clean room vertical laminar flow booth
Purification   rank		Class   to class 100.000
Dimension   L*W*H		According client request
Fan   filter unit	Dimension	2x2,2x4,4x4  optional
	Structural   material	Stainless steel, aluminum alloy, AI-Zn   plate
	Power   supply	220V/50HZ AC
Air Filter		Mini-pleats HEPA /ULPA Air filter
Frame   material		Aluminum alloy/stainless steel201/304
Wall   material		Acrylic /sandwich panel/anti-static   acrylic
Ceiling		Aluminium –plastic panel , sandwich panel
Air   conditioner		Constant temperature air conditioning Or Constant temperature and humidity air   conditioning
Lighting		LED light or T5 (Optional )
air   shower		Optional
Pass   box		Optional
Air   flow floor		Optional

NOTE :

We have a wide range of configuration available to meet most cleanroom booth standards up to Class 10/ISO Class 4.

For Class 10/ISO Class 4 and Class 100/ISO Class 5 cleanliness level,

 100% laminar airflow is essential to prevent any deterioration of cleanliness caused by the present of non-laminar airflow.

At this cleanliness level, the ceiling must be totally covered by HEPA/ULPA filter and the lighting is usually tear-drop.

As the result, all particles come from the personnel , processes and equipment are immediately swept away from the clean area.

Where the ceiling is not fully covered, turbulent zones are present. In this cases,

particles introduced or present in the clean area are re-circulated and produce temporary deterioration of the cleanliness level.
