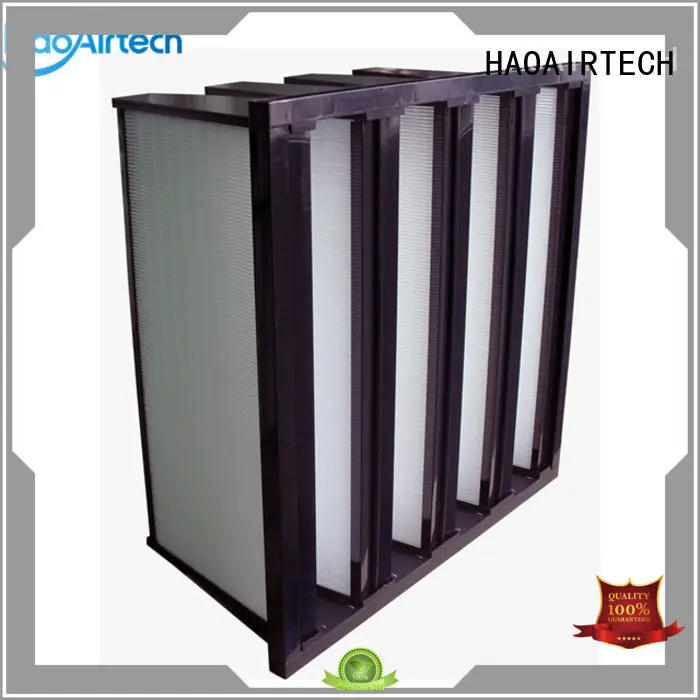

HAOAIRTECH Brand filter Rigid box filter 4v factory

Company Advantages
1. The aesthetic appearance of ridgid air filter is achieved by using quality materials and the latest technologies. With premium quality, the product is also fit for working under difficult operating conditions
2. hvac filter box provides added support for hvac air filter box. The product's rigid frame forestalls shrinking or bending.
3. The product features an energy-saving performance. HAOAIRTECH has set up specialized technical department, responsible for the pre-sale, sale and after-sale technical support and service.
4. The product focuses on the good physical conditions of the workers in the workshop. HAOAIRTECH can also guarantee the fast delivery time.

Products Characteristics:

Big air volume

Low Resistance

High dust holding capacity

ABS frame comply with Rosh test report

Both side with screen protect the media

PU gasket or EVA gasket for your choose .

 Introduction:

The media material is super glass fibre for 0.5um particulate

 It is patent technology to ensure the V type passage in low resistance.

 Neoprene /EVA prevent the air leaking in operation

ABS/PVC frame in 3V,4V,5V for your choose.

 Adopting the laser to scan the filter one by one ( MPPS)

 100 % provide the test report for each V Cell air filter

 Filtration Efficiency: F9.F8,F7,F6,(ASHAR ).

Applied to the terminal filtration of the air-condition filtration system

Products Parameter：

Dimension   (mm) (W*H*D)	Pack NO	Rate Air Flow  (m3/h)	Media Area (m2)	Dust Holding    (g)	Efficiency	Rate primary Resistance    (Pa)	Finally Resistance    (Pa)
592X287X292	4	2100	11.02	660	F7 65%@0.5um	<80Pa	300-350pa
592X490X292	4	3550	18.6	1200
592X592X292	4	4500	22.1	1350
610X610X292	5	5400	29	1750
592X287X292	4	2100	11.02	660	F8 85%@0.5um	<100pa	350-400pa
592X490X292	4	3550	18.6	1200
592X592X292	4	4500	22.1	1350
610X610X292	4	5400	29	1750
592X287X292	4	2100	11.02	660	F9 90%@0.5um	<120pa	400-450pa
592X490X292	4	3550	18.6	1200
592X592X292	4	4500	22.1	1350
610X610X292	5	5400	29	1750

Application:



1: Optical electronics, biological pharmaceuticals, medical laboratories, food and beverages, daily chemical semiconductors, precision instruments and other

   industries Pre filtration of central ventilation and air conditioning systems in ordinary industrial plants or cleanrooms

2: Ventilation and air conditioning systems for large civil buildings, such as office buildings,

3: Conference rooms, hospitals, shopping malls, gymnasiums, airports, etc.



Company Features
1. We are known for finding options that work. ridgid air filter
2. The high level of technology strength of Guangzhou HaoAir Purification Technology Co.,Ltd. makes Rigid box filter reliable in its performance.
3. At Guangzhou HaoAir Purification Technology Co.,Ltd., hvac filter box always comes first. Check now!
