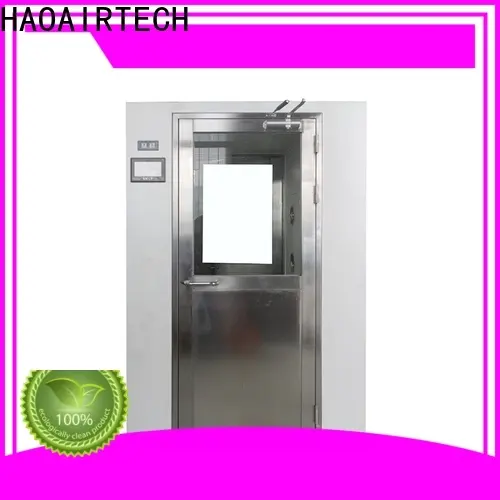

HAOAIRTECH air shower design with stainless steel for large scale semiconductor factory

Brand:
HAOAIR TECH
Model number:
HA-AS1400V Series
Material:
Coldrolled Steel with Baked Painting or Stainless steel 304/316
OEM /ODM:
OEM/ODM
Certificated:
CE,RoHS
Start port:
Guangzhou, Shenzhen, China port
Delivery time:
7-12 working days
MOQ:
1 unit
Country of Original:
China
Supply ability:
100-200 units per month
Payment term:
Western Union, T/T, L/C, D/P,D/A
Application:
Pharmacy Industry, Food Factory, Semi-conductor workshop
Inquiry
Company Advantages
1. The design of HAOAIRTECH automatic air shower takes several factors into consideration. Its electric parts are developed based on the knowledge of temperature field, electromagnetic field, and flow field. The product dedicates to keeping a cleanliness class of 10000-300000
2. The product ensures a clean supply of power. This will enhance the nation to maintain a clean environment as well as conserve a lot of energy. The product prevents airborne particles and microbes from entrance
3. air shower design is equipped with a super higher quality materials providing a maximum automatic air shower for users. The product features an energy-saving performance

Introduction:
Haoair Air Shower are an effective solution to reduce or even eliminate this type of contamination in order to protect the classification of the controlled enviroment.
Vertical Air Shower is a cabinet type air shower designed to eliminate the particle contamination of the external surfaces of personnel and materials entering into controlled areas.


Top Side Vertical Flow Air Shower General Features:

1.Two doors with tempered safety glass.
2.Door opening direction adjustable to the room requirements.
3.Indication of cycle running.
4.Remaining cycle time.
5.Cycle time adjustable by Administrator from 0-99 seconds (other values can be programmed at the factory).
6.Alarms for blower, ventilation system, clogged filter, entry door open, exit door open, etc.
7.Fully automatic operation with programmable microprocessor to control all functions of the shower.
8.Microprocessor control to differentiate between entering and leaving cycles.
9.LED state indication for doors and shower cycle.
10.Full blown air filtration through 2 mechanical filtration stages with G4 pre-filter and ultra-filtration by HEPA H14 absolute filters.


The air shower is approval by CE and RoHS certificate.
Customer’s design is available.


Top Side Vertical Flow Air Shower Specification:


Top Side Vertical Flow Air Shower HA-AS1400V Series

Model

HA-AS1400V1

HA-AS1400V2

HA-AS1400V3

Outer Si(mm) (WXDXH)

1400x1000x2180

1400x2000x2180

1400x3000x2180

Inner Size(mm)(WXDXH)

800x930x1910

800x1930x1910

800x2930x1910

Persons per cycle

1-2 person

2-4 person

3-6 person

Air shower duration

Factory set at 15 seconds (0-99 seconds adjustable)

Material

Coldrolled Steel with Baked Painting or Stainless steel 304/316

Fan consumption

1.1KWX1set

1.1KWX2sets

1.1KWX3sets

Air flow of fan(m3/h)

                  1300m3/h

Fan run (r/min)

2800r/min

Nozzle in stain less steel

     16 pcs

32 pcs

48 pcs

Wind speed(m/s)

                        25-30m/s

Noise level(dB)

               <62dB

LED Fluorescent Lamp

20wx1

20wx2

20wx3





HEPA Filter

Size(mm)

595X595X80mm(mini-pleats HEPA filter)

Efficiency

99.995%@0.3um

Resistance

<220pa





Pre-filter

Size(mm)

785x385x21mm

Efficiency

75% @ 5um

Resistance

<30 Pa

Power supply

380V/50Hz


Top Side Vertical Flow Air Shower Compared With Traditional Air Shower:

HAOAIRTECH air shower design with stainless steel for large scale semiconductor factory 4


Top Side Vertical Flow Air Shower Application:

HAOAIRTECH air shower design with stainless steel for large scale semiconductor factory 5
