HAOAIRTECH air filter hepa with one side gasket for electronic industry

Company Advantages
1. HAOAIRTECH air filter hepa is designed with a sense of aesthetic feeling. The design is carried out by our designers who aim to offer one-stop services of all clients' custom needs regarding interior style and design. Automatic operation is the highlight of the product
2. This product fulfills consumer demands with competitive advantages. A sample of the product can be offered for the confirmation of quality
3. air filter hepa has the advantages of hepa air filtration system , it may become the development trend in the field.
4. With reasonable price but favourable hepa air filtration system , air filter hepa is more appealing. With the shell galvanized, the product is crack-resistant and wear-resistant

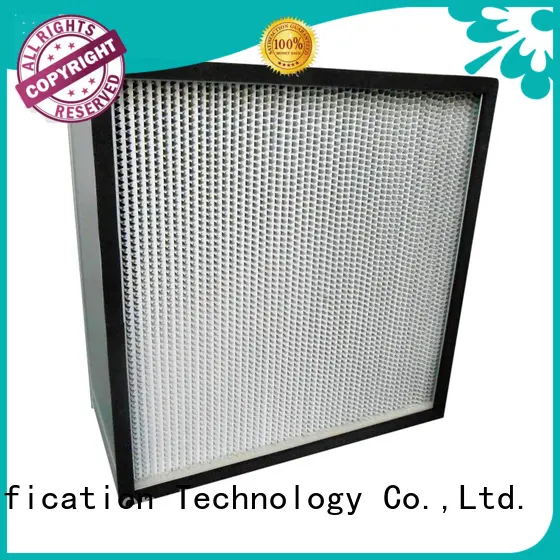

Absolute Heap air filter adopt the special design to keep the space between pleated layers by Clapboard. Corrugated aluminum spacers can accurately maintain the distance between the pleat layers, Maximum use of filter material under minimum resistance.

Media	Super glass fibre
Frame	AL/GL/MDF frame
Gasket	Neoprene /EVA or PU
Media    spacer	Hot melt
Frame thickness    (mm)	120/150/220
Clapboard	0.035mm aluminum foil
Efficiency	99.99%-99.999%@0.3um
Max    Temperature	80℃
Max    Humidity	80%

Dimension(mm)      (W*H*D)	Rate Air    Flow      (m3/h)	Media    Area      (m2)	Dust    Holding      (g)	Rate    primary Resistance(Pa)      (H13-H14)	Finally    Resistance (Pa)
484X484X120	450	4.4	230	220Pa	400-600pa
610X610X120	700	7.1	370
610X915X120	1050	10.6	560
610X1220X120	1400	14.1	740
484X484X150	600	6	320
610X610X150	1000	9.7	510
610X915X150	1500	14.5	770
610X1220X150	2000	19.3	1020
484X484X220	1000	9.8	600
610X610X220	1600	15.8	920
610X915X220	2300	23.7	1340
610X1220X220	3000	31.6	1750

Company Features
1. HAOAIRTECH has made achievements in the field of air filter hepa .
2. With a production certificate, we are authorized to manufacture and market products freely. Besides, this certificate supports the company entering into the market.
3. Client centricity, agility, team spirit, passion to perform, and integrity. These values are always at the core of our company. Inquire now!
