We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

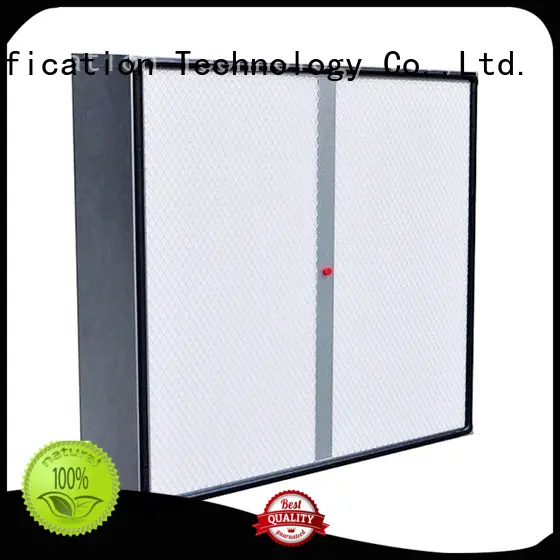

HAOAIRTECH absolute hepa filter h12 with big air volume for air cleaner
-
v s
1. HAOAIRTECH terminal hepa filter is tested to guarantee its safety. After it is completed, it will be placed in the electromagnetic field where features strong current and high voltage to check its stability and reliability.
2. This product can last for a long time. Its surface is coated with protective substances to prevent exterior chemical corrosion.
3. The popularity of hepa filter h12 also benefits from the mature sales network.
4. With the large-scale factory, HaoAir Purification has great manufacture capacity.
It is patent technology to ensure the V type passage in low resistance.
Neoprene /EVA or PU gasket prevent the air leaking in operation.
Aluminum or SUS Frame in 120mm and 150mm for choose.
While color metal screen to protect the filtration media without any damage.
Adopting the laser to scan the filter one by one (MPPS).
100 % provide the test report for each HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.95%-99.995%@0.3um
Applied to the terminal filtration of the air-condition filtration system
Media | Super glass fibre |
Frame | AL /SUS201/304 frame |
Gasket | Neoprene /EVA or PU |
Media spacer | Hot melt |
Frame thickness (mm) | 120/150mm |
Screen | Metal screen |
Efficiency | H13:99.97-99.99%@0.3um |
Max Temperature | 70℃ |
Max Humidity | 80% |
Dimension (mm) | Rate Air Flow | Media Area (m2) | Dust Holding | Rate primary | Finally |
Efficiency |
610X610X120 | 1000 | 11.32 | 680 |
H13 :<200Pa |
400-600pa |
H13-H14 |
915X610X120 | 1500 | 16.71 | 1000 | |||
1170X570X120 | 1800 | 19.79 | 1200 | |||
1220X610X120 | 2000 | 22.1 | 1350 | |||
610X610X150 | 1250 | 14.14 | 850 | |||
915X610X150 | 1900 | 20.88 | 1250 | |||
1170X570X150 | 2200 | 24.741 | 1500 | |||
1220X610X150 | 2500 | 27.63 | 1660 |
Application
Mini-pleats HEPA air filter suitable for hospital, electronic industry ,food,Pharmaceutical ,
bioengineering,precision instrument, electron semiconductors and dust-free room, national defense,aerospace field, fan filter unit, HEPA unit , air shower, dynamic pass box, dispensing booth ,softwall cleanroom, laminar flow booth and so on .
Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. is a professional manufacturer of high quality terminal hepa filter in the domestic market. We are an expert with years of experience.
2. The value of technical force is highly stressed in HAOAIRTECH for the quality of hepa filter h12 .
3. Guangzhou HaoAir Purification Technology Co.,Ltd. will help keep your business running at peak performance. Check now! To serve customers better, HAOAIRTECH has established its own service team. Check now!
