Application Scope
best hepa filters developed and produced by HaoAir is mainly applied to the following aspects.HaoAir is rich in industrial experience and is sensitive about customers' needs. We can provide comprehensive and one-stop solutions based on customers' actual situations.
Company Advantages1. The design processes of HAOAIRTECH best hepa filter are of professionalism. These processes include recognition of its need or purpose, selection of a possible mechanism, analysis of forces, material selection, design of elements (sizes and stresses), and detailed drawing.
2. The product is safe enough. The insulating material used not only protect against damage caused by static electricity but also avoids leakage.
3. The product has good light transmittance capacity. Made of premium photo-diffusion material, it has a good uniformity of illumination.
4. Manufactured using premium-grade raw material, this product has found its application in varied fields.
5. The price of this product is competitive and it is now widely used in the market.
Characteristics
Hepa air filter with DOP port used super glass fibre for 0.3um particulate.
It is patent technology to ensure the V type passage in low resistance.
Neoprene /EVA or PU gasket prevent the air leaking in operation.
Aluminum or SUS Frame in 120mm and 150mm for choose.
While color metal screen to protect the filtration media without any damage.
Adopting the laser to scan the filter one by one (MPPS).
100 % provide the test report for each HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.95%-99.995%@0.3um
Applied to the terminal filtration of the air-condition filtration system
/ Operating Conditions
Media | Super glass fibre |
Frame | AL /SUS201/304 frame |
Gasket | Neoprene /EVA or PU |
Media spacer | Hot melt |
Frame thickness (mm) | 120/150mm |
Screen | Metal screen |
Efficiency | H13:99.97-99.99%@0.3um H14: 99.995-99.999%@0.3um |
Max Temperature | 70℃ |
Max Humidity | 80% |
/ Products Parameter
Dimension (mm) (W*H*D) | Rate Air Flow (m3/h) | Media Area (m2) | Dust Holding (g) | Rate primary Resistance (Pa) | Finally Resistance (Pa) | Efficiency |
610X610X120 | 1000 | 11.32 | 680 | H13 :<200Pa
H14 :<220pa | 400-600pa | H13-H14 |
915X610X120 | 1500 | 16.71 | 1000 |
1170X570X120 | 1800 | 19.79 | 1200 |
1220X610X120 | 2000 | 22.1 | 1350 |
610X610X150 | 1250 | 14.14 | 850 |
915X610X150 | 1900 | 20.88 | 1250 |
1170X570X150 | 2200 | 24.741 | 1500 |
1220X610X150 | 2500 | 27.63 | 1660 |
/ Primary Resistance & Face Velocity Diagram
![h12 hepa filter for electronic industry HAOAIRTECH 12]()
/ Product Details
part.1

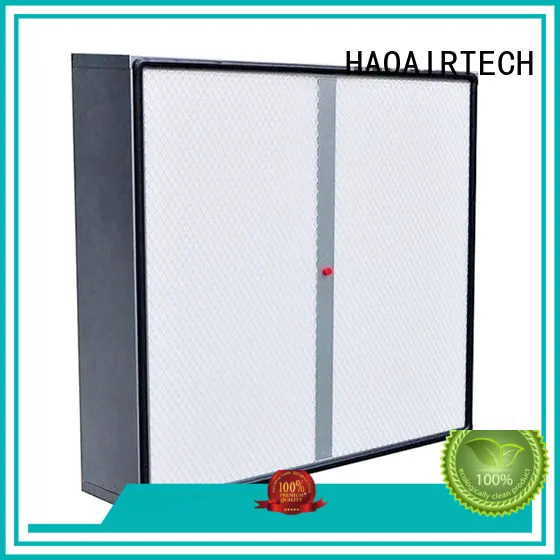

HEPA air filter with DOP Port
part.2
Mini-Pleats Media Compact
part.3
Air Filter Dust Detection Test
Application
Mini-pleats HEPA air filter suitable for hospital, electronic industry ,food,Pharmaceutical ,
bioengineering,precision instrument, electron semiconductors and dust-free room, national defense,aerospace field, fan filter unit, HEPA unit , air shower, dynamic pass box, dispensing booth ,softwall cleanroom, laminar flow booth and so on .
/ package
Company Features1. When it comes to h12 hepa filter , Guangzhou HaoAir Purification Technology Co.,Ltd. is always the first choice for customers.
2. ulpa filter made by HAOAIRTECH are ideal for best hepa filter purpose.
3. At Guangzhou HaoAir Purification Technology Co.,Ltd., best air hepa filter focuses on customer needs. Get info! Guangzhou HaoAir Purification Technology Co.,Ltd. keeps the business value of central air filters . Get info!
