gel seal air filter hepa with hood for air cleaner

Company Advantages
1. The shaping processes of HAOAIRTECH discount air hepa filters adopts four general production techniques including extrusion, calendering, coating or molding, and casting. It highly conforms to the dustless workshop management standard
2. Guangzhou HaoAir Purification Technology Co.,Ltd. has won the favor of the world's customers with its air filter hepa . The product is widely used for high-end clean rooms of various manufacturers
3. The product is not prone to forming bacteria on its surface. The materials used have long term antibacterial properties that reduce the potential for bacterial growth. Automatic operation is the highlight of the product

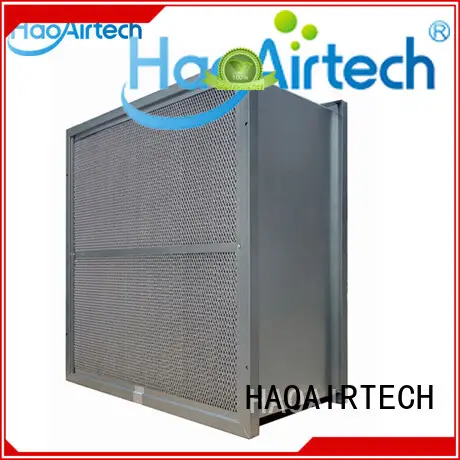

Extended Surface Box Filter

  Products Features:

      * Availble in three efficienies on 0.3micron size particles;(99.97% 99.99% HEPA)

        and 99.999% ULPA).

     *  Standard and high capacity models.

     * standard construction is galvanied steel cell sided or particle board cell sides.

     * multiple cell side options .

      * factory tested for efficiency and performance

Products Parameter：

Dimension   (mm) (W*H*D)	Rate Air   Flow   (m3/h)	Media   Area    (m2)	Dust   Holding    (g)	Rate   primary Resistance    (Pa)	Finally Resistance      (Pa)	Efficiency
289x594x150	675	4.3	261	<60	250-300	F6
594x594x150	1385	8.84	354
287x594x292	1490	9.52	571
594x594x292	3085	19.7	1185
289x594x150	675	4.3	261	<80	300-400	F7
594x594x150	1385	8.84	354
287x594x292	1490	9.52	571
594x594x292	3085	19.7	1185
289x594x150	675	4.3	261	<100	300-400	F8
594x594x150	1385	8.84	354
287x594x292	1490	9.52	571
594x594x292	3085	19.7	1185

 Introduce:

 Extended Surface Box Filter ASHRAE Rated Rigid Air Filter Offers High Efficiency Filtration,

And Is Designed For Use In “Variable Air Volume” And Turbulent Commerical Industrial Systems.

 Extended Surface Box Filter Method Of Sealing The Media Pack To The Supporting

Frame Prevents The Possibility Of Particulate Migration Around The Filter Media By Sealing The Media On All Four Sides.

The Extended Surface Box Filter's Robust Construction Enables It To Withstand

The Extraordinary Operating Parameters Associated With Centrifugal Compressors,

Gas Turbines And Engines Where Severe Pulsing And Surging Can Occur, In Either Airflow Direction.

The Extended Surface Box Filter HT (High Temperature) Filters Are Specially

 Designed For Applications That Demand High Efficiency Filtration In A High Temperature Environment,

Such As An Automotive Finishing Oven

Company Features
1. There are many production lines to ensure capacity and strict QC to ensure quality in Guangzhou HaoAir Purification Technology Co.,Ltd..
2. In our business, sustainability is an integral part of the entire product life cycle: through the use of raw materials and energy in the manufacturing process, through the use of our products by consumers, from the ideal state to the final disposal.
