We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.
fan fan filter unit with internal fan for for non uniform clean rooms
- HaoAir is committed to providing customers with excellent, advanced and professional services. In this way can we improve their trust and satisfaction with our company.
1. air filter fan has trickled in fan filter unit market as a hot product.
2. The product is gentle for fragile and sensitive pool surface. It is specifically designed with soft cleaning function to protect the floor.
3. The product has a robust construction. Its metal parts, such as housing, are made of superior quality that can withstand abrasion and impact.
4. Concentrating on the quality assurance of fan filter unit turns out to be helpful for the development of HAOAIRTECH.
5. If necessary, Guangzhou HaoAir Purification Technology Co.,Ltd. can offer professional suggestions and comments on fan filter unit .
Cleanroom Terminal filtration unit.
Compact with central air-conditioning.
Mini-pleats HEPA air filter efficiency 99.99%@0.3um
Steel with milk powder coated cabinet
Suitable for use in cleanliness class 10000-300000 cleanroom.
Airflow distribution is uniform, with airflow diffusion mesh inside
Guarantee the air speed of airflow and prevent the generation of eddy current.
Expansion is convenient and can be arranged according to cleanliness grade or quantity of heat dissipation, Compact structure , reliable sealing performance.
Introduction

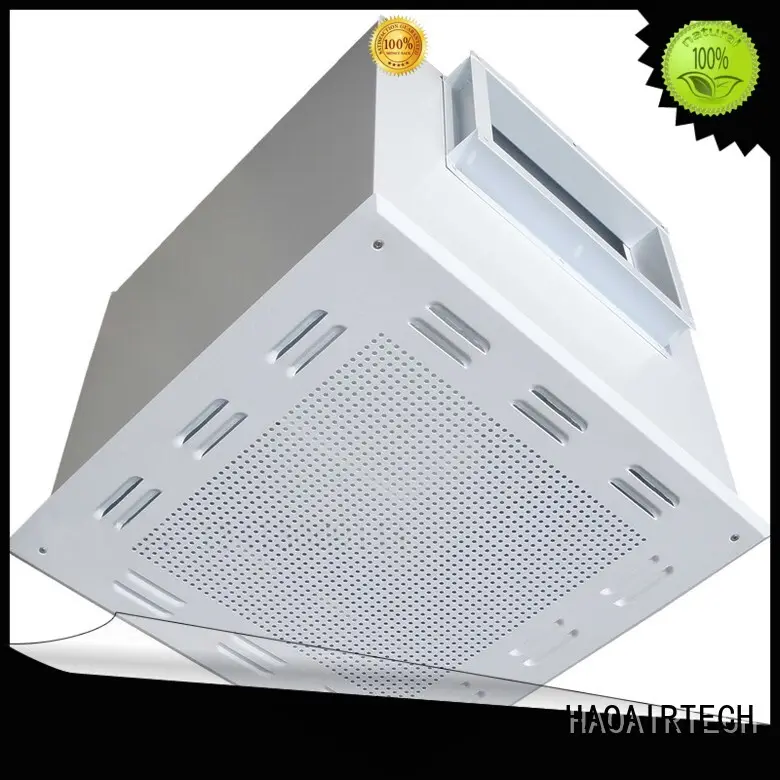

The HEPA air filter unit box is used as the terminal filter device fixed in class1000-300000 clean rooms ceiling. The difference between FFU and HEPA Unit is that the efficient air supply outlet has no motor power and needs to rely on the central air conditioning system to supply air to achieve indoor air circulation
It is the key equipment to meet the purification requirements.
Model | Install size | Filter size | Flange size | Air flow | |
Tube on top | Tube on side | (BXAXH)mm | (H13) | (mm) | M3/h |
KLCAC320C | 390x390x380 | 320X320X96 | 200x200/￠300 | 500 | |
KLCAC484C | 554x554x380 | 484X484X96 | 200x320/￠300 | 1000 | |
KLCAC680C | 680x680x380 | 610X610X96 | 200x400/￠300 | 1500 | |
KLCAC985C | 680x985x380 | 610X915X96 | 200x500/￠300 | 2000 | |
KLCAC1290C | 680x1290x380 | 610x1220x96 | 300x500/￠300 | 3000 | |
Customer size is availble.
Illustration :
1: Flange 2: Ring 3: Air duct diffuser 4: DOP/PAO Test port 5: HEPA filter 6 :gel-sealant glue 7: Diffuser Plate
Light weight, High efficiency, Beautiful appearance.
The diffuser material can be stainless steel or steel with powder coated.
Hepa Filter Unit Box as cleanroom finally air filtration equipment, It including the plenum chamber，HEPA air filter, flanger , diffuer plate .
Application
It is suitable for non-uniform clean rooms of various grades and roof structures.Its main purpose is to filter the terminal air of air supply system of air conditioning box in clean rooms.
It can also be directly installed on the ceiling of the clean room as a terminal filter device, which can be used to renovate or build the terminal air filter equipment of 1000, 10000, 100000
and all levels of clean rooms to meet the purification requirements of the key equipment
/ Certificated
Our Service
1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
