We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

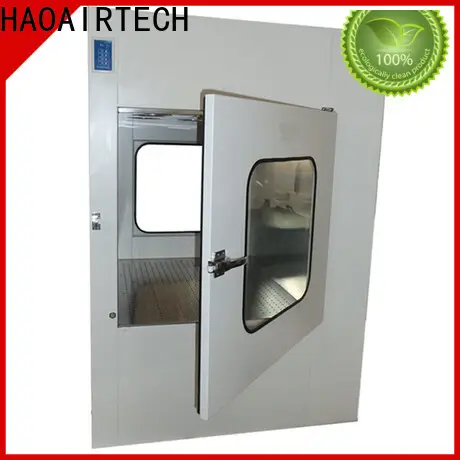

electronic pass box clean room with arc design gmp standard for hvac system 1
electronic pass box clean room with arc design gmp standard for hvac system 2
electronic pass box clean room with arc design gmp standard for hvac system 3
electronic pass box clean room with arc design gmp standard for hvac system 1
electronic pass box clean room with arc design gmp standard for hvac system 2
electronic pass box clean room with arc design gmp standard for hvac system 3

electronic pass box clean room with arc design gmp standard for hvac system

Brand:
haoairtech
Model number:
HA-ASPB500
Material:
1: Entirety Sus304.(T=1.2/1.5mm) 2: Entirety Sus201.(T=1.2/1.5mm) 3: External is steel with power coated, Internal is SUS304(T=1.2/1.5mm) 4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm)
OEM /ODM:
OEM /ODM
Certificated:
CE
Start port:
GUANGZHOU
Delivery time:
10 days
MOQ:
1 set
Inquiry
Product Name
Haoairtech
Other Name
pass box
Guarantee Time
12 month

Clean Room Equipment Pass Box with Air Shower

Introduce:


The Pass Box is a device that is arranged between the clean room entrance and exit or different cleanliness level rooms to block the indoor and outdoor airflow when the goods are delivered, so as to prevent polluted air from entering the clean area and causing cross-contamination. When the air showering pass box conveys the material, the top part blows out the high-speed, clean airflow, and blows off the dust particles on the surface of the cargo. At this time, the doors on both sides can be opened or closed, and the clean airflow acts as an air brake to ensure the outdoor of the clean room. Air does not affect the cleanliness of the room. A special sealing strip is installed on the inner side of the door on both sides of the pass box to ensure the airtightness of the pass box.


Purifying transfer window may transfer materials, equipment and tools under the protection of Class A environment. Materials, equipments or tools which have been purified may be delivered to the aseptic area, mainly from Class C area to Class B area. As to user's demand, the purifying transfer window can be equipped with UV germicidal lamp or ozone generator sterilization system.



Principle of Using

One-side opening door
Since all the pass boxes are equipped with interlocking devices, the door of the pass box can only be opened on one side and closed on the other. Open the door of the pass box(if the other side of the door is not closed, you can't open it), put the material to be transferred into the pass box, close the door of the pass box, and the other operator opens the door and takes out the material in the pass box. , close the door of the pass box.



Pass box is a corollary equipment of clean booth and clean factory, which mainly used to pass small articles between non-clean and clean zone or low cleanliness degree zone and high cleanliness degree zone. It can remove the dust on the surface of articles. Meanwhile, this pass box can also prevent unpurified air get into clean zone.


Products Parameter:

MODEL

HA-ASPB500

External size (mm)
(W*D*H)

850x500x1350mm

Work zone (mm)
(W*D*H)

500x500x500mm

Nozzle

4 PCS

Air speed

18-25m/s

Per-filter

425x275x17mm

G3

HEPA filter

360x360x69mm

99.99%@0.3um H13

Optional accessories

1: UV light. 2: Interphone 3:Differential pressure gauge 4: Roller

Power supply

0.75KW 380V/50HZ

packing size (mm)

1050x780x1600mm

1100x880x1700mm

1240x1030x1850mm

Packing material

Standard Export Poly wood Packing(Fumigant free material)




Air Shower Pass Box:


Air shower pass box Bottom:




Air Shower Pass Box Top Nozzle:
