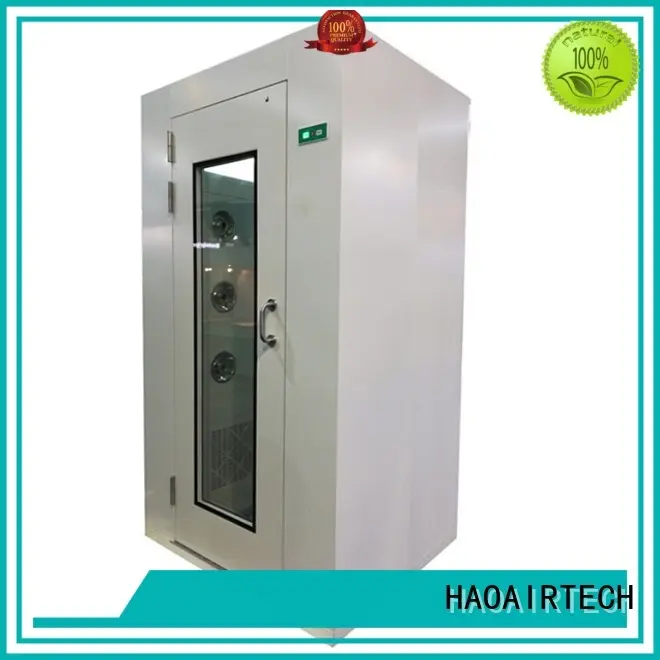

dynamic air shower design with stainless steel for forklift

Company Advantages
1. The raw material of HAOAIRTECH air shower unit meets the requirements of overseas technology.
2. Practice has shown that the products developed by Guangzhou HaoAir Purification Technology Co.,Ltd. have played a significant role in air shower design field.
3. air shower design endows with excellent technique and stable quality.
4. The product is able to ease the burden on the feet during walking. It is effective in relieving foot fatigue and pain caused by long-time walking and standing.



Introduction:
Air Showers is an equipment providing cleanliness for personnel, equipment and supply carts.
Nozzles jet out high-velocity and filtered air to remove stubborn particles from surfaces.

Configuration Features:
1.Microprocessor control system.
2.LCD display.
3.The air shower room duration time 0-99s adjustable.
4.Emergency button for emergency situation.
5.99.99%@0.3μm, efficiency can reach 99.99%@0.3μm with Pre filter and HEPA filter.
6.Unified specifications, easy to modify, can be customized per request.

Application:

Air shower is widely used in LCD and opto electronic display, PCB, microelectronics, dust-free coating, aseptic packaging, medical care, Pharmacy, auto glass and precision parts.

The air shower is approval by CE and RoHS certificate.
Customer’s design is available.

Air shower specification:

Clean room air shower HA-AS1200P Series
Model		HA-AS1200P1	HA-AS1200P2	HA-AS1200P3
Outer Si(mm) (WXDXH)		1200x1000x2180	1200x2000x2180	1200x3000x2180
Inner Size(mm)(WXDXH)		800x930x1910	800x1930x1910	800x2930x1910
Persons per cycle		1-2 person	2-4 person	3-6 person
Air shower duration		Factory set at 15 seconds (0-99 seconds adjustable)
Material		Coldrolled Steel with Baked Painting or Stainless steel 304/316
Fan consumption		0.75KWX1 set	0.75KWX2 sets	0.75KWX3sets
Air flow of fan(m3/h)		1300m3/h
Fan run (r/min)		2800r/min
Nozzle in stain less steel		12 pcs	24 pcs	36pcs
Wind speed(m/s)		> 22-27m/s
Noise level(dB)		<62dB
LED Fluorescent Lamp		20wx1	20wx2	20wx3
HEPA Filter	Size(mm)	630X630X69mm
	Efficiency	99.99%@0.3um
	Resistance	<220pa
Pre-filter	Size(mm)	785x385x21
	Efficiency	75% @ 5um
	Resistance	<30 Pa
Power supply		380V/50Hz

Air shower room product details:

Customized clean room air shower photos:







Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd.'s production ability for air shower unit is in a leading position in the domestic market.
2. HAOAIRTECH has been qualified with high technology to manufacture air shower design .
3. We have formulated policies to support our sustainability work. We will ensure that high-quality production and safe working conditions across the value chain. As a company bears social responsibility, we aim to conserve resources and minimize our environmental impact in all of our activities.
