disposable h14 hepa filter with one side gasket for electronic industry

Company Advantages
1. This product is reliable, efficient, attractive, has flawless finishing and so many qualities.
2. It resists tearing because it is well designed and constructed. The seams of this garment are strong and they will not pull apart easily.
3. The product features low internal impedance. The surface of its conductive substrate has been treated to enhance its static conductivity and collect microcurrent of the active material.
4. Guangzhou HaoAir Purification Technology Co.,Ltd. has made hard work and progressive development since foundation.

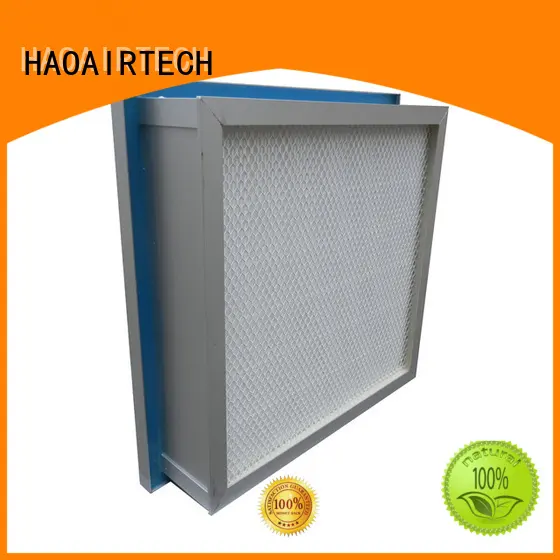

Hospital Gel Sealant HEPA Filter

Features:
1. Light weight, economic cost
2. Disposable products, environmentally.
3. Low resistance, large filter area and air volume
4. Cardboard frame with special process, with long working time.
5. Thickness available:69mm, 93mm, 96mm,etc.

Introduce :

       Common Applications: Filtering 0.3 microns or less suspended particles in the air, it is widely used in the terminal filtration of the civil or industrial cleaner places requiring a higher

                                          degree of cleanliness such as electronics, semiconductor, precision machinery, pharmaceuticals, hospitals, food etc.

           Features:  Adopting the superfine fiberglass filter paper as the media, separated by hot melt adhesive and fiberglass thread, sealed by top quantity gel seal,

                              aluminum alloy frame with combined spray protection network both in the outlet and inlet side to protect filter paper. Low loss, high efficiency, light weight,

                              it is tested precisely one by one.
                            Frame: Aluminum

                           Temperature resistance: 80 ℃

Products Parameter：

Cabinet size    (mm) (W*H*D)	Rate Air Flow   (m3/h)	Media Area    (m2)	Dust Holding    (g)	Rate primary Resistance    (Pa)	Finally Resistance    (Pa)	Efficiency
510X510X69	600	6.6	400	<200pa	400-600pa	H13-H14
636X636X69	1000	10.7	650
596X1196X69	1800	18.3	1100
636X1236X69	2100	21.3	1000
346X346X93	400	4.2	250
510X510X93	900	9.42	565
636X636X93	1500	14.9	900
636X941X93	2000	22.3	1200
626X1226X93	2800	29.8	1800
621X621X93	1380	14.19	851
636X1246X93	2800	29.8	1800
596X1196X93	2550	26.28	1577
656X994X93	2350	24.15	1449
350X350X96	500	4.68	300
514X514X96	1000	10.62	650
640X640X96	1500	16.8	1000
