dispensing unit iso5 down HAOAIRTECH Brand dispensing booth
Brand:
HAOAIRTECH
Model number:
HA-DB-B Series
Material:
inside and outside is stainless steel304 (t=1.0mm)
OEM /ODM:
Yes
Certificated:
CE and Rosh
Start port:
Guangzhou
Delivery time:
8 working days after we get the deposit.
MOQ:
1sets
Country of Original:
China
Supply ability:
50 set/one month
Payment term:
T/T , L/C , Western union
Application:
Worker in Clean room
Application Scope
's pass box is available in a wide range of applications. is dedicated to solving your problems and providing you with one-stop and comprehensive solutions.
Enterprise Strength
- has a professional team with excellent business skills and strong comprehensive quality. We strive to achieve rapid development by giving full play to each member's potential.
- Customer's needs first, user experience first, corporate success begins with good market reputation and the service relates to future development. In order to be invincible in the fierce competition, constantly improves service mechanism and strengthen the ability to provide quality services.
- will always follow the enterprise spirit which is to be practical, diligent and innovative. And we run our business with a focus on mutual benefit and cooperation. We continuously improve the market share and brand awareness. Our goal is to build a first-class brand in the industry.
- After years of exploration, obtains rich industry experience and good reputation in the industry.
- has a mature production system. The products are exported to all parts of the world.
1. The production team with extensive expertise and industry knowledge ensure the production of HAOAIRTECH dispensing unit is carried out efficiently and precisely. The product creates a clean environment to reduce allergy and asthma symptoms
2. HAOAIRTECH dispensing booth is highlighted with dust containment booth. It has low noise and high mobility.
3. With the shell galvanized, the product is crack-resistant and wear-resistant. comprehensive sales network helps HAOAIRTECH win more customers.
Product Features
LCD touchable screen display with air speed control
Negative Pressure Laminar Flow
GMP Modular design with minimized joints and seams.
Purification rank: Class100 /ISO5
Air speed: 0.45m/s+_20%
10% Exhaust air leaking (Adjustable)
Negative Pressure Laminar Flow
GMP Modular design with minimized joints and seams.
Energy Efficient high air volume fan to minimize operating cost,
5 different filters configuration available utilizing combination of G4,F8.H13,H14 and PLF Screens .
Gel sealant HEPA Air Filter(99.995%@0.3um) for high purification rankPurification rank: Class100 /ISO5
Air speed: 0.45m/s+_20%
10% Exhaust air leaking (Adjustable)

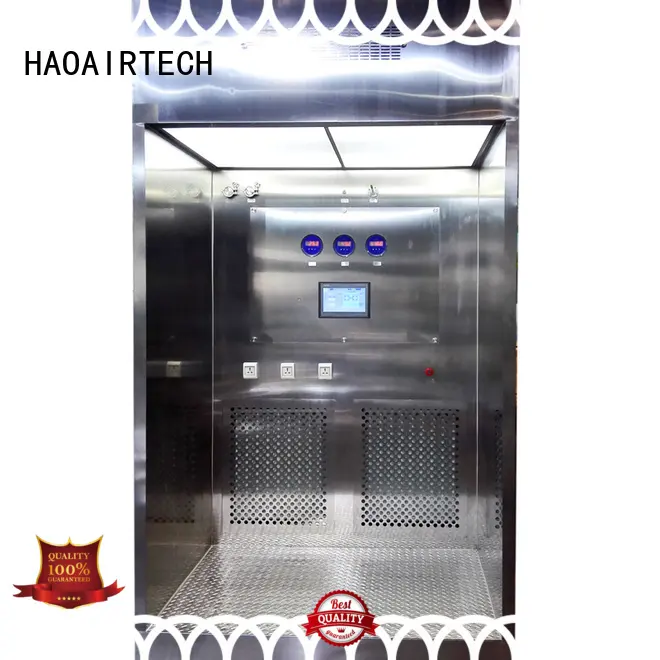

Introduction
Down Flow Booth provide operator, process and product protection by utilizing HEPA filtered unidirectional laminar air flow booth to maintain an ISO5 environment at rest within the work zone and capture particulates during open handling processes .
/ Products Parameter
MODEL | HA-DB1000 | HA-DB1500 | HA-DB2000 |
External size (mm) | 1200x1500x2400mm | 1500x1700x2400mm | 2000x1800x2400mm |
Work zone (mm) | 1100x1200x2000mm | 1400x1200x2000mm | 1900x1300x2000mm |
Purification rank | Class 100(ISO5) | ||
Air speed | 0.45m/s +_20% | ||
Material（Option） | 1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm) | ||
Control system | 1: LCD touchable screen display with air speed adjustable and constant temperature and constant humidity data check. | ||
Noise level(dB) | <65dB | ||
Filter step | 3 Step | ||
HEPA filter | 99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter | ||
Secondary filter | F8 pocket air filter | ||
Pre-filter Efficiency | G4 Z-Line panel air filter | ||
Power supply | 380V/50HZ OR 220V/50HZ | ||
Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
/ Specification
/ Product Details
part.2
Downflow booth
part.3
Air speed Test
Application
Down Flow Booth is designed such that through the different configurations it can be applied but not limited to the follow field : food ,electronic, robotic, nutraceutical, animal , cosmetic , biological , and pharmaceutical .
Per filter
/ Certificated
/ Our Service
Our Service
1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
Company Features
1. By an integration of design, manufacture, sales and service, HAOAIRTECH provides the highest quality dispensing booth with a favoured price.
2. The dispensing unit technology has become Guangzhou HaoAir Purification Technology Co.,Ltd.'s core competitiveness.
3. The service theory of dust containment booth in Guangzhou HaoAir Purification Technology Co.,Ltd. emphasize on sample booth design. Welcome to visit our factory!
