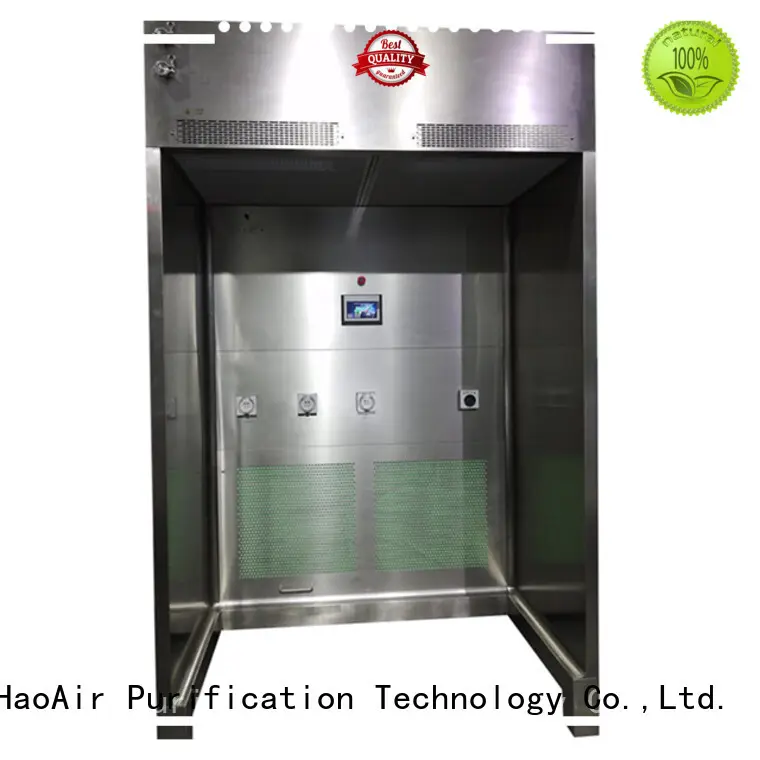

dispensing booth pharmaceutical industries good selling for pharmaceutical factory HAOAIRTECH

Company Advantages
1. The fabrication of HAOAIRTECH dispensing booth pharmaceutical industries adopts high-grade raw materials selected from reputable vendors.
2. It has adequate crease-resistance. The reason is partly chemical, which is determined by the fiber used, and partly mechanical, which is determined by the yarn and fabric construction.
3. The product has a fine tenacity. It can withstand the influence of exterior force such as incision, peening, bending, and pulling.
4. Guangzhou HaoAir Purification Technology Co.,Ltd. pursues meticulous production and has made careful calculations on management.

Introduction:



Sampling Booth has been designed to provide a Class 100 working environment at rest, with built-in scavenging system to ensure protection for the product, operator and surrounding environment

Product Features：

Imported Mini-pleat HEPA Filter with hot melt technology, which conforms to EU 13 Grade, with an efficiency rating better than 99.99% for 0.3μ at exhaust position

haoairtech make pre-filter which conforms to EU 4 Grade, with efficiency of 90% down to 10µ. These Filters are basically made from micro-fibre-glass media and are inherently washable

haoairtech make Intermediate filter which conforms to EU 7 Grade, with efficiency of 95% down to 3µ. These Filters are basically made from micro-fibre-glass media and are inherently washable

Motor Blower provided are statically and dynamically balanced, Supply of sufficient capacity and static pressure is used to take care of airflow requirement for entire life of HEPA.

The blower is high-performance, noise abated, light weighted statically and dynamically balanced

SS 304 Double Walled Side Panels

Mechanical Differential Pressure Gauge (0mm-25mm: 2 Nos.) to monitor pressure drop across intermediate filter

Photohelic Differential Pressure Gauge HEPA filter and  (0mm-10mm: 1 No.)

To monitor pressure drop across PRE Filter with respect to ambient

Electrical control panel mounted on the side panel of the unit

Tube Light

ON/OFF Switches for motor

5/15 Amp single-phase switch socket for external equipment

DOP Test port at upstream of HEPA filter



Products Parameter：

MODEL	HA-DB1000	HA-DB1500	HA-DB2000
External size (mm) (W*D*H)	1200x1500x2400mm	1500x1700x2400mm	2000x1800x2400mm
Work zone (mm) (W*D*H)	1100x1200x2000mm	1400x1200x2000mm	1900x1300x2000mm
Purification rank	Class 100(ISO5)
Air speed	0.45m/s +_20%
Material （Option）	1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm) 2: External and internal side is steel   with power coated. (T=1.2/1.5mm)
Control system	1: Air Speed according to frequency   converter control .   2: Gel Sealant High Efficiency HEPA air   filter for high purification rank 3: Wind speed detection, Constant   temperature and constant humidity  Detector according to client request install      4: DOP/PAO Port and differential Pressure   Guage for HEPA /secondary filter so that remind of you change the air filter   in time 5: 5 different filter configuration   available utilizing combination of G4,F8.H13,H14 and PLF Screens . 6; GMP Modular design with minimized   joints and seams. 7: PVC strip curtains available 8; Energy Efficient high air volume fan to   minimize operating cost,
Noise level(dB)	<65dB
Filter step	3 Step
HEPA filter	99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter
Secondary filter	F8 pocket air filter
Pre-filter Efficiency	G4 Z-Line panel air filter
Power supply	380V/50HZ  OR 220V/50HZ
Packing   material	Standard Export Poly wood Packing(Fumigant free material)

Application:

 Sampling booth is designed such that through the different configurations it can be applied  but not limited to the follow field : food ,electronic, robotic, nutraceutical, animal , cosmetic , biological , and pharmaceutical .

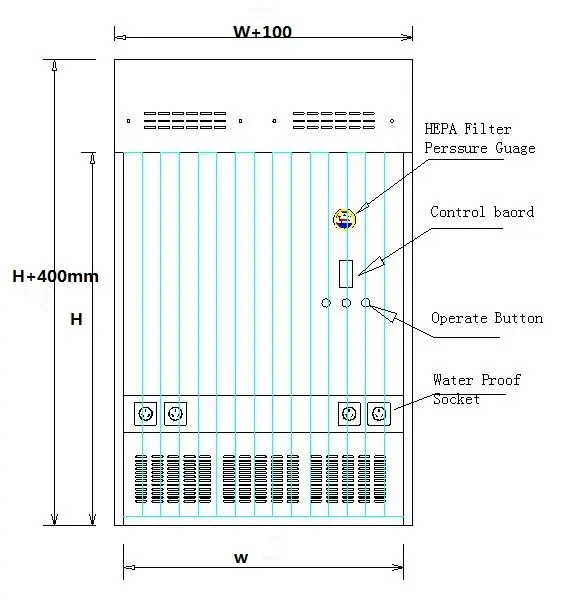

Draw :

Company Features
1. As an outstanding producer of weighing booth , Guangzhou HaoAir Purification Technology Co.,Ltd. is popular among customers.
2. Guangzhou HaoAir Purification Technology Co.,Ltd. has established large-scale bases for powder dispensing booth.
3. Company vision: To become the best supplier of sampling booth . Inquire! Guangzhou HaoAir Purification Technology Co.,Ltd. never let you pay more than you need. Inquire! We are abundantly experienced in manufacturing dispensing booth . Inquire! We can supply a abundant of downflow booth with high quality. Inquire!
