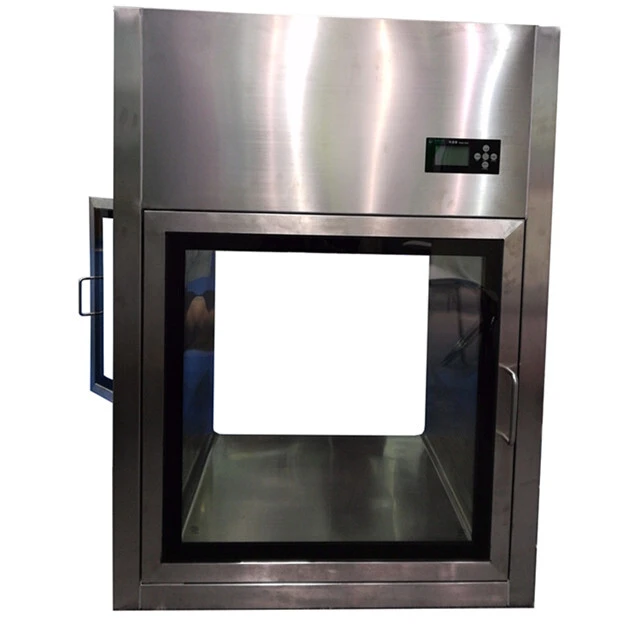

    Design Dynamic Pass Box



       Features:

    • ISO/CE certified

    • Interlocking system

    • UV light with Timer

    • Magnehelic

    • gauge

    • Low noise less than 60db

    • SS construction for chemical and rustproof

    • Buzzer indication for material transfers

    • The magnetic locking system on doors


        We design dynamic pass box equipment in complete Stainless steel 304 with an interlocking system, UV light, Illumination light, Fan Motor, 0.3 microns HEPA filter & pre-filters. Hepa Filters are suction filters made as per European standards to prevent any kind of cross-contamination. The interlocking system will give the advantage of opening one door at a time during the pass-through of material. Class 100 & Class 1 cleanroom users always prefer a dynamic pass box instead of a static pass box.

    Design Dynamic Pass Boxes 2


    Products Parameter

    ModelHA-DPB
    Design typeDynamic
    Cleanliness levelClass 100
    Internal Dimension2 x 2 x 2 Ft.


    3 x 3 x 3 Ft.

    4 x 3 x 3 Ft.

    ConstructionSS 304
    IlluminationPhilips LED
    Air systemMS Blower
    Filters The HEPA filter (99.97%)0.3 microns-filters (95% down to 5 microns)
    Door Interlocking Doors with Glass view Window
    Standard FittingsLight indicators for door Handles & hinges UV light
    Power supply220 V +/- 10%  ,  50/60 Hz



    Applications: Pharmaceutical Industries, Food Processing Industry. Semiconductor Industry, Chemical Laboratories, Electronics Industry
