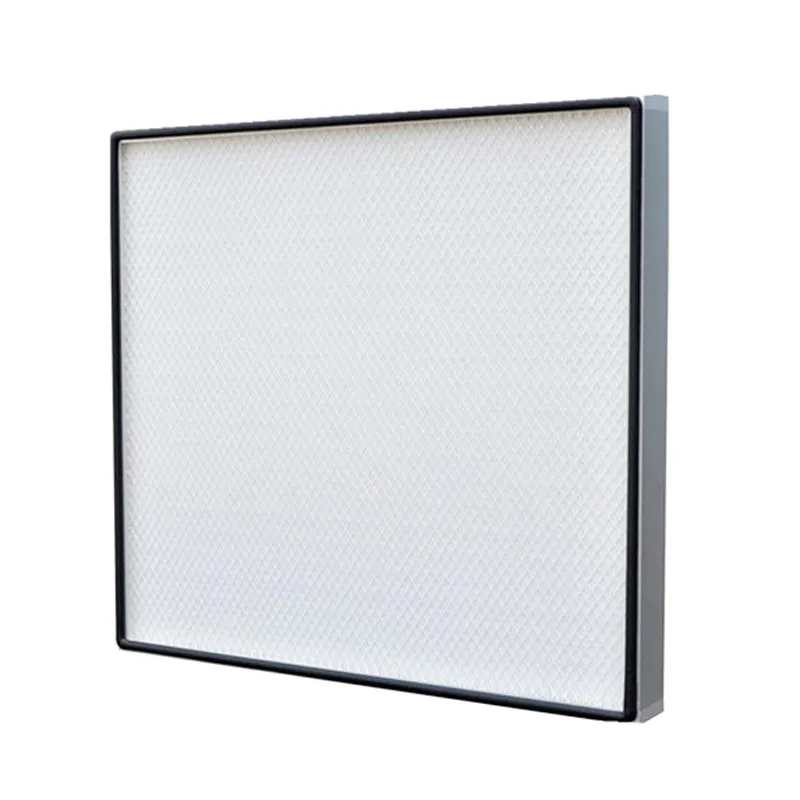

Custom big aluminum hepa filter manufacturers HAOAIRTECH absolute
1. The newly launched products by Guangzhou HaoAir Purification Technology Co.,Ltd. were all completed by the internationally renowned design company. The product assures an extremely high-efficient manufacturing process
2. All relative certificates to guarantee quality will be provided by Guangzhou HaoAir Purification Technology Co.,Ltd.. It highly conforms to the dustless workshop management standard
3. It acts as an indispensable part in a dustfree production line, HAOAIRTECH Is Company Specialized In The Manufacture And Export Of hepa filter manufacturers For Several Years.
4. The product has passed strict air speed test. An application to a best hepa air filter shows that hepa air filter,hvac hepa filter is hepa filter for cleanroom.
5. Made of high quality hepa room filter and applied advanced technology, custom hepa filter can be of great performance. The product focuses on the good physical conditions of the workers in the workshop
It is patent technology to ensure the V type passage in low resistance.
Neoprene /EVA or PU gasket prevent the air leaking in operation
Extrude and anodized aluminum frame in 50mm, 69mm, 80mm, 90mm for choose.
While color metal screen to protect the filtration media without any damage.
Light weight and easy to install
Adopting the laser to scan the filter one by one ( MPPS).
100 % provide the test report for each mini-pleats ULPA air filter
Filtration Efficiency: U15 ,U16, U17.(EN1822). 99.9995%-99.99995%@0.12um
Applied to the terminal filtration of the air-condition filtration system
Media | America HV Super glass fibre |
Frame | AL/GL/SUS201/304 frame |
Gasket | Neoprene /EVA or PU |
Media spacer | Hot melt |
Frame thickness (mm) | 46/50/69/80/90/96/120 |
Screen | Metal screen |
Efficiency | >99.9995%-99.99995%@0.12um |
Max Temperature | 70℃ |
Max Humidity | 100% |
Dimension(mm) | Rate Air Flow | Media Area | Dust Holding | Rate primary | Finally | Efficiency |
320X320X50 | 120 | 2 | 130 |
<200Pa |
400-600pa |
U15-U17 |
484X484X50 | 300 | 4.5 | 300 | |||
610X610X50 | 500 | 7.1 | 428 | |||
915X610X50 | 730 | 10.6 | 635 | |||
1220X610X50 | 980 | 14 | 842 | |||
305X305X69 | 150 | 2.9 | 173 | |||
484X484X69 | 400 | 6.5 | 393 | |||
610X610X69 | 600 | 10.3 | 622 | |||
915X610X69 | 900 | 15.4 | 923 | |||
1220X610X69 | 1200 | 20.4 | 1224 |
Application
Mini-Pleats ULPA air filter suitable for air cleaner ,dust colletor hospital, electronic industry ,food,Pharmaceutical ,bio-engineering,precision instrument, electron semiconductors and dust-free room, national defense,aerospace field and so on .
Our Service
1: 100% scann air leaking test for each Mini-PleatsHEPA air flter, test report accompany all of
HEPA air filter.
2: 2 pcs in one carton .each air filter warp by PE Bag .
3: Small order is polywood packing so that we can send out by sea in LCL.
4: If order amount more than 20000USD, We accept the 100% LC at sight against with
document.
5: Free sample possible for you confirmation of quality .
