We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

Cleanroom SUS304 Pass Box Transfer Through Window 1
Cleanroom SUS304 Pass Box Transfer Through Window 1

Cleanroom SUS304 Pass Box Transfer Through Window

    oops...!

    no product data.

    Go to homepage
    Product Name
    Haoairtech
    Other Name
    pass box
    Guarantee Time
    12 month

    Cleanroom SUS304 pass box Transfer Through Window


    Introduction

    In pharmaceuticals fabricating offices, it is basic to limit man/material development and keep away from cross pollution between various characterized territories to accomplish wanted characterization and to keep up respectability of items and procedures. Pass Box is intended to permit material exchange without much work force development. It likewise helps controlling entrance of particulate contaminants into clean room and between various arranged territories.


    Pass Boxes for the transfer of materials in controlled contamination environments built with coplanar glass doors and radiused aluminium profiles, mechanical or electronic access management system. The Padana Cleanroom pass-box integrates perfectly into walls and can be supplied as an independent unit with interlock, filter, fan and lamps or as a unit that connects to existing utilities.


    We makes Static and Dynamic Pass Boxes meeting the client particular necessities and to the most astounding measures. Choice of picking the sort of pass box relies upon the control level and exchange of material from one class of neatness to different class of tidiness. We likewise supply the pass boxes reasonable for fire verification regions.





    Features:


    1. Cold steel material or SUS201/304
    2. The internal circular plate chamfering processing, no dead angle
    3. Embedded ultraviolet germicidal lamp on top (UV-germicidal lamps )
    4. Two-door for large angle square window
    5. Double hollow toughened glass observation window
    6. Soft contact control switch, microcomputer program
    7. Mechanical interlocking system / Electronic interlocking system for choice
    8.With the power indicator light



    Products Parameter:

    MODEL

    HA-DPB600

    External size (mm)
    (W*D*H)

    760x600x690mm

    Work zone (mm)
    (W*D*H)

    600x600x600mm

    Purification rank

    Class 100

    Material
    (Option)

    1: Entirety Sus304.(T=1.2/1.5mm)
    2: Entirety Sus201.(T=1.2/1.5mm)
    3: External is steel with power coated, Internal is SUS304(T=1.2/1.5mm)
    4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm)



    Control system

    1: Gel Sealant mini-pleats HEPA air filter so that pass the DOP test without any problem.
    2: Pass Box inside bottom corner is round shape without any dust
    accumulation .
    3: Double layer vacuum glass have very good appearance
    4: Software computer interlocking door with long time using life
    5: Air speed is 0.45m/s adjustable

    UV light

    1 PCS

    Power supply

    220v/50HZ

    packing size (mm)

    800x870x1300mm

    Packing material

    Standard Export Poly wood Packing(Fumigant free material)

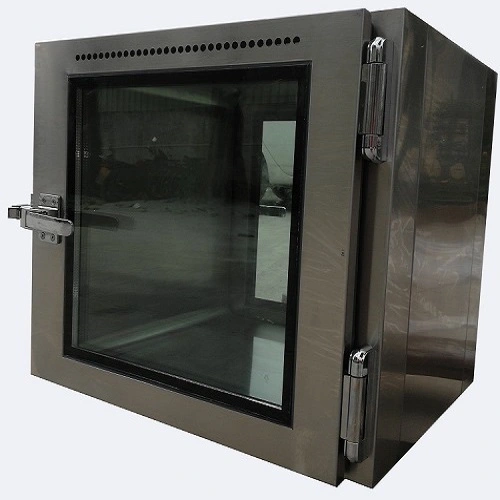

    Pass box outlook:

    pass box2

    pass box a  (1)
