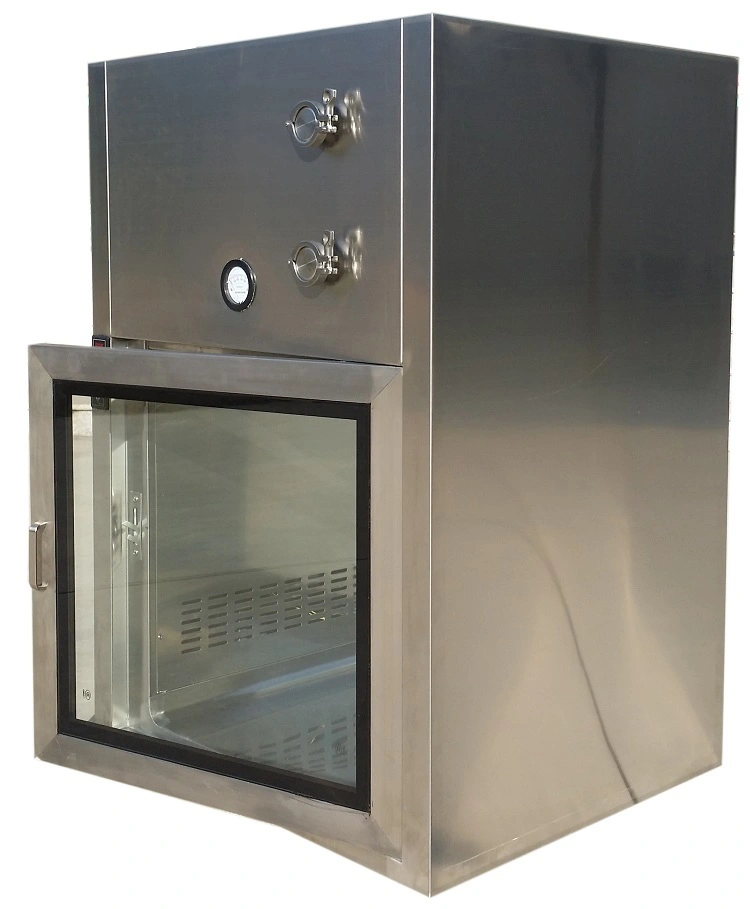

    Cleanroom Dynmic Pass Box


     Product Characteristic :


     1: Statically and dynamically balanced motor blower assembly.

      2:Microprocessor based digital LCD Controller displays all safety information on one screen easy monitoring all parameters.

     3:  Electronic interlocking system is reliable maintenance free fail safe and maintain clean room integrity by preventing both door from being opened at the same time.

       4: Powder coat inhibits microbial growth on external surface prevents contamination and improves safety.

      5: The full body of pass box is constructed of SS 304 which is maximum chemical resistance. Internal coving for easy clean,

      6:bottom with heavy roller base.; This can be easily installed on the wall between the classified room and unclassified room.

       7:Double skin door with glass vive panel ISO class 5 air cleanliness HEPA filter 99.999% down to 0.3 micron Fluorescent light (interlocked with door)

       8:When booth door closed both are electric magnet locked, for open press touch screen to release door at a time only one door opened.;

      9: Audio/visual indication for material is kept inside the pass box.

      In close condition of both doors UV light will be on, when open any one door UV will off and FL will on.



    products name  Cleanroom Dynamic Pass Box
     Material Stainless Steel 304 t=1.2mm
    Frequency50 Hz/60hz
    ColorCustomized
    PhaseSingle/or two
    Is It LockableLockable
    WindowTempered Glass
    HEPA filter99.99%@0.3um
    Filter size 595x595x96mm
    DOP Test report  2 pcs


    Cleanroom Dynmic Pass Box 2

    Products Parameter

    MODEL

      HA-DPB500

    HA-DPB600

    HA-DPB700

    External size (mm)

    (W*D*H)

    700x570x1050mm

    800x670x1150mm

    900x770x1250mm

    Work zone (mm)

    (W*D*H)

    500x500x500mm

    600x600x600mm

    700x700x700mm

    Purification rank

    Class 100

    Material

    Option

    1: Entirety Sus304.(T=1.2/1.5mm)

    2: Entirety sus201. (T=1.2/1.5mm)

    3:External is steel with power coated,   Internal is SUS304(T=1.2/1.5mm)

    4: External is steel with power coated.   Internal is SUS201(T=1.2/1.5mm)



    Control system

    1: Gel Sealant mini-pleats HEPA air   filter so that pass the DOP test without any problem.

    2: Pass Box inside bottom corner is round   shape without any dust

     accumulation .

    3: Double layer vacuum glass have very   good appearance

    4: Software computer interlocking door   with long time using life

    5: Air speed is   0.45m/s adjustable

    UV light

                        1 PCS

    Power supply

                       220v/50HZ

    packing size   (mm)

    800x870x1300mm

    1000x870x1400mm

    1100x970x1500mm

    Packing   material

    Standard Export Poly wood Packing(Fumigant free material)
