We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

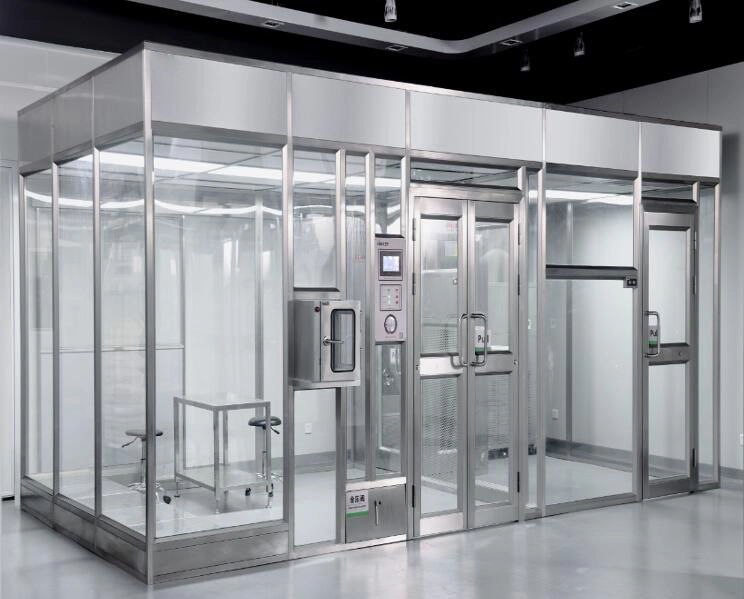

Class100 high efficiency hard wall modular cleanroom  for semiconductor factory 1
Class100 high efficiency hard wall modular cleanroom  for semiconductor factory 1

Class100 high efficiency hard wall modular cleanroom for semiconductor factory

    oops...!

    no product data.

    Go to homepage



    Product Features
    Purification Rank : Class100

    Fan filter unit with HEPA filter in 99.995%@0.3um

    Control System Function :

    A: Control the power on/off

    B: control the fan filter unit air speed  UP/Down

    C: Control working area purification light

    D: Control the UV light in working area

    E:  Monitor differential gauge so that replacment HEPA filter in time.

    Material : stainless steel 304 or steel with milk color powder coated

    perssure Relief valve one set.


    Class100 high efficiency hard wall modular cleanroom  for semiconductor factory 2


    / Products Parameter




    Item

    Hard wall modular cleanroom

    Purification   rank

     Class   to class 100.000

    Dimension   L*W*H

    According client request

    Fan   filter unit

    Dimension

    2x2,2x4,4x4  optional

    Structural   material

    Stainless steel, aluminum alloy, AI-Zn   plate

    Power   supply

    220V/50HZ AC

     Air Filter

    Mini-pleats HEPA /ULPA Air filter

    Frame   material

    Aluminum alloy/stainless steel201/304

    Wall   material

    Acrylic /sandwich panel/anti-static   acrylic

    Ceiling

    Aluminium –plastic panel , sandwich panel

    Air   conditioner

    Constant temperature air conditioning

    Or Constant temperature and humidity air   conditioning

    Lighting

    LED light or T5 (Optional )

    air   shower

    Optional

    Pass   box

    Optional

    Air   flow floor

    Optional


    / Illustration Draw :



    Class100 high efficiency hard wall modular cleanroom  for semiconductor factory 3


    Class100 high efficiency hard wall modular cleanroom  for semiconductor factory 4

    Class100 high efficiency hard wall modular cleanroom  for semiconductor factory 5



    / Product Details



    part.1
    Assembly structure designed, easy installation and easily moved. Directional wheel can be installed.
    Class100 high efficiency hard wall modular cleanroom  for semiconductor factory 6

    part.2
    Modular design:laminar flow booth can be as small as serveral square meters and can be as large as hundreds of square meters.
    Class100 high efficiency hard wall modular cleanroom  for semiconductor factory 7

    part.3
    It have large useful and effective area compare with traditional cleanroom,
    Class100 high efficiency hard wall modular cleanroom  for semiconductor factory 8

    part.4
    Low investment , high return and stable.
    Class100 high efficiency hard wall modular cleanroom  for semiconductor factory 9


    Introduce:

    Hardwall clean booth frame material have two choose:

      A: Stainless steel 304 : it can resist corrosion and have strong support

      B: aluminum alloy : easy assembly , standard accessories .

    Ceiling: aluminium-plastic material is light at weight, easy to install, Sandwich board ceiling in ivory white color have excellent thermal insulation property, More high requirement for large are temperature and humidity so it is best choice for cleanroom

    Fan filter unit: Adopted excellent energy –saving Centrifugal fan with lower noise and less energy consumption .

    Wall:  the anti-static acrylic sheet can may lead the surface static electricity to the underground to keep the surface from absorbing dust or fiber.

    Control system: we can adopted the PLC control system for control the fan filter unit .this can catch the wind speed , differential pressure , temperature and humidity of laminar flow booth

     Application : E-Cigarette , LCM, CMOS Camera Module , Touch play , Optical module ,Film ,Biological Pharmacy, Packing Food.


    / Certificated

    Class100 high efficiency hard wall modular cleanroom  for semiconductor factory 10

    / Our Service


    Class100 high efficiency hard wall modular cleanroom  for semiconductor factory 11

    Our Service

    1:Document
    A: Document for custom clear: 1 sets
    B: Assemble draw: 1 pcs
    C: Circuit diagram draw: 1 pcs
    D: Test report : 1sets
    E: Additional IQ/OQ/PQ document is available upon request.
    2: Air Shower Spare Part so that you can replacement in future by yourself:
    A: HEPA air filter +Pre-filter (as your request) Note: HEPA air filter should be replacement in half and one year. Pre-filter should be replacement in each 6 months, but it can refresh no more than 3 times
    B: Sensor (As your request)
    C: Control board (as your request)
    3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
