We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

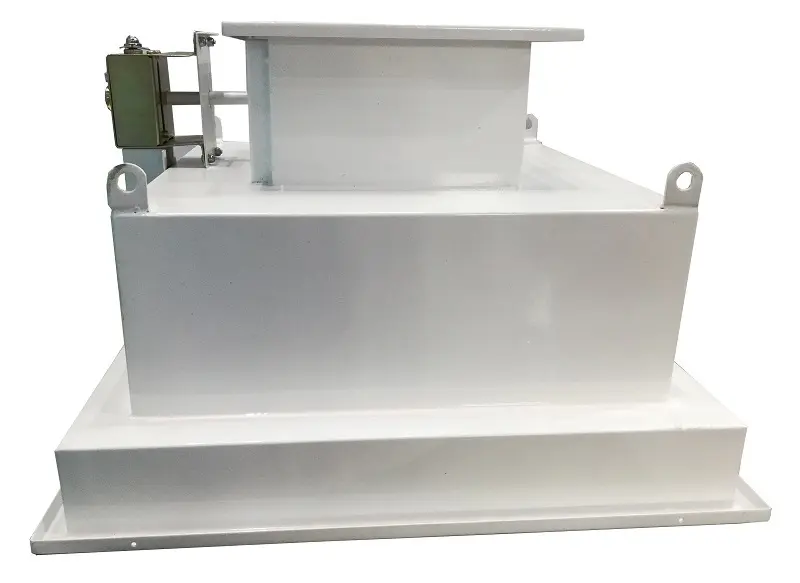

box hepa fan filter unit clean HAOAIRTECH Brand
1. The product is of high purification rank. Owing to its various quality attributes, provided air filter fan is highly appreciated by HAOAIRTECH clients.
2. Guangzhou HaoAir Purification Technology Co.,Ltd.'s customer service always works on a professional level. The product can maintain high air quality of the factory
3. The design of the hepa fan filter unit makes our fan filter unit more competitive in the market. The product assures an extremely high-efficient manufacturing process
Cleanroom Terminal filtration unit.
Compact with central air-conditioning.
Mini-pleats HEPA air filter efficiency 99.99%@0.3um
Steel with milk powder coated cabinet
Suitable for use in cleanliness class 10000-300000 cleanroom.
Airflow distribution is uniform, with airflow diffusion mesh inside
Guarantee the air speed of airflow and prevent the generation of eddy current.
Expansion is convenient and can be arranged according to cleanliness grade or quantity of heat dissipation, Compact structure , reliable sealing performance.
Introduction
The HEPA air filter unit box is used as the terminal filter device fixed in class1000-300000 clean rooms ceiling. The difference between FFU and HEPA Unit is that the efficient air supply outlet has no motor power and needs to rely on the central air conditioning system to supply air to achieve indoor air circulation
It is the key equipment to meet the purification requirements.
Model | Install size | Filter size | Flange size | Air flow | |
Tube on top | Tube on side | (BXAXH)mm | (H13) | (mm) | M3/h |
KLCAC320C | 390x390x380 | 320X320X96 | 200x200/￠300 | 500 | |
KLCAC484C | 554x554x380 | 484X484X96 | 200x320/￠300 | 1000 | |
KLCAC680C | 680x680x380 | 610X610X96 | 200x400/￠300 | 1500 | |
KLCAC985C | 680x985x380 | 610X915X96 | 200x500/￠300 | 2000 | |
KLCAC1290C | 680x1290x380 | 610x1220x96 | 300x500/￠300 | 3000 | |
Customer size is availble.

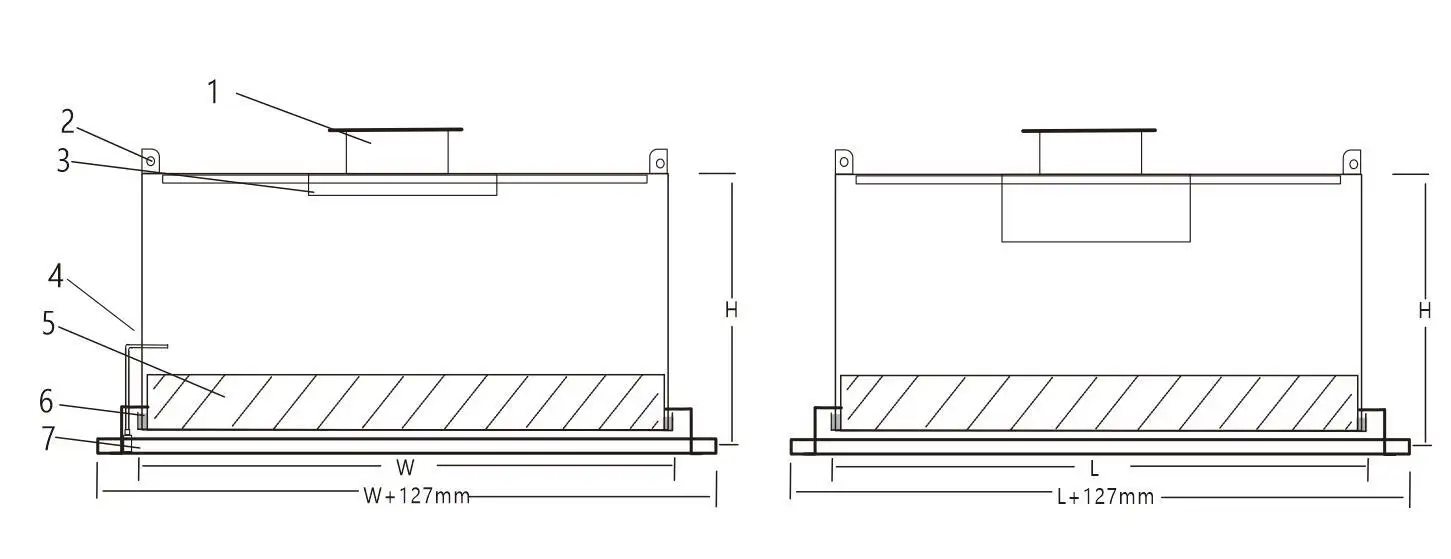

Illustration :

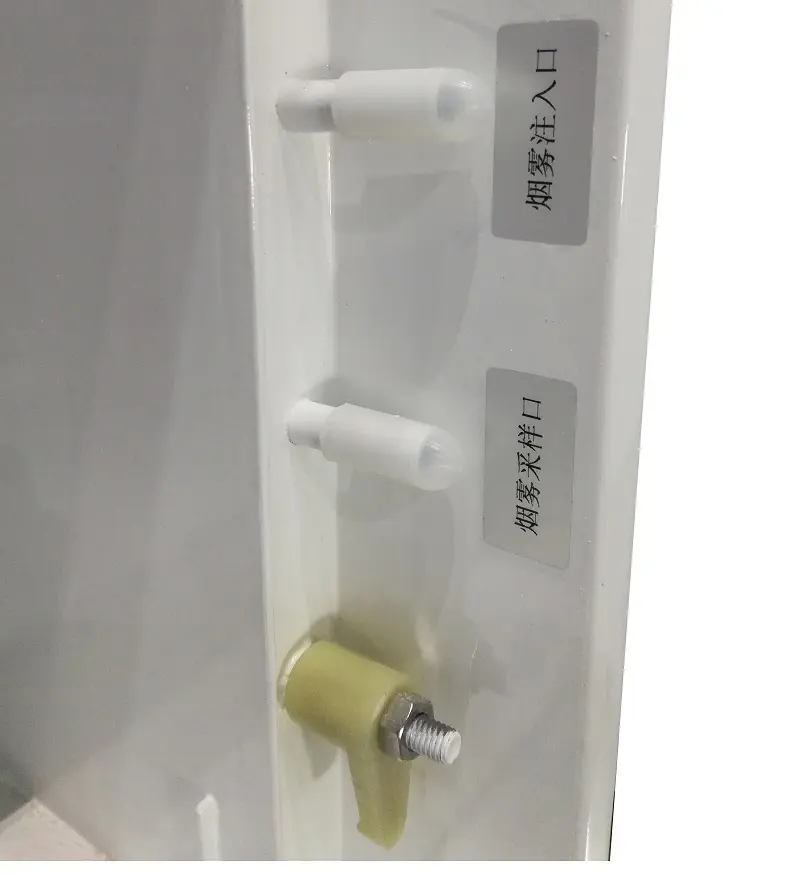

1: Flange 2: Ring 3: Air duct diffuser 4: DOP/PAO Test port 5: HEPA filter 6 :gel-sealant glue 7: Diffuser Plate
Light weight, High efficiency, Beautiful appearance.
The diffuser material can be stainless steel or steel with powder coated.

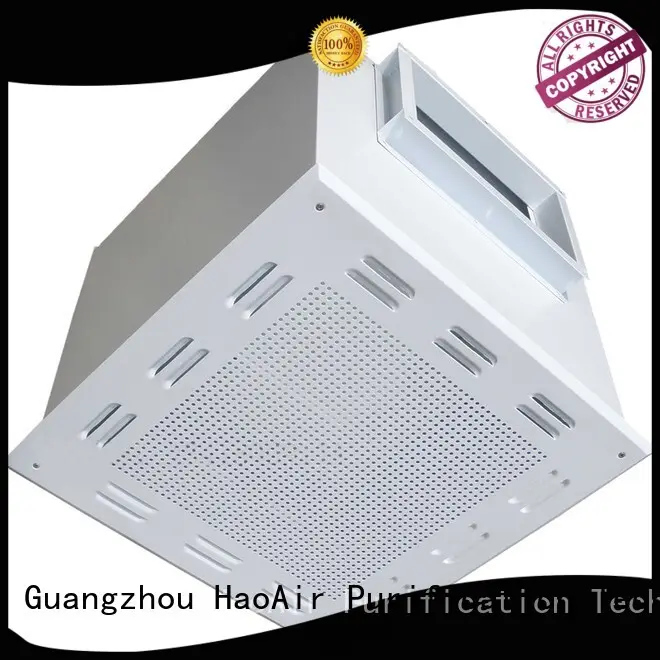

Hepa Filter Unit Box as cleanroom finally air filtration equipment, It including the plenum chamber，HEPA air filter, flanger , diffuer plate .
Application
It is suitable for non-uniform clean rooms of various grades and roof structures.Its main purpose is to filter the terminal air of air supply system of air conditioning box in clean rooms.
It can also be directly installed on the ceiling of the clean room as a terminal filter device, which can be used to renovate or build the terminal air filter equipment of 1000, 10000, 100000
and all levels of clean rooms to meet the purification requirements of the key equipment
/ Certificated
Our Service
1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
Company Features
1. HAOAIRTECH specializes in manufacturing fan filter unit with high quality and reasonable price.
2. Adversity Successfully Overcome Is The Highest Glory. HAOAIRTECH Offers A Wide Range Of filter fan unit, air filter fan, hepa fan filter unit At Reasonable Price To Customers From All Over The World. Please Contact Us!
3. HAOAIRTECH focuses on continuous technological innovation to improve products and services. Check it!
Email: sales2@haoairtech.com
Add: RM323 KaiSheng Building,CongYun RoadYongping street ,Baiyun District, Guang Zhou, Guangdong, China
