We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

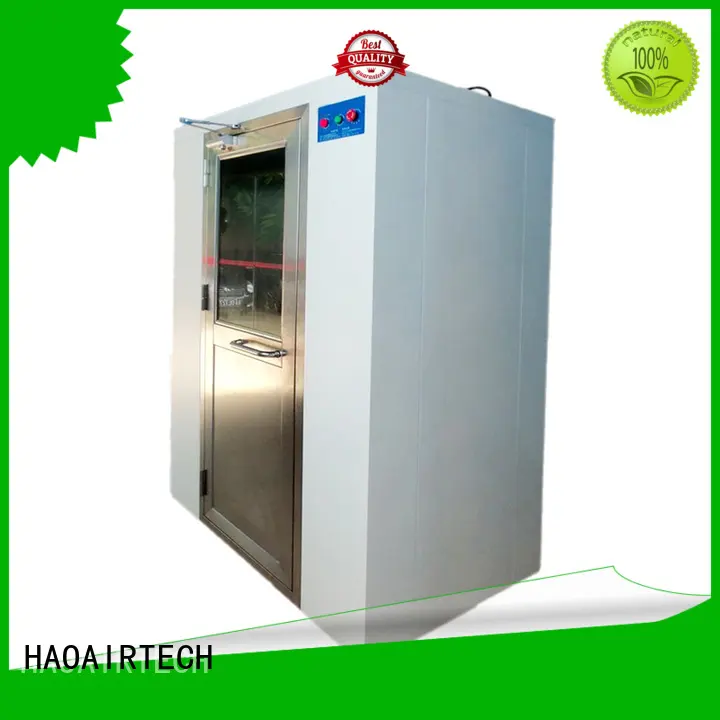

blowing air shower price with stainless steel for large scale semiconductor factory
1. There will be multiple choices for sizes and shapes of air shower price . It is certified by SGS corporation and reaches RoHS standard
2. With its special features and accessories, the product can further expedite and simplify the production process, which will contribute to saving on money. The product creates a clean environment to reduce allergy and asthma symptoms
3. The product features a reliable electrical system. It will auto stop working when open circuit, short circuit, and electric leakage occurs. The product can maintain high air quality of the factory
4. This product will not easily gather bacteria. The antibacterial agent is used into its fabric, and its antibacterial effect is up to 99%. The product comes with 1-2 years of warranty period
5. The product is not easy to deform. Made of hard materials which feature high toughness, it will not out of shape even under high pressure. The product ensures the smooth refreshing breath of users
Neutralization of static electricity in short time
External Material: stainless steel304 (t=1.0)
Inside Material: stainless steel304 (t=1.0)
External size: 1300*1000*2180mm
Internal size: 800*930*1910mm
Sus nozzle: 16pcs
Blowing way: 3 side (left, right and top)
Air speed: more than 25m/s
Door: Electric Interlocking in both side
MODEL | HA-AS1300P1 | HA-AS1300P2 | HA-AS1300P3 | |
External size (mm) | 1300x1000x2180mm | 1300x2000x2180mm | 1300x3000x2180mm | |
Work zone (mm) | 800x930x1910mm | 800x1930x1910mm | 800x2930x1910mm | |
Persons per cycle | 1-2 person | 2-4 person | 3-6 person | |
Material （Option） | 1: External is steel with power coated, Internal is SUS304(T=1.0/1.2/1.5mm) | |||
Control system | 1: Control system with LED display for the shower time. | |||
The power of fan | 380V/50HZ/0.75KW | 380V/50HZ/0.75KW | 380V/50HZ/0.75KW | |
Air flow of fan(m3/h) | 1500 | 1500 | 1500 | |
Fan run (r/min) | 2800 | 2800 | 2800 | |
Nozzle in stain less steel | 16 pcs | 32 pcs | 48pcs | |
Wind speed(m/s) | >25m/s | |||
Noise level(dB) | <75dB | |||
Ion rod copper | 2 pcs | 4pcs | 6 pcs | |
HEPA FILTER | Size(mm) | 630X630X80mm | 630X630X80mm | 630X630X80mm |
Efficiency (%) | 99.995% @ 0.3um mini-pleats HEPA Air Filter | |||
Air velocity | 1000(m3/h) | |||
Initial resistance(pa) | <180pa | |||
Pre-filter | Size(mm) | 775x380x17 | 775x380x17 | 775x380x17 |
Efficiency (%) | 75% @ 0.5um | 75% @ 0.5um | 75% @ 0.5um | |
G3 | G3 | G3 | ||
resistance(pa) | <30 Pa | <30Pa | <30 Pa | |
parameter | Power supply | 380v/50HZ 3P | 380v/50HZ 3P | 380v/50HZ 3P |
Net power(kw) | 1.5 kw | 3kw | 4.5 kw | |
packing size (mm) | 1350x1200x2250mm | 1350x2200x2250mm | 1350x3200x2250mm | |
Packing material | Standard Export Poly wood Packing(Fumigant free material) | |||
Weigh | 320kgs | 650kgs | 960kgs | |
Illustrate
1: Control Board 2: Nozzle 3: Infrared Indicator 4: Per-filter 5: Power indicator 6: Emergency switch 7: Working light 8: HEPA air filter (H13 99.995%@0.3um) 9: Door 10: Fan 11: Door closer 12:Purification light 13: Ion rod copper
Application
The automatic anti-static air shower room can effectively remove the root of the static electricity, guarantee the quality of the electronic industry and improve the production efficiency. The anti static air shower room is mainly used in all kinds of manufacturing industries, such as electronic, photoelectric, semiconductor, plastic, film, printing and so on.
Our Service
1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
