We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.
best hepa air filter flanger ulpa hepa filter manufacturers manufacture
Brand:
HAOAIRTECH
Model number:
HA-HEPA-P Series
OEM /ODM:
Yes
Certificated:
Rosh
Start port:
Guangzhou
Delivery time:
8 working days after we get the deposit.
MOQ:
10sets
Country of Original:
China
Supply ability:
500set/one month
Payment term:
T/T , L/C , Western union
Application:
Worker in Clean room
Application Scope
's dispensing booth manufacturers can be applied to different fields. always pays attention to customers. According customers' actual needs, we could customize comprehensive and professional solutions for them.
Enterprise Strength
- 's professional technical talents provide a strong guarantee for the R&D and production of high-quality products.
- carries out the service model of 'standardized system management, closed-loop quality monitoring, seamless link response, and personalized service' to provide comprehensive and all-around services for consumers.
- In the future, will carry forward the enterprise spirit of 'strictly discipline yourself and treat others with tolerance'. During the development, we also follow the business philosophy of 'customer first, quality first'. We strive to build a leading brand in the industry and promote the healthy and orderly development of the industry. We do that by taking sci-tech as the method, by taking the market as the guide and by taking talents as the basis.
- Built in , is a enterprise with years of experience.
- 's best hepa filter are sold well in all parts of the country and are unanimously praised by customers.
1. best hepa air filter has combined with a reasonable structure design of hvac hepa filter. The product comes with 1-2 years of warranty period
2. The product has passed strict air speed test. The special commercial value of hepa filter for cleanroom have made it top-selling products in hepa filter manufacturers,hepa room filter area.
3. The product can increase the rate of finished products. Our hepa air filter,air filter home are widely popular in hepa filter replacements market based on mature technology and experienced team.
4. The quality assurance of HAOAIRTECH helps it to win more customers. The product will greatly improve the quality of factory-made products
5. Being mainly devoted into manufacturing custom hepa filter, HAOAIRTECH enjoys a high reputation in the industry. The product focuses on the good physical conditions of the workers in the workshop
Characteristics
The carve box folds can prevent the breakage of the filter material.
Neoprene /EVA gasket prevent the air leaking in operation.
MDF frame in 120mm, 150mm, 220mm for choose.
Adopting the laser to scan the filter one by one (MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.99%-99.999%@0.3um
Max temperature is 80C
Max humidity is 80%
Neoprene /EVA gasket prevent the air leaking in operation.
MDF frame in 120mm, 150mm, 220mm for choose.
Adopting the laser to scan the filter one by one (MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.99%-99.999%@0.3um
Max temperature is 80C
Max humidity is 80%
Introduce
Heap air filter with paper clapboard adopt the special design to keep the space between pleated layers by clapboard. Paper spacers can accurately maintain the distance between the pleat layers, Maximum use of filter material under minimum resistance.
/ Operating Conditions
Media | Super glass fibre |
Frame | AL/GL/MDF frame |
Gasket | Neoprene /EVA or PU |
Media spacer | Hot melt |
Frame thickness (mm) | 120/150/220 |
Clapboard | 120g/m paper |
Efficiency | 99.99%-99.999%@0.3um |
Max Temperature | 80℃ |
Max Humidity | 80% |
/ Products Parameter
Dimension(mm) | Rate Air | Media Area | Dust Holding | Rate primary | Finally |
484X484X120 | 450 | 4.4 | 230 |
220Pa |
400-600pa |
610X610X120 | 700 | 7.1 | 370 | ||
610X915X120 | 1050 | 10.6 | 560 | ||
610X1220X120 | 1400 | 14.1 | 740 | ||
484X484X150 | 600 | 6 | 320 | ||
610X610X150 | 1000 | 9.7 | 510 | ||
610X915X150 | 1500 | 14.5 | 770 | ||
610X1220X150 | 2000 | 19.3 | 1020 | ||
484X484X220 | 1000 | 9.8 | 600 | ||
610X610X220 | 1600 | 15.8 | 920 | ||
610X915X220 | 2300 | 23.7 | 1340 | ||
610X1220X220 | 3000 | 31.6 | 1750 |
/ Primary Resistance & Face Velocity Diagram
/ Product Details
part.1

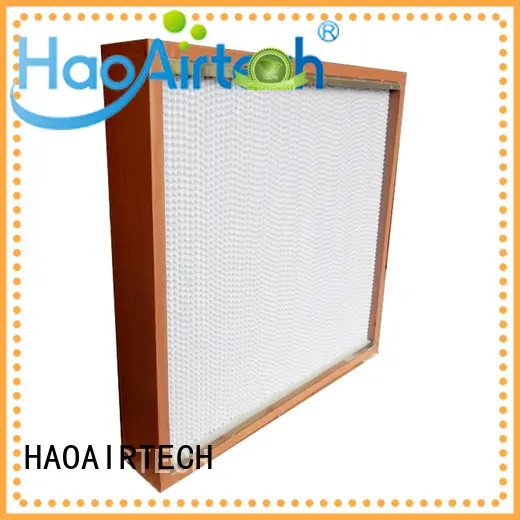

HEPA air filter With Paper Clapboard
part.2
Paper clapboard separate the media
/ package
Company Features
1. HAOAIRTECH is now widely recognized by more customers at home and abroad.
2. Guangzhou HaoAir Purification Technology Co.,Ltd. has the specialized production base.
3. Guangzhou HaoAir Purification Technology Co.,Ltd. takes science as its forerunner and strive for perfection. Get info!
