We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

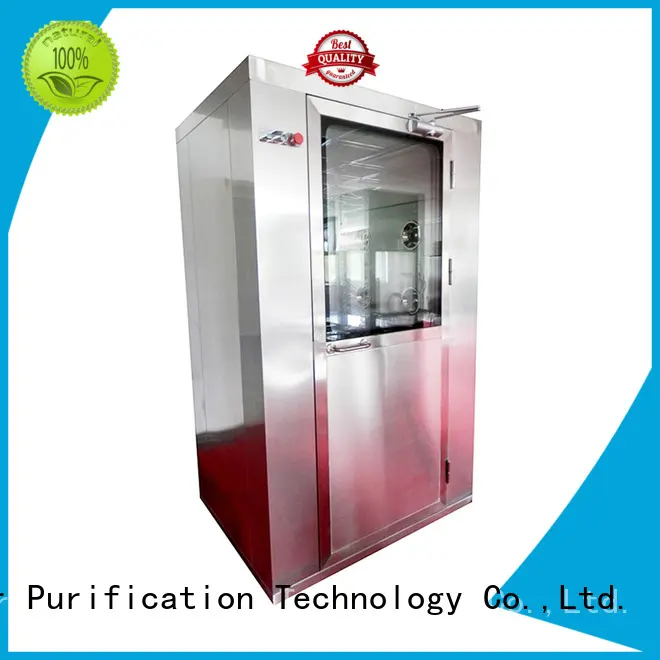

anti static air shower manufacturer with stainless steel for pallet cargo
- HaoAir insists on the principle of 'integrity, professionalism, responsibility, gratitude' and strives to provide professional and quality services for customers.
1. Every HAOAIRTECH air shower manufacturer is a product of thinking and craft refined through generations.
2. The product has excellent plasticity. The thin body construction and high sintering temperature allow it for special and delicate shaping and patterning.
3. The product is eco-friendly. No inorganic glue is used. While the water-based glue is used to provide an extra level of security to certain joints.
4. The product can provide support for the feet where they need it most and effectively relieves pain-inducing shock and stress.
5. The product gives people the comforts that encompass a large variety of factors, including physical aspects such as softness and breathability, and the sense of wellbeing associated with the right style and fit.
External Material: stainless steel304 (t=1.0) Or steel with milk color power coated
Inside Material: stainless steel304 (t=1.0)
External size: 1400*1000*2180mm
Internal size: 790*930*1910mm
Sus nozzle: 16pcs
Blowing way: one side (top)
Air speed: more than 25m/s
Door: Electric Interlocking in both side.
MODEL | HA-AS1400V1 | HA-AS1400V2 | HA-AS1400V3 | |
External size (mm) | 1400x1000x2180 | 1400x2000x2180 | 1400x3000x2180 | |
Work zone (mm) | 790x930x1910 | 790x1930x1910 | 790x2930x1910 | |
Persons per cycle | 1-2 person | 2-4 person | 3-6 person | |
Material （Option） | 1：Entirety Sus304.(T=1.0/1.2/1.5mm) | |||
Control system | 1: Control system with LED display for the shower time. | |||
The power of fan | 380V/50HZ/1.1KW | 380V/50HZ/1.1KW | 380V/50HZ/1.1KW | |
Air flow of fan(m3/h) | 1500 | 1500 | 1500 | |
Fan run (r/min) | 2800 | 2800 | 2800 | |
Nozzle in stain less steel | 16 pcs | 32 pcs | 48pcs | |
Wind speed(m/s) | >25m/s | |||
Noise level(dB) | <75dB | |||
HEPA FILTER | Size(mm) | 630X630X80mm | 630X630X80mm | 630X630X80mm |
Efficiency (%) | 99.995% @ 0.3um Mini-pleats HEPA air filter | |||
Air velocity | 1000m3/h | |||
Initial resistance(pa) | <220pa | |||
Pre-filter | Size(mm) | 775x380x17 | 775x380x17 | 775x380x17 |
Efficiency(%) | 75% @ 0.5um | 75% @ 0.5um | 75% @ 0.5um | |
G3 | G3 | G3 | ||
resistance(pa) | <30 Pa | <30Pa | <30 Pa | |
parameter | Power supply | 380v/50Hz | 380v/50Hz | 380v/50Hz |
Net power(kw) | 1.5 kw | 3kw | 4.5 kw | |
packing size (mm) | 1500x1200x2250 | 1500x2200x2250 | 1500x3200x2250 | |
Packing material | Standard Export Poly wood Packing(Fumigant free material) | |||
Weigh | 320kgs | 650kgs | 960kgs | |
Illustrate
1: Control board 2: Infrared Indicator 3: Per-filter 4: Power Indicator 5: Emergency switch 6: Working light 7: HEPA air filter (H13 99.995%@0.3um) 8: Door 9: Fan 10: Door Closer 11: Nozzle 12: Purification light
Application
Clean room air shower products are a kind of local cleaning equipment with strong versatility. They are installed between clean rooms and non clean rooms. It has been applied in many fields, such as food and beverage, biochemistry, precision instrument, electronic, photoelectric, microelectronics, fiber optic cable, precision machinery, biopharmaceutical, aeronautics and Astronautics and so on.
/ Certificated
Our Service
1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. has been broadly accepted thanks to its strong capability for manufacturing air shower controller . We have built a good reputation in the industry.
2. Our factory features some of the best machinery available. We have multiple machines in each category and highly skilled personnel to operate them, ensuring that we can meet customers scheduling needs.
3. Our corporation always pursues the operation philosophy of 'to the quality strives for the development, to the prestige of survival'. Check it! The company will always support the development of communities and society now and into the future. By promoting the local economic growth and doing charity works for society, the company is now finding more channels to contribute. Check it! Guangzhou HaoAir Purification Technology Co.,Ltd. hopes to compete in the market based on product innovation. Check it!
