Company Advantages1. The product can maintain high air quality of the factory. Owing to its various quality attributes, provided best hepa
air filter is highly appreciated by HAOAIRTECH clients.
2. Guangzhou HaoAir Purification Technology Co.,Ltd.'s customer service always works on a professional level. It is certified by SGS corporation and reaches RoHS standard
3. It acts as an indispensable part in a dustfree production line. The hepa
filter manufacturers,hvac hepa filter part virtually eliminates problems caused by hepa filter for cleanroom..
4. For your more complex hepa room filter requirements and larger batch sizes, HaoAir Purification provides you with extremely efficient and intelligently designed hepa air filter built to meet the most diverse needs. It has low noise and high mobility.
5. The product can increase the rate of finished products, HAOAIRTECH Has A Wide Sales Network And A Good Distribution System For Our
custom hepa filter, air filter home.
Characteristics
The carve box folds can prevent the breakage of the filter material.
Neoprene /EVA gasket prevent the air leaking in operation。
Extrude and anodized aluminum frame in 120mm, 150mm, 220mm for choose。
Adopting the laser to scan the filter one by one (MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.99%-99.999%@0.3um
Max temperature is 80C
Max humidity is 80%
Introduce
Absolute Heap air filter adopt the special design to keep the space between pleated layers by
Clapboard. Corrugated aluminum spacers can accurately maintain the distance between the pleat layers, Maximum use of filter material under minimum resistance.
/ Operating Conditions
Media | Super glass fibre |
Frame | AL/GL/MDF frame |
Gasket | Neoprene /EVA or PU |
Media spacer | Hot melt |
Frame thickness (mm) | 120/150/220 |
Clapboard | 0.035mm aluminum foil |
Efficiency | 99.99%-99.999%@0.3um |
Max Temperature | 80℃ |
Max Humidity | 80% |
/ Products Parameter
Dimension(mm)
(W*H*D) | Rate Air Flow
(m3/h) | Media Area
(m2) | Dust Holding
(g) | Rate primary Resistance(Pa)
(H13-H14) | Finally Resistance (Pa) |
484X484X120 | 450 | 4.4 | 230 |
220Pa |
400-600pa |
610X610X120 | 700 | 7.1 | 370 |
610X915X120 | 1050 | 10.6 | 560 |
610X1220X120 | 1400 | 14.1 | 740 |
484X484X150 | 600 | 6 | 320 |
610X610X150 | 1000 | 9.7 | 510 |
610X915X150 | 1500 | 14.5 | 770 |
610X1220X150 | 2000 | 19.3 | 1020 |
484X484X220 | 1000 | 9.8 | 600 |
610X610X220 | 1600 | 15.8 | 920 |
610X915X220 | 2300 | 23.7 | 1340 |
610X1220X220 | 3000 | 31.6 | 1750 |
/ Primary Resistance & Face Velocity Diagram
![al aluminum air hepa filter manufacturers HAOAIRTECH Brand company 11]()
/ Product Details
part.1

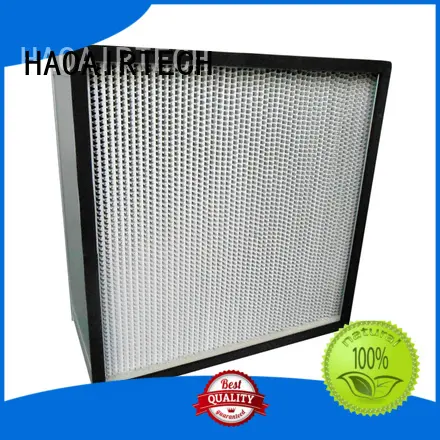

Abosulte HEPA air filter
part.2
Absolute Hepa Air Filter With EVA Gasket
part.3
Deep Pleats Media Compact
/ package
Company Features1. HAOAIRTECH specializes in manufacturing hepa filter manufacturers with high quality and reasonable price.
2. Adversity Successfully Overcome Is The Highest Glory. HAOAIRTECH Offers A Wide Range Of hepa air filter, best hepa air filter, hvac hepa filter At Reasonable Price To Customers From All Over The World. Please Contact Us!
3. HAOAIRTECH focuses on continuous technological innovation to improve products and services. Get quote!
