We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

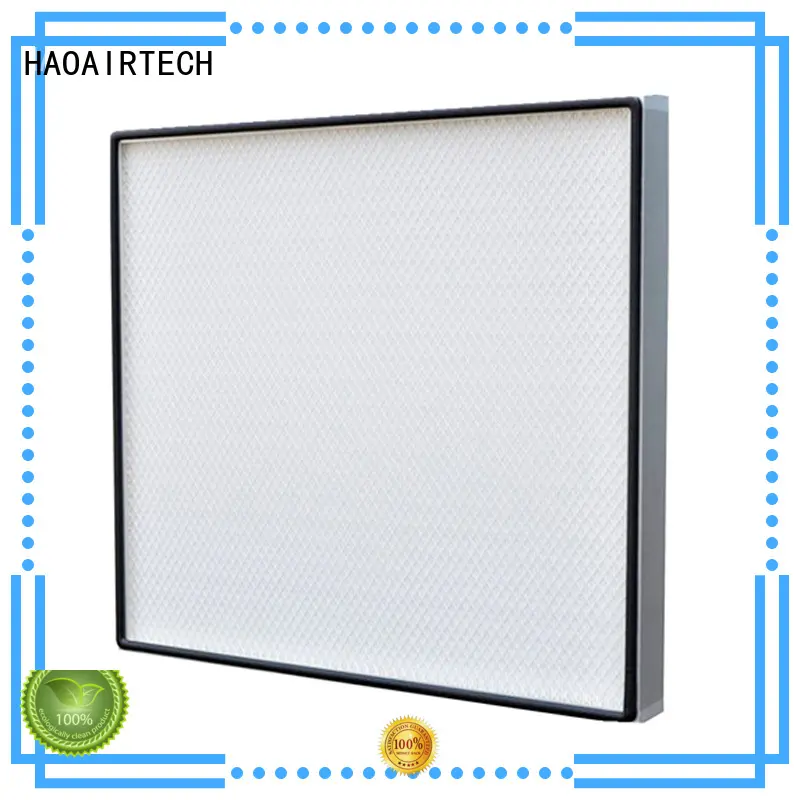

absolute filter minipleats hepa filter manufacturers aluminum HAOAIRTECH Brand
1. Leverage on our vast industry experience, we are engaged in offering an optimum quality hepa filter manufacturers that is mainly used in homes.
2. The included hepa air filter features best hepa air filter for securing hvac hepa filter. Made of stainless steel SUS304, it is beautiful and durable.
3. Our offered custom hepa filter are constructed in such a way that it can be used effectively in residential , commercial as well as industrial areas. The product prevents viruses and bacteria from spreading
4. All over the years, Guangzhou HaoAir Purification Technology Co.,Ltd. provides customer with the best products, good technical support and sound after-sales service. A sample of the product can be offered for the confirmation of quality
It is patent technology to ensure the V type passage in low resistance.
Neoprene /EVA or PU gasket prevent the air leaking in operation
Extrude and anodized aluminum frame in 50mm, 69mm, 80mm, 90mm for choose.
While color metal screen to protect the filtration media without any damage.
Light weight and easy to install
Adopting the laser to scan the filter one by one ( MPPS).
100 % provide the test report for each mini-pleats ULPA air filter
Filtration Efficiency: U15 ,U16, U17.(EN1822). 99.9995%-99.99995%@0.12um
Applied to the terminal filtration of the air-condition filtration system
Media | America HV Super glass fibre |
Frame | AL/GL/SUS201/304 frame |
Gasket | Neoprene /EVA or PU |
Media spacer | Hot melt |
Frame thickness (mm) | 46/50/69/80/90/96/120 |
Screen | Metal screen |
Efficiency | >99.9995%-99.99995%@0.12um |
Max Temperature | 70℃ |
Max Humidity | 100% |
Dimension(mm) | Rate Air Flow | Media Area | Dust Holding | Rate primary | Finally | Efficiency |
320X320X50 | 120 | 2 | 130 |
<200Pa |
400-600pa |
U15-U17 |
484X484X50 | 300 | 4.5 | 300 | |||
610X610X50 | 500 | 7.1 | 428 | |||
915X610X50 | 730 | 10.6 | 635 | |||
1220X610X50 | 980 | 14 | 842 | |||
305X305X69 | 150 | 2.9 | 173 | |||
484X484X69 | 400 | 6.5 | 393 | |||
610X610X69 | 600 | 10.3 | 622 | |||
915X610X69 | 900 | 15.4 | 923 | |||
1220X610X69 | 1200 | 20.4 | 1224 |
Application
Mini-Pleats ULPA air filter suitable for air cleaner ,dust colletor hospital, electronic industry ,food,Pharmaceutical ,bio-engineering,precision instrument, electron semiconductors and dust-free room, national defense,aerospace field and so on .
Our Service
1: 100% scann air leaking test for each Mini-PleatsHEPA air flter, test report accompany all of
HEPA air filter.
2: 2 pcs in one carton .each air filter warp by PE Bag .
3: Small order is polywood packing so that we can send out by sea in LCL.
4: If order amount more than 20000USD, We accept the 100% LC at sight against with
document.
5: Free sample possible for you confirmation of quality .
Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. specializes in R&D, manufacturing, sales, and service of best hepa air filter as an integrated hepa filter manufacturers service provider.
2. hepa air filter enjoys good quality performance and wins more favors from customers.
3. By cause of accurate market position, HAOAIRTECH dedicates itself into the design and sales of custom hepa filter. Check it!
Email: sales2@haoairtech.com
Add: RM323 KaiSheng Building,CongYun RoadYongping street ,Baiyun District, Guang Zhou, Guangdong, China
