Company Advantages1. The color in
custom hepa filter is not easy to fade. The product's rigid frame forestalls shrinking or bending
2. HAOAIRTECH has perfect quality assurance system and perfect warranty service measures to better improve the quality of custom hepa filter . Automatic operation is the highlight of the product
3. There is continuous attention to quality throughout the production process. The product creates a high cleanliness working environment
4. The product has many competitive edges, such as strong durability, high cost-performance, and so on. The product can withstand high temperature
5. In line with international quality standards, the quality of this product is more reliable. It is certified by SGS corporation and reaches RoHS standard
Characteristics
The carve box folds can prevent the breakage of the filter material.
Neoprene /EVA gasket prevent the air leaking in operation。
Extrude and anodized aluminum, Galvanized and MDF frame in 120mm, 150mm, 220mm for choose。
Adopting the laser to scan the filter one by one (MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.99%-99.999%@0.3um
Max temperature is 80C
Max humidity is 80%
Introduce
Deep Pleats Heap air filter adopt the special design to keep the space between pleated layers by
Clapboard. Corrugated aluminum spacers can accurately maintain the distance between the pleat layers, Maximum use of filter material under minimum resistance.
/ Operating Conditions
Media | Super glass fibre |
Frame | AL/GL/MDF frame |
Gasket | Neoprene /EVA or PU |
Media spacer | Hot melt |
Frame thickness (mm) | 120/150/220 |
Clapboard | 0.035mm aluminum foil or 120g/m paper |
Efficiency | 99.99%-99.999%@0.3um |
Max Temperature | 80℃ |
Max Humidity | 80% |
/ Products Parameter
Dimension(mm) (W*H*D) | Rate Air
Flow (m3/h) | Media Area (m2) | Dust Holding (g) | Rate primary
Resistance(Pa)
(H13-H14) | Finally
Resistance (Pa) |
484X484X120 | 450 | 4.4 | 230 |
220Pa |
400-600pa |
610X610X120 | 700 | 7.1 | 370 |
610X915X120 | 1050 | 10.6 | 560 |
610X1220X120 | 1400 | 14.1 | 740 |
484X484X150 | 600 | 6 | 320 |
610X610X150 | 1000 | 9.7 | 510 |
610X915X150 | 1500 | 14.5 | 770 |
610X1220X150 | 2000 | 19.3 | 1020 |
484X484X220 | 1000 | 9.8 | 600 |
610X610X220 | 1600 | 15.8 | 920 |
610X915X220 | 2300 | 23.7 | 1340 |
610X1220X220 | 3000 | 31.6 | 1750 |
/ Primary Resistance & Face Velocity Diagram
![absolute custom hepa filter with one side gasket for air cleaner 11]()
/ Product Details
part.1

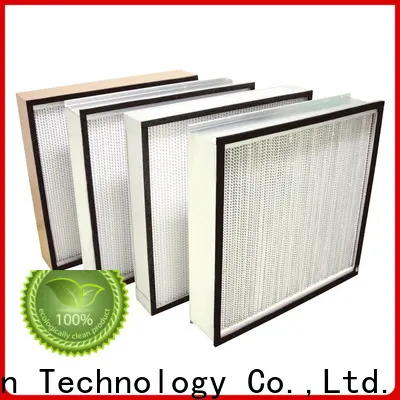

Deep Pleats HEPA air filter
part.2
Deep Pleats Hepa Air Filter With EVA Gasket
part.3
Deep Pleats Media Compact
/ package
Company Features1. Guangzhou HaoAir Purification Technology Co.,Ltd. has been operating in a pragmatic manner since its inception.
2. Our manufacturing teams are an essential part of our company. They are constantly looking for ways to improve our processes and create a safer, more efficient and cost-effective manufacturing environment.
3. Guangzhou HaoAir Purification Technology Co.,Ltd. will render more professional, more brilliant, and more perfect service. Get info!
