We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

absolute air filter hepa with hood for electronic industry 1
absolute air filter hepa with hood for electronic industry 2
absolute air filter hepa with hood for electronic industry 3
absolute air filter hepa with hood for electronic industry 4
absolute air filter hepa with hood for electronic industry 5
absolute air filter hepa with hood for electronic industry 6
absolute air filter hepa with hood for electronic industry 7
absolute air filter hepa with hood for electronic industry 8
absolute air filter hepa with hood for electronic industry 9
absolute air filter hepa with hood for electronic industry 10
absolute air filter hepa with hood for electronic industry 1
absolute air filter hepa with hood for electronic industry 2
absolute air filter hepa with hood for electronic industry 3
absolute air filter hepa with hood for electronic industry 4
absolute air filter hepa with hood for electronic industry 5
absolute air filter hepa with hood for electronic industry 6
absolute air filter hepa with hood for electronic industry 7
absolute air filter hepa with hood for electronic industry 8
absolute air filter hepa with hood for electronic industry 9
absolute air filter hepa with hood for electronic industry 10

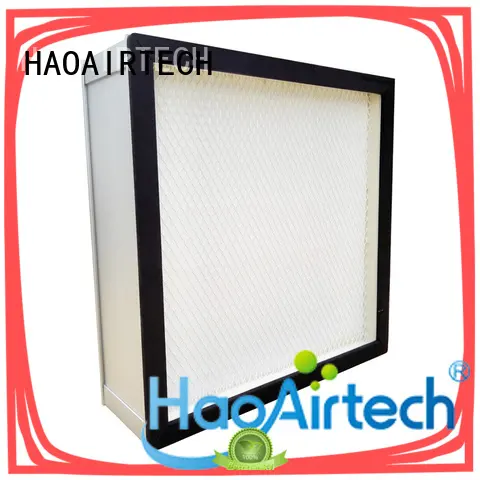

absolute air filter hepa with hood for electronic industry

Brand:
HAOAIRTECH
Model number:
HA-HEPA-M Series
OEM /ODM:
Yes
Certificated:
Rosh
Start port:
Guangzhou
Delivery time:
8 working days after we get the deposit.
MOQ:
10sets
Country of Original:
China
Supply ability:
set/one month
Payment term:
T/T , L/C , Western union
Application:
Worker in Clean room
Inquiry
Company Advantages
1. HAOAIRTECH air filter hepa is designed with the help of advanced technology. The product prevents viruses and bacteria from spreading
2. The product can meet the requirements of prospective buyers, showing countless potential sales. The product is reputed for its long service life
3. The product has the advantage of temperature resistance. Variations in temperature will not generate significant deviations in its stiffness or fatigue resistance, nor in any of its other mechanical properties. The product creates a high cleanliness working environment
4. This product is electrically safe. The demands placed on glow wire resistance of the plastics used for insulating or mounting live components have been increased. With premium quality, the product is also fit for working under difficult operating conditions
5. The product does not shrink easily after washing. In the process of cotton cleaning and extrusion, the tension of the fabric is strictly controlled. The product can increase the rate of finished products



Characteristics
The media material is super glass fibre for 0.3um particulate.
It is patent technology to ensure the V type passage in low resistance.
Neoprene /EVA or PU gasket prevent the air leaking in operation.
Extrude and anodized aluminum frame in 50mm, 69mm, 80mm, 90mm for choose.
While color metal screen to protect the filtration media without any damage.
Light weight and easy to install
Adopting the laser to scan the filter one by one ( MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.95%-99.995%@0.3um
Applied to the terminal filtration of the air-condition filtration system
absolute air filter hepa with hood for electronic industry 11



/ Operating Conditions


 Media

Super    glass fibre

 Frame

AL/GL/SUS201/304    frame

Gasket

Neoprene    /EVA or PU

Media spacer

Hot melt

Frame thickness (mm)

46/50/69/80/90/96/120

Screen

Metal    screen

Efficiency

>99.999%@0.3um

Max Temperature

 70℃

Max Humidity

100%



/ Products Parameter


Dimension(mm)
     (W*H*D)

  Rate Air Flow
     (m3/h)

Media Area
     (m2)

Dust Holding
        (g)

Rate primary
Resistance
(Pa)

Finally
Resistance
     (Pa)

320X320X50

200

1.99

120









H13 :<200Pa
H14 :<220pa









400-600pa

484X484X50

450

4.51

270

610X610X50

700

7.13

430

915X610X50

1000

10.58

650

1170X570X50

1200

12.57

750

1220X610X50

1350

14.04

850

320X320X69

250

2.89

180

484X484X69

600

6.55

400

610X610X69

1000

10.37

620

915X610X69

1500

15.39

920

1170X570X69

1800

18.28

1100

1220X610X69

2000

20.41

1230

484X484X96

1000

10.24

620

610X610X96

1500

16.2

980

915X610X96

2300

24.01

1450

1170X570X96

2800

28.56

1720

1220X610X96

3100

31.89

1920



/ Primary Resistance & Face Velocity Diagram


absolute air filter hepa with hood for electronic industry 12



/ Product Details



part.1
Hepa Air Filter With EVA Gasket and PU gasket
absolute air filter hepa with hood for electronic industry 13

part.2
PU Foma Gasket
absolute air filter hepa with hood for electronic industry 14

part.3
Mini-Pleats Media Compact
absolute air filter hepa with hood for electronic industry 15

part.4
Air Filter Dust Detection Test
absolute air filter hepa with hood for electronic industry 16


Application

Mini-pleats HEPA air filter suitable for hospital, electronic industry ,food,Pharmaceutical , bioengineering,precision instrument, electron semiconductors and dust-free room, national defense,aerospace field, fan filter unit, HEPA unit , air shower, dynamic pass box, dispensing booth ,softwall cleanroom, laminar flow booth and so on .



/ Our Service


absolute air filter hepa with hood for electronic industry 17

Our Service

1:  100% scann air leaking test for each Mini-PleatsHEPA air flter, test report accompany all of    HEPA air filter.
2:  2 pcs in one carton .each air filter warp by PE Bag .
3:  Small order is polywood packing so that we can send out by sea in LCL.
4:  If order amount more than 20000USD, We accept the 100% LC at sight against with     document.
5:  Free sample possible for you confirmation of quality .



/ package


absolute air filter hepa with hood for electronic industry 18
absolute air filter hepa with hood for electronic industry 19
absolute air filter hepa with hood for electronic industry 20




Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. is a professional high-tech enterprise.
2. By keeping innovating the air filter hepa technology, we can stay ahead in the industry.
3. The hepa filter manufacturers is the fundamental pursuit of enterprise development. Get price!
