v cell hvac air filters with abs frame for industry
Characteristics:
Dual density media reduces operating cost
Excellent performance in difficult operating conditions
High efficiency low resistance
Rigid metal construction
Deep pleats type water resistance glass fibre media
Turbulent air flow
Supported with aluminum foil clapboard
High temperature and high humidity
Intermittent exposure to water
Efficiency: MERV 14, MERV 13 and MERV 11 .
Operating conditions:
Media | Glass Fiber |
Frame | AL/GL frame |
Clapboard | Aluminum Foil |
Frame thickness (mm) | 150/292mm |
Screen | Metal screen |
Efficiency | F7/F8 |
Max Temperature | 350 ˚F (177˚C) |
Max Humidity | 100% |
Products Parameter：
Dimension (mm) (W*H*D)
| Rate Air Flow (m3/h) | Media Area (m2) | Dust Holding (g) | Rate primary Resistance (Pa) | Finally Resistance (Pa) | Efficiency |
289x594x150 | 675 | 4.3 | 261 |
<60 |
250-300 | F6 |
594x594x150 | 1385 | 8.84 | 354 | |||
287x594x292 | 1490 | 9.52 | 571 | |||
594x594x292 | 3085 | 19.7 | 1185 | |||
289x594x150 | 675 | 4.3 | 261 |
<80 |
300-400 | F7 |
594x594x150 | 1385 | 8.84 | 354 | |||
287x594x292 | 1490 | 9.52 | 571 | |||
594x594x292 | 3085 | 19.7 | 1185 | |||
289x594x150 | 675 | 4.3 | 261 |
<100 |
300-400 | F8 |
594x594x150 | 1385 | 8.84 | 354 | |||
287x594x292 | 1490 | 9.52 | 571 | |||
594x594x292 | 3085 | 19.7 | 1185 |
Application:
Commercial buidings, data centers , food and beverage, hospitality , industry , microelectronics
Healthcare , schools and universities ,pharmaceutical .

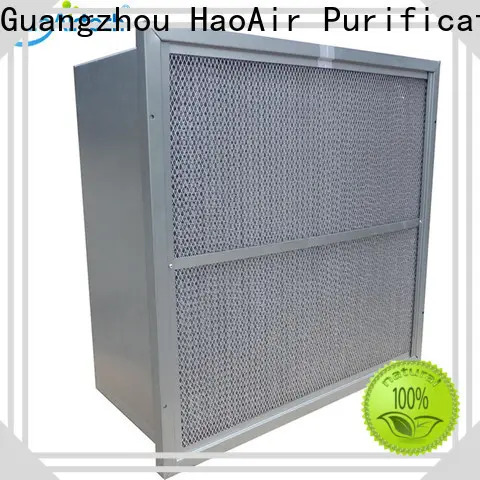

Picture：
