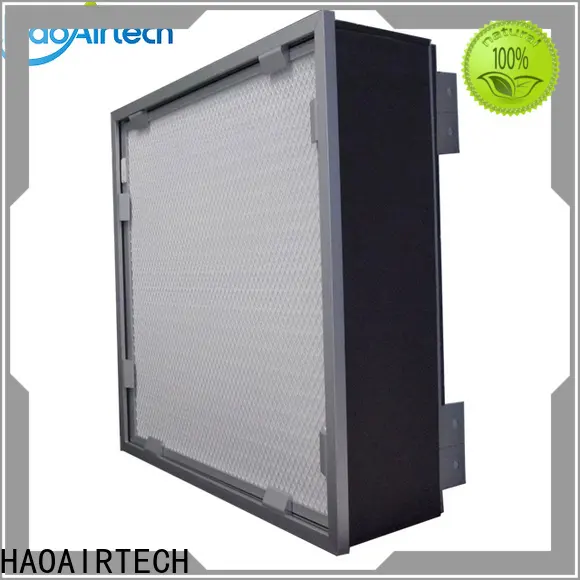

Ducted Ceiling HEPA Module
Characteristics:
The ducted ceiling HEPA Moudle cabinet are designed in closed integration which prevent the air leakage.
Meanwhile the heap filter replaceable from cleanroom inside.
This filter light weight and easy maintain
Air duct is galvanized steel and the diameter is 250mm, 300mm and 350mm for your choose
Control valve for air flow adjust (optional).
The media material is super glass fibre for 0.3um particulate.
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.95%-99.995%@0.3um
ducted ceiling HEPA Moudle Operating Conditions:
Media | Super glass fibre |
Frame | AL/GL frame |
Gasket | Neoprene /EVA |
Media Spacer | Hot melt |
Cabinet Thickness (Mm) | 150/180mm |
Filter Frame | 69mm |
Efficiency | 99.99%-99.999%@0.3um |
Max Temperature | 70℃ |
Max Humidity | 100% |
Products Parameter:
Cabinet size (mm) | Filter size | Rate | Media Area | Dust | Rate primary | Finally | Efficiency |
360X360X180 | 320x320x69 | 264 | 2.93 | 126 | <220pa | 400-600pa | H13-H14 |
524X524X180 | 484x484x69 | 600 | 6.61 | 397 | |||
650X650X180 | 610x610x69 | 1000 | 10.44 | 627 | |||
670X670X180 | 630x630x69 | 1050 | 11.13 | 668 | |||
650X955X180 | 610x915x69 | 1500 | 15.42 | 925 | |||
650x1260x180 | 610x1220x69 | 2000 | 20.40 | 1224 | |||
670x1300x180 | 630x1260x69 | 2100 | 21.76 | 1306 | |||
345x345x180 | 305x305x69 | 240 | 2.66 | 160 | |||
345x650x180 | 305x610x69 | 500 | 5.09 | 305 | |||
345x955x180 | 305x915x69 | 750 | 7.52 | 450 | |||
640x640x180 | 600x600x69 | 980 | 10.11 | 607 | |||
640x1240x180 | 600x1200x69 | 1980 | 19.74 | 1185 | |||
650x1280x180 | 610x1240x69 | 2050 | 20.74 | 1244 | |||
524x1008x180 | 484x968x69 | 1250 | 12.85 | 771 |
Application:
The replaceable HEPA air filter with hood suitable for high and strict working environment such
as surgery, lab, pharmacy , micro-electric ,film production in terminal filtration of the air-condition filtration system
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA filter: each one should be replacement in each half and one years.
