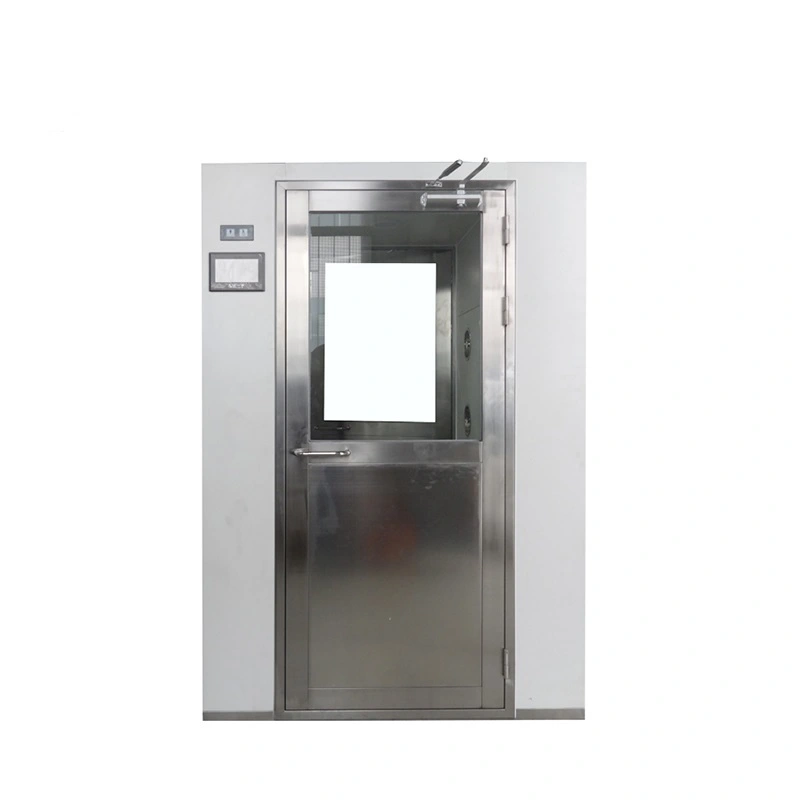

Top Side Vertical Flow Air Shower For Clean Room 1
Top Side Vertical Flow Air Shower For Clean Room 2
Top Side Vertical Flow Air Shower For Clean Room 1
Top Side Vertical Flow Air Shower For Clean Room 2

Top Side Vertical Flow Air Shower For Clean Room

    oops...!

    no product data.

    Go to homepage

    Introduction:
    Haoair Air Shower are an effective solution to reduce or even eliminate this type of contamination in order to protect the classification of the controlled enviroment.
    Vertical Air Shower is a cabinet type air shower designed to eliminate the particle contamination of the external surfaces of personnel and materials entering into controlled areas.


    Top Side Vertical Flow Air Shower General Features:

    1.Two doors with tempered safety glass.
    2.Door opening direction adjustable to the room requirements.
    3.Indication of cycle running.
    4.Remaining cycle time.
    5.Cycle time adjustable by Administrator from 0-99 seconds (other values can be programmed at the factory).
    6.Alarms for blower, ventilation system, clogged filter, entry door open, exit door open, etc.
    7.Fully automatic operation with programmable microprocessor to control all functions of the shower.
    8.Microprocessor control to differentiate between entering and leaving cycles.
    9.LED state indication for doors and shower cycle.
    10.Full blown air filtration through 2 mechanical filtration stages with G4 pre-filter and ultra-filtration by HEPA H14 absolute filters.


    The air shower is approval by CE and RoHS certificate.
    Customer’s design is available.


    Top Side Vertical Flow Air Shower Specification:


    Top Side Vertical Flow Air Shower HA-AS1400V Series

    Model

    HA-AS1400V1

    HA-AS1400V2

    HA-AS1400V3

    Outer Si(mm) (WXDXH)

    1400x1000x2180

    1400x2000x2180

    1400x3000x2180

    Inner Size(mm)(WXDXH)

    800x930x1910

    800x1930x1910

    800x2930x1910

    Persons per cycle

    1-2 person

    2-4 person

    3-6 person

    Air shower duration

    Factory set at 15 seconds (0-99 seconds adjustable)

    Material

    Coldrolled Steel with Baked Painting or Stainless steel 304/316

    Fan consumption

    1.1KWX1set

    1.1KWX2sets

    1.1KWX3sets

    Air flow of fan(m3/h)

                      1300m3/h

    Fan run (r/min)

    2800r/min

    Nozzle in stain less steel

         16 pcs

    32 pcs

    48 pcs

    Wind speed(m/s)

                            25-30m/s

    Noise level(dB)

                   <62dB

    LED Fluorescent Lamp

    20wx1

    20wx2

    20wx3





    HEPA Filter

    Size(mm)

    595X595X80mm(mini-pleats HEPA filter)

    Efficiency

    99.995%@0.3um

    Resistance

    <220pa





    Pre-filter

    Size(mm)

    785x385x21mm

    Efficiency

    75% @ 5um

    Resistance

    <30 Pa

    Power supply

    380V/50Hz


    Top Side Vertical Flow Air Shower Compared With Traditional Air Shower:

    Top Side Vertical Flow Air Shower For Clean Room 3


    Top Side Vertical Flow Air Shower Application:

    Top Side Vertical Flow Air Shower For Clean Room 4
