We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.
terminal cleanroom fan filter unit filter HAOAIRTECH company
- has a group of experienced R&D personnel, and has technical cooperation with many domestic institutions of higher learning. All this provides a strong guarantee excellent quality of products.
- puts customers first and make effort to provide quality and thoughtful services based on customer demand.
- will insist on the business philosophy of 'quality creates the brand, technology makes benefits'. We promote the enterprise spirit of 'pragmatism, progress, and innovation'. We strive to build a first-class brand and continuously provide high-quality products and services.
- Since the establishment in , has been engaged in the business of best hepa filter. During the development for years, we have accumulated rich industry experience.
- 's marketing network covers all over the world.
1. HAOAIRTECH air filter fan is designed with an innovative and attractive appearance. The product features an energy-saving performance
2. The product passes the verification of international quality inspection standards. The product assures an extremely high-efficient manufacturing process
3. The product has earned the International Organisation of Standard (ISO) certification. It has low noise and high mobility
4. With the shell galvanized, the product is crack-resistant and wear-resistant. additionally, we also provide fan filter unit,hepa fan filter unit service.

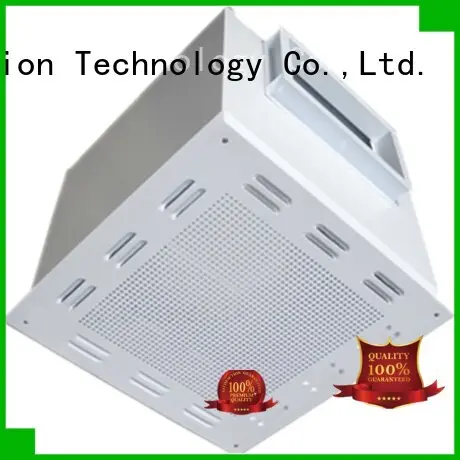

Cleanroom Terminal filtration unit.
Compact with central air-conditioning.
Mini-pleats HEPA air filter efficiency 99.99%@0.3um
Steel with milk powder coated cabinet
Suitable for use in cleanliness class 10000-300000 cleanroom.
Airflow distribution is uniform, with airflow diffusion mesh inside
Guarantee the air speed of airflow and prevent the generation of eddy current.
Expansion is convenient and can be arranged according to cleanliness grade or quantity of heat dissipation, Compact structure , reliable sealing performance.
Introduction
The HEPA air filter unit box is used as the terminal filter device fixed in class1000-300000 clean rooms ceiling. The difference between FFU and HEPA Unit is that the efficient air supply outlet has no motor power and needs to rely on the central air conditioning system to supply air to achieve indoor air circulation
It is the key equipment to meet the purification requirements.
Model | Install size | Filter size | Flange size | Air flow | |
Tube on top | Tube on side | (BXAXH)mm | (H13) | (mm) | M3/h |
KLCAC320C | 390x390x380 | 320X320X96 | 200x200/￠300 | 500 | |
KLCAC484C | 554x554x380 | 484X484X96 | 200x320/￠300 | 1000 | |
KLCAC680C | 680x680x380 | 610X610X96 | 200x400/￠300 | 1500 | |
KLCAC985C | 680x985x380 | 610X915X96 | 200x500/￠300 | 2000 | |
KLCAC1290C | 680x1290x380 | 610x1220x96 | 300x500/￠300 | 3000 | |
Customer size is availble.
Illustration :
1: Flange 2: Ring 3: HEPA filter 4: Diffuser
Light weight, High efficiency, Beautiful appearance.
The diffuser material can be stainless steel or steel with powder coated.
Hepa Filter Unit Box as cleanroom finally air filtration equipment, It including the plenum chamber，HEPA air filter, flanger , diffuer plate .
Application
It is suitable for non-uniform clean rooms of various grades and roof structures.Its main purpose is to filter the terminal air of air supply system of air conditioning box in clean rooms.
It can also be directly installed on the ceiling of the clean room as a terminal filter device, which can be used to renovate or build the terminal air filter equipment of 1000, 10000, 100000
and all levels of clean rooms to meet the purification requirements of the key equipment
/ Certificated
Our Service
1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. is a highly effective company integrating R&D, manufacturing and earnings.
2. Our staff have developed expertise in fan filter unit so much that we even handle unusual filter fan unit jobs which are otherwise not possible easily.
3. We present an unmatched range of hepa filter box, which is precision engineered and valued for their flawless feature and long time superior performance.
