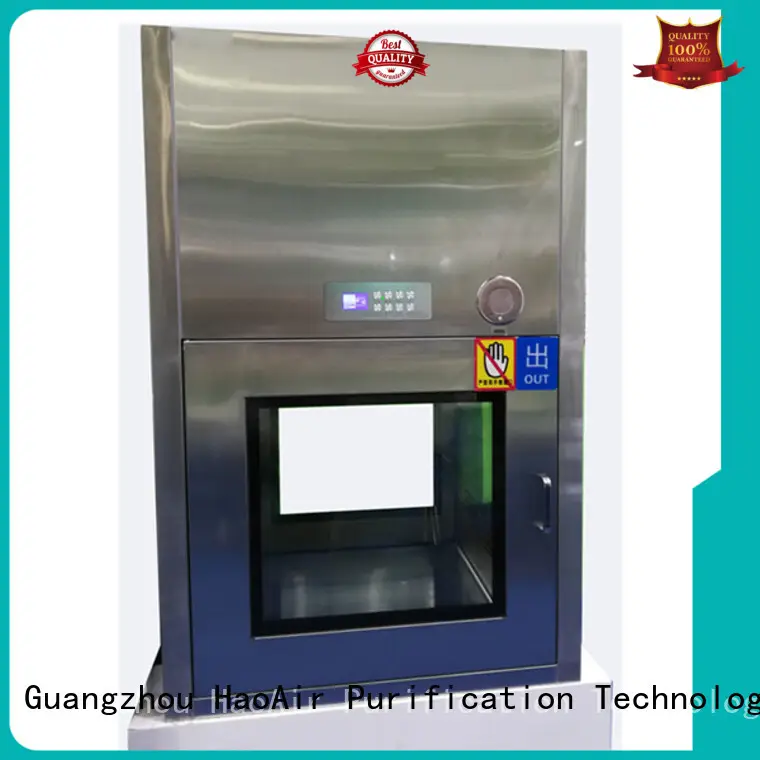

stainless steel dynamic pass box embedded lamps for hospital

Company Advantages
1. HAOAIRTECH dynamic pass box validation is carefully crafted by our skillful workers who utilize advanced production equipment.
2. The product has great natural elasticity. Its molecular chains have great flexibility and mobility to adapt to the changes of shape.
3. The product adds a high-end, elegant feel to the place where it is placed. People nowadays like its simple and practical design.
4. The product has better coverage than advertising and can distinguish brands from competitors. It promotes and strengthens purchasing decisions.

Pharmaceutical Dynamic Pass Boxes

   TECHNICAL SPECIFICATIONS

• Two Stage filtration

• Available in powder coated Mild Steel, SS 304 / SS 316/ SS 316 or a combination of both.

• Finish - Matt finish

• Confirms to GMP norms

• Mechanical or Electromagnetic Interlocking

• Floor and wall mounted design

• Maximum chemical resistance construction

• Modular & economical

• Corrosion resistant

• Aesthetically designed

 Product Characteristic :



  Pharmaceutical dynamic pass box are self-contained units installed at the entrance to clean rooms.

They minimize the amount of particulate contamination and is easy to install and adaptable to existing facilities.

These boxes operate on the principle of one door opening at a time with electromagnetic interlocking so as to avoid any possibility of cross contamination.

Pharmaceutical dynamic pass box assists in transfer of materials driven through a controlled environment but without much personnel movement.

Furthermore, this box helps in prevention of contaminants entrance either in the clean room or between various classified areas.

Dynamic Pass Boxes are designed in conformation to the international standards and are used for transferring

the material from and into the classified clean room without contaminating the air of clean room.

In the process, room door is not required to open. These can be easily installed on the wall between the classified room and unclassified room.

Products Parameter：

Air cleanliness :	ISO Class 5 / Class 100 / M 3.5 AREA
Air Velocities :	0.45 ± 0.05 mps (90 ± 20 FPM)
Air Flow :	Horizontal / Vertical
Noise Level :	Less than 65 dB
Vibration Level :	Minimum
POWER SUPPLY :	230V AC, 1-Ø, 50HZ
MOC :	GI Powder Coated / SS-304 / SS-316 / Combination
Door :	Swing Type Double Door (Double skinned) with View Panel with SS Hinges & ‘D’ Handle
	Internal Coving for easy cleaning
	Two Stage filtration
	EU7 - Intermediate Filter (95% down to 3 micron)
	EU14 - HEPA Filter - Supply / Exhaust (99.999% down to 0.3 micron)
	Fluorescent Lights (interlocked with Door)
	UV Light (interlocked with Door)
Differential Pressure Gauges :	01 No. (HEPA Filter)
Door Opening With Solid State Electronic Inter Locking Mechanism	When both door closed; both are elec. Magnet locked; For open press touch screen to release the door
	At A Time Only One Door Opened
	Audio / Visual Indication for material is kept inside the pass box
	In close condition of both door : UV Light will be on,
	When open any one door : UV will off and FL will on
DOP Port	1set
DQ, IQ, OQ, PQ Documentation	as your request,
