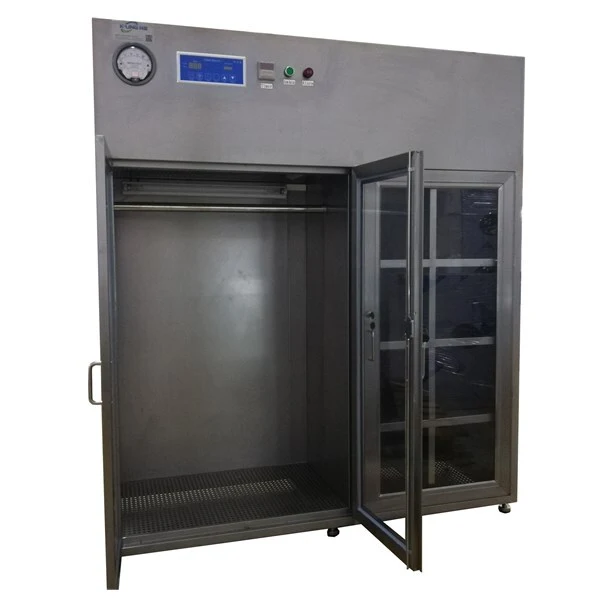

    Stainless Steel Clean Room Equipments Vertical Laminar Flow Cleanroom Garment Cabinet


    Introduction:



    Clean room garment Cabinet also known as clean closet, is a special closet for the clean industry. It is widely used in the storage of clean clothes for special occasions such as medicine, preparations, electronics, precision instruments, meters, foods, etc., enabling clean clothes to be collected and transferred. The process is not contaminated by other air.


    Features:



    1). German EBM direct-drive high efficiency centrifugal fan, low noise, maintenance-free, low vibration, long life, stable performance.

    2). High-quality ultra-high efficiency, ultra-low resistance.

    3). The United States Dwyer pressure differential table, indicating the pressure difference on both sides of the high-efficiency filter, timely reminder to replace the high efficiency filter.

    4). advanced design, according to the United States Federal Standard 209E design, reliability can be extremely high.

    5). Pre-filters and chemical molecular filters can be added as needed to create a better production environment.


    Structure:



    1). The filtration efficiency is 99.99% @ 0.3um.

    2). Material can choose stainless steel or full cold plate electrostatic spray, or both.

    3). Pressure display optional digital display or pointer display.

    4). Optional yellow light/ultraviolet germicidal lamp.

    5). Optional LED automatic control system.

    6). Optional air self-circulation system to prevent secondary pollution.

    Technical Parameter:


    MODEL

    HA-LFG800

    HA-LFG900

    HA-LFG1000

    External size (mm)

    (W*D*H)

    800X500X1800

    900X500X1800

    1000X500X1800

    Work zone (mm)

    (W*D*H)

    700X400X1300

    800X400X1300

    900X400X1300

    Air speed

    0.45m/s +_20%

    Purification rank

    FS209E Rank 100

    Control system

    LED Control board function

    1: Power on/ off

    2: Air speed up and down

    3: purification light and UV light control

    Material

    Stainless steel304 (t=1.2mm)

    Differential gauge

    Dwyer brand Guage (1 pcs )

    Hepa filter

    Mini-pleats HEPA filter 99.99%@0.3um

    Per-filter

    Pleats panel filter (75%@2um(

    UV light

    1 pcs

    Noise

    65dB

    Illumination

    >300lux

    Power

    0.5kw

    0.7kw

    0.9kw


    Product Details:

    Stainless Steel Clean Room Equiptments Vertical Laminar Flow Cleanroom Garment Cabinet 3
