We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

simple clean room manufacturers with ffu for sterile food and drug production 1
simple clean room manufacturers with ffu for sterile food and drug production 2
simple clean room manufacturers with ffu for sterile food and drug production 3
simple clean room manufacturers with ffu for sterile food and drug production 1
simple clean room manufacturers with ffu for sterile food and drug production 2
simple clean room manufacturers with ffu for sterile food and drug production 3

simple clean room manufacturers with ffu for sterile food and drug production

Brand:
HAOAIRTECH
Model number:
HA-MCR
Material:
Stainless Steel 304
OEM /ODM:
OEM/ODM
Certificated:
CE
Start port:
Huangpu ,Guangzhou
Delivery time:
10 working days
MOQ:
1sets
Country of Original:
China
Supply ability:
100Squre/ month
Payment term:
T/T IN advance, 100% LC at sight.
Application:
Cleanroom
Inquiry
Product Name
Softwall cleanroom
Other Name
modular cleanroom
Guarantee Time
12 months
Purificaiton Rank
class100-class 100,000
Dimension
3000x2000x2590mm
Power Supplier
220V/50 or 60HZ
Company Advantages
1. HAOAIRTECH clean room manufacturers is delicately manufactured by excellent production team using advanced technology and sophisticated equipment. The product is reputed for its long service life
2. The product is extensively appreciated among our clients for their excellent features and remarkable economic and commercial value. The product prevents airborne particles and microbes from entrance
3. It is being improved and updated based on innovative technologies. The product is widely used for high-end clean rooms of various manufacturers
4. This product is methodically examined to ensure the quality and durability. The product creates a clean environment to reduce allergy and asthma symptoms
5. The product is fully functional with exceptional value. The product prevents viruses and bacteria from spreading

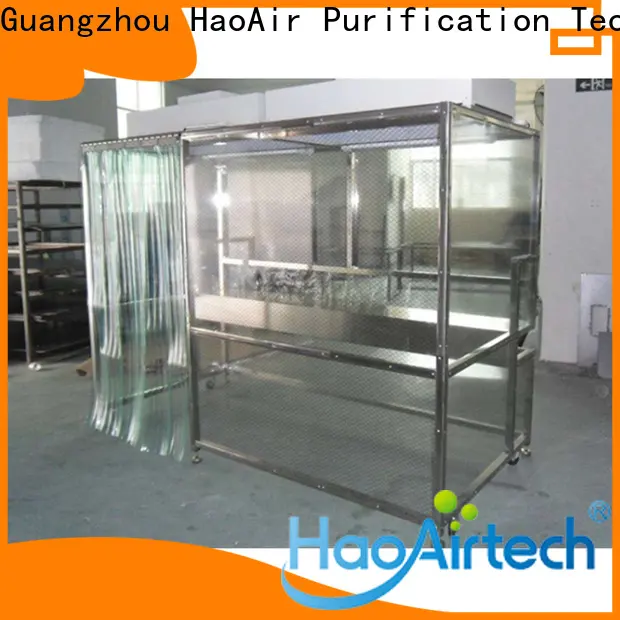

SUS 304 Frame Softwall Clean Room


simple clean room manufacturers with ffu for sterile food and drug production 4

Introduction

 1. With FFU (Fan Filter Unit) as the core, clean booth provides a high level of cleanliness. It is a good option to create a cleaner space within an existing normal room or a room with low-level of cleanliness.

2. Easy installation, low cost, modularized design and easy upgrading

 Application

LCM, CMOS Camera Module, Touch Play, Optical Module, FILM, Biological Pharmacy, Packing,Food

Main Features

(1) Assembly structure designed, easy installation and easily moved
(2) Directional wheels can be installed, suitable for small building and high cleanliness area;
(3) Modular design: clean booth can be as small as several square meters and can be as large as hundreds of square meters
(4) It has large useful and effective area; while compared with traditional clean room, it has such features like low investment, high return and stable.


Parameter

ModelHA-1500HA-2000HA-3000HA-5000
External Size (W*D*H)1500*2000*2530mm2000*3000*2530mm3000*4000*2530mm5000*5000*2530mm
HEPA Filters99.999% efficiency at 0.3 um
Consumption500W800W1000W1600W
FFU Nos.4 pcs6 pcs12 pcs25 pcs
Clean LevelISO 5 (Class 100), Class A
Control Systemcontrol box
Rectangular Tube MaterialSUS 304 material frame
Wall MaterialAnti-static dustproof curtain
BlowerBuilt-in centrifugal blower; speed adjustable
UV LampEmission of 253.7nanometers, with UV timer
Air Velocity0.1~0.6m/s, average 0.45m/s
Noise≤58db
Power SupplyAC220V±10%, 50/60Hz; 110V±10%, 60Hz
Gross Weight390Kg670Kg1100Kg2900Kg
Package Size (W*D*H)

2110*930*920mm

2260*660*500mm

3080*980*1260mm

3080*660*550mm

3080*980*1260mm

3080*980*1260mm

4080*660*550mm



4080*980*1260mm

4080*980*1260mm

4080*980*1260mm

1260*660*1260mm

5080*460*500mm

Customized design for clean level, size or material is available

Display : simple clean room manufacturers with ffu for sterile food and drug production 5



Company Features
1. HAOAIRTECH is dedicated to offering the reliable clean room manufacturers and considerate service.
2. The technology in Guangzhou HaoAir Purification Technology Co.,Ltd. is as strong as that in abroad.
3. Aiming to be a world class enterprise, Guangzhou HaoAir Purification Technology Co.,Ltd. has set its sights on a grand vision of modular clean room for sale . Call now!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
