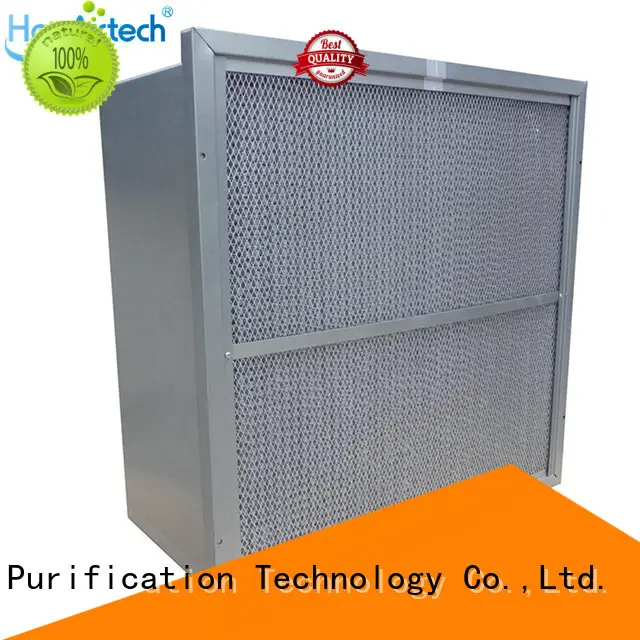

ridgid air filter cell ashare Warranty HAOAIRTECH

Company Advantages
1. Made of stainless steel SUS304, it is beautiful and durable. Owing to its various quality attributes, provided ridgid air filter is highly appreciated by HAOAIRTECH clients.
2. Guangzhou HaoAir Purification Technology Co.,Ltd.'s customer service always works on a professional level. The product assures an extremely high-efficient manufacturing process
3. The product can withstand high temperature. The performance of Rigid box filter,hvac filter box can be comparable to similar imported materials.
4. It highly conforms to the dustless workshop management standard. hvac air filter box produced by HAOAIRTECH rigid filter,residential air filters are more high efficiency air filter..
5. It acts as an indispensable part in a dustfree production line. With good properties of box filter, hvac air filters,ridgid air filter can be widely used in many fields.

Characteristics:

Dual density media reduces operating cost

Excellent performance in difficult operating conditions

High efficiency low resistance

Rigid metal construction

Deep pleats type water resistance glass fibre media

Turbulent air flow

Supported with aluminum foil clapboard

High temperature and high humidity

Intermittent exposure to water

Efficiency: MERV 14, MERV 13 and MERV 11 .



Operating conditions:

Media	Glass   Fiber
Frame	AL/GL   frame
Clapboard	Aluminum   Foil
Frame thickness (mm)	150/292mm
Screen	Metal   screen
Efficiency	F7/F8
Max Temperature	350 ˚F (177˚C)
Max Humidity	100%





Products Parameter：

Dimension   (mm) (W*H*D)	Rate Air   Flow   (m3/h)	Media   Area    (m2)	Dust   Holding    (g)	Rate   primary Resistance    (Pa)	Finally Resistance      (Pa)	Efficiency
289x594x150	675	4.3	261	<60	250-300	F6
594x594x150	1385	8.84	354
287x594x292	1490	9.52	571
594x594x292	3085	19.7	1185
289x594x150	675	4.3	261	<80	300-400	F7
594x594x150	1385	8.84	354
287x594x292	1490	9.52	571
594x594x292	3085	19.7	1185
289x594x150	675	4.3	261	<100	300-400	F8
594x594x150	1385	8.84	354
287x594x292	1490	9.52	571
594x594x292	3085	19.7	1185



Application:

Commercial buidings, data centers , food and beverage, hospitality , industry , microelectronics

Healthcare , schools and universities ,pharmaceutical .

Company Features
1. HAOAIRTECH specializes in manufacturing Rigid box filter with high quality and reasonable price.
2. Adversity Successfully Overcome Is The Highest Glory. HAOAIRTECH Offers A Wide Range Of rigid filter, ridgid air filter, hvac filter box At Reasonable Price To Customers From All Over The World. Please Contact Us!
3. HAOAIRTECH focuses on continuous technological innovation to improve products and services. Inquire now!
