Quality HAOAIRTECH Brand chemical filtration granular

Company Advantages
1. The product prevents viruses and bacteria from spreading. Thanks to the unique design of chemical filtration, we are proud to present HAOAIRTECH products to customers all over the world. The product prevents viruses and bacteria from spreading
2. The product will greatly improve the quality of factory-made products. we have the state-of-the-art assembly line ensure both the quality and efficiency.
3. The product stands out for its high efficiency for purification. Our chemical filter,cartridge filter are of v bank filter and high quality.
4. Conveniently active carbon air filter v cell filter for easy everyday care, this sheet set will instantly upgrade your chemical filtration experience. The product creates a high cleanliness working environment
5. Gas-Phase Air Filter produced by Guangzhou HaoAir Purification Technology Co.,Ltd. is proved to have good performances and long service life. The product is reputed for its long service life

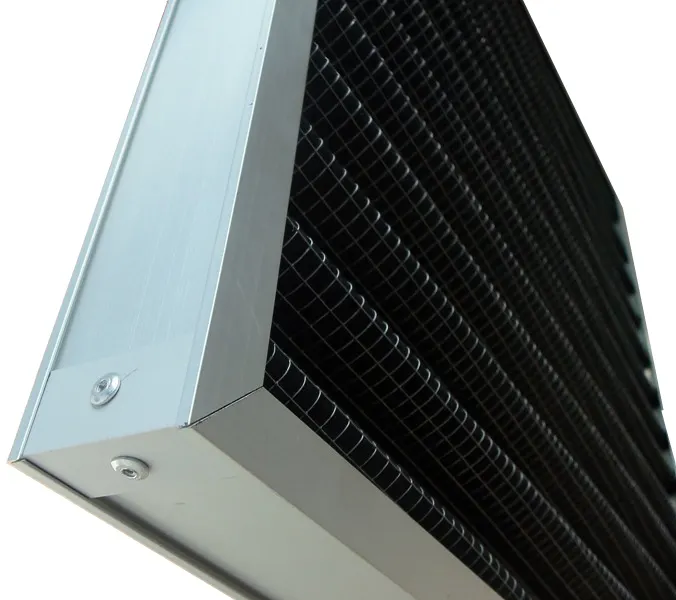

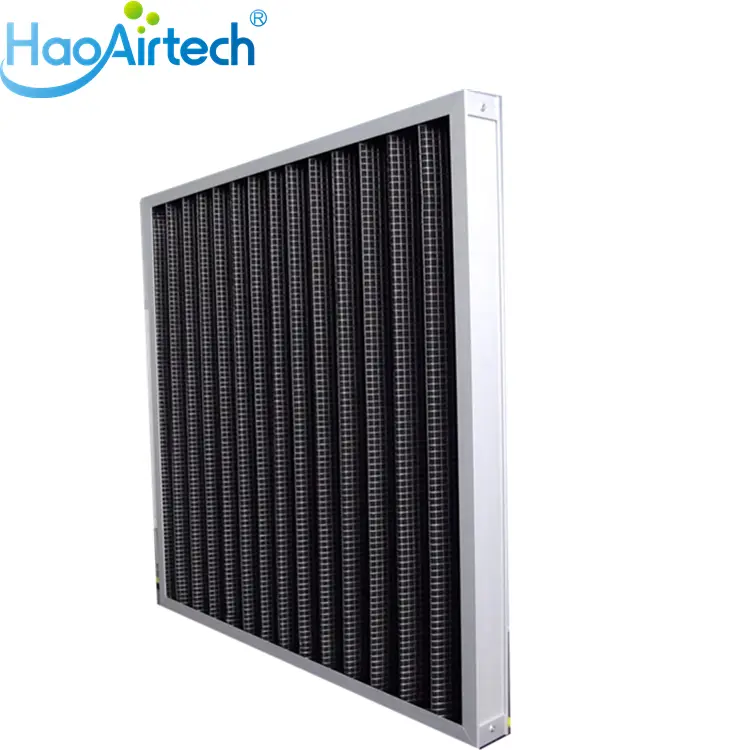

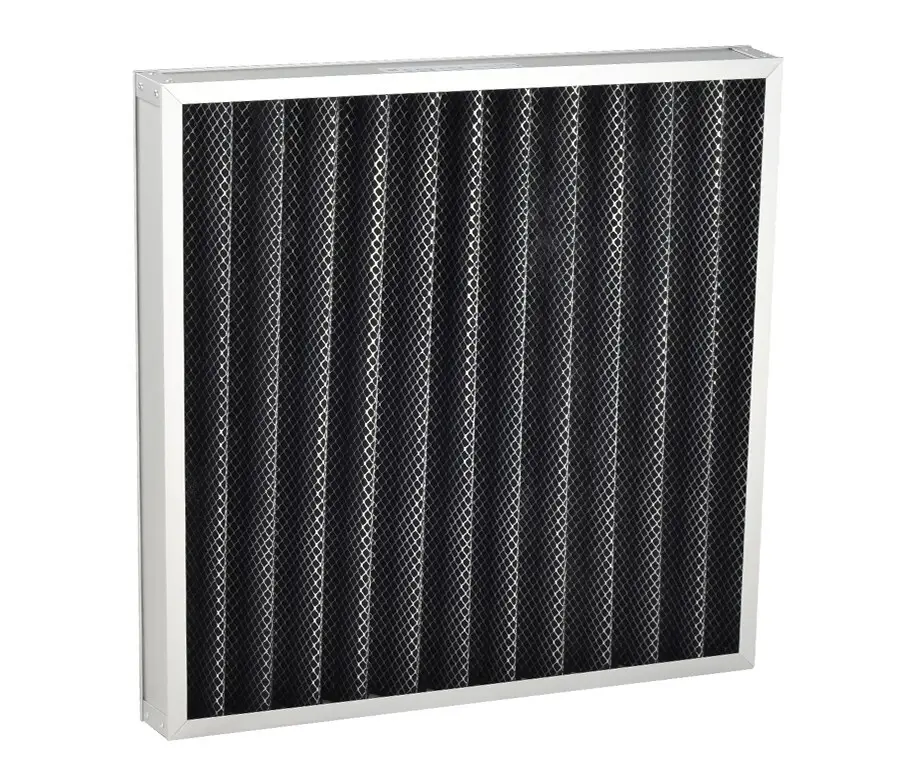

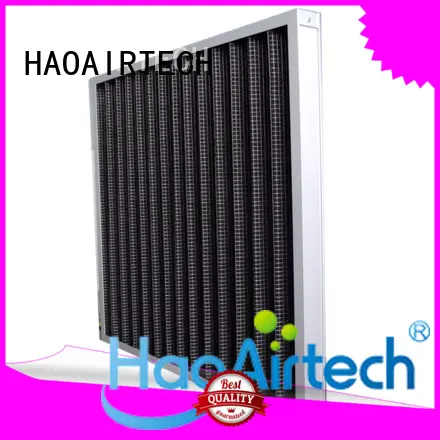

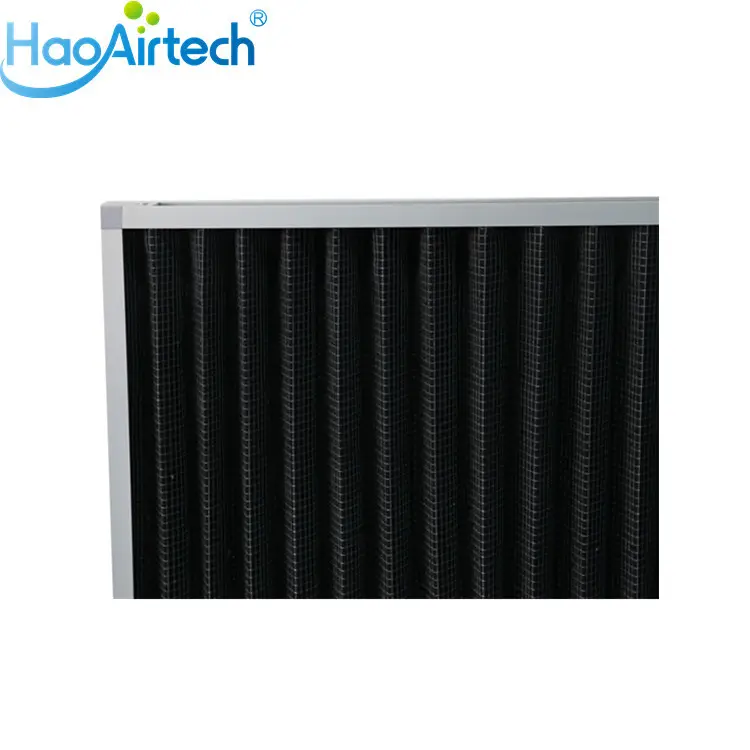

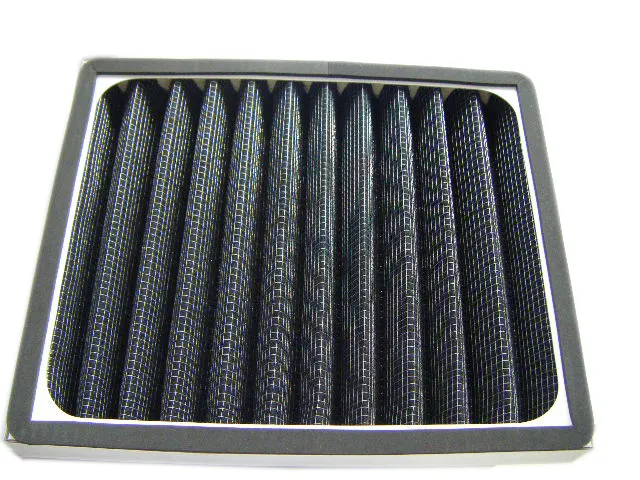

          Pleats activated carbon filter is mainly made of activated carbon cotton as filter media material, with folding shape to increase the filter area, metal wire mesh clamping or built-in metal keel framework support, and metal outer frame. This kind of filter has great adsorption capacity and can effectively remove a large amount of ozone and harmful gases.



          The pleats activated carbon filter media material make the high adsorptive capacity activated carbon raw material impregnated in the hexyl ester foam and bound it into a sheet like adsorbent.

          Due to the porous hexyl ester, so it with gas permeability and the shape stability performance . Because the powder activated carbon contact with the adsorbed substance, so  the contact area is widely and the adsorption speed very fast.  Hexyl formate has the same excellent dust collection effect.





size   (W*H*D)	Rate Air   Flow(m3/h)	Primary   Resistance	Media Area (g)	Odor Removal   Efficiency
592x592x21	1100	40pa	0.9	70%
287x592x21	550	40pa	0.44
490x592x21	950	40pa	0.8
592x592x46	1200	40pa	0.9
287x592x46	600	40pa	0.44
490x592x46	1000	40pa	0.8
592x592x50	1300	40pa	1.06
287x592x50	704	40pa	0.56
490x592x50	1173	40pa	0.93

Equilibrium Adsorption of Poisonous Gases by Folded Activated Carbon Filter (mg/g)

toluene	xylene	formaldehyde	methanol	Ethyl ether	chloroform	acetone	gasoline	ammonia	Hydrogen sulfide	sulfur dioxide	hydrogen chloride
320	290	320	260	470	530	230	290	290	1060	830	450



          1:  It is suitable for industrial ventilation system to remove odors and harmful gases.



    2： Special activated carbon materials such as volatile organic compounds, acidic, alkaline gases, formaldehyde, mercury vapor and radioactive gases can be provided according to actual needs.
