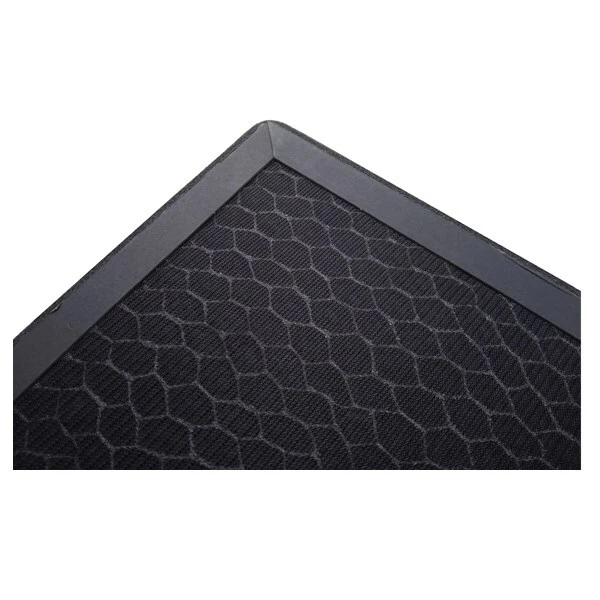

Customizable Fine Particles Activated Carbon Air Filter For Air Odor
Introduction
Activated carbon is a multi-aperture charcoal with pore structure and adsorption characteristics.
Its adsorption is formed by physical and chemical absorption. Its appearance is black.
Columnar activated carbon is used for purification of toxic gases, exhaust gas treatment. , industrial and domestic water purification treatment, also used to remove air pollutants and classified gas purification.Our company acceptable non-standard order.The following are some of the other types of activated carbon filter products of our company.
Customer size is available.
Specification:
Standard sizes(W*H*D)(mm) | Primary Resistance(Pa) | Rated air volume(m3/h) | Filtration efficiency |
595×595×46 | 25 | 3200 | 40% |
495×595×46 | 25 | 2700 | |
495×495×46 | 25 | 2200 | |
295×595×46 | 25 | 1600 | |
295×495×46 | 25 | 1200 | |
595×595×46 | 30 | 3200 | 70% |
495×595×46 | 30 | 2700 | |
495×495×46 | 30 | 2200 | |
295×595×46 | 30 | 1600 | |
295×495×46 | 30 | 1200 | |
595×595×46 | 40 | 3200 | 80% |
495×595×46 | 40 | 2700 | |
495×495×46 | 40 | 2200 | |
295×595×46 | 40 | 1600 | |
295×495×46 | 40 | 1200 | |
595×595×46 | 45 | 3200 | 90% |
495×595×46 | 45 | 2700 | |
495×495×46 | 45 | 2200 | |
295×595×46 | 45 | 1600 | |
295×495×46 | 45 | 1200 |
Factory Production Picture:
