We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.
professional laminar hood hood for biology horizontal
1. HAOAIRTECH laminar hood is pre-tested and pre-certified. The results show that it exceeds not only current codes, but also exceeds the most stringent green building codes and standards in the market today.
2. laminar hood is designed according to the factual demand. Its prominent merit is that it has laminar flow cabinet price .
3. Featuring laminar flow cabinet price , laminar hood is suitable for laminar air flow .
4. This product has won the good reputation and trust of domestic and foreign customers.
5. More and more people are attracted by the great economic benefits of the product, which sees its great market potential.
LCD control board with air speed control in three level at least
Negative Pressure Laminar Flow
GMP Modular design with minimized joints and seams.
2 different filters configuration available utilizing combination G1, H14 and PLF Screens .
Gel sealant HEPA Air Filter(99.995%@0.3um) for high purification rank
DOP/PAO Test port for your make the air filter efficiency test
Purification rank: Class100 /ISO5
Air speed: 0.45m/s+_20%10% Exhaust air leaking (Adjustable)
Introduction

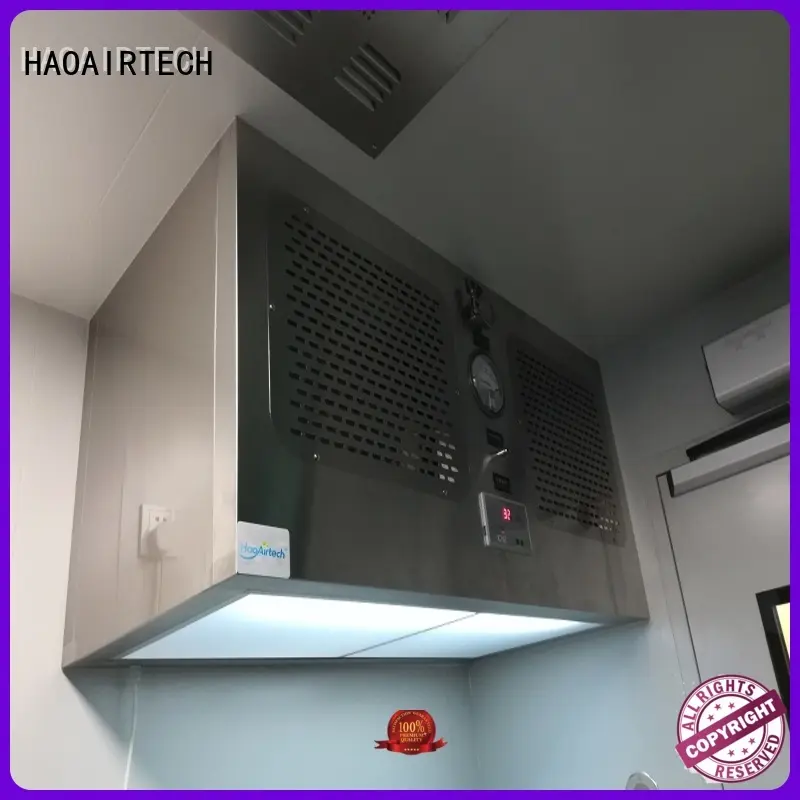

Laminar air flow hood provide operator, process and product protection by utilizing HEPA filtered unidirectional laminar air flow booth to maintain an ISO5 environment at rest within the work zone and capture particulates during open handling processes .
MODEL | HA-DB1000 | HA-DB1500 | HA-DB2000 |
External size (mm) | 1200x1500x2400mm | 1500x1700x2400mm | 2000x1800x2400mm |
Work zone (mm) | 1100x1200x2000mm | 1400x1200x2000mm | 1900x1300x2000mm |
Purification rank | Class 100(ISO5) | ||
Air speed | 0.45m/s +_20% | ||
Material（Option） | 1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm) | ||
Control system | 1: LCD touchable screen display with air speed adjustable and constant temperature and constant humidity data check. | ||
Noise level(dB) | <65dB | ||
Filter step | 3 Step | ||
HEPA filter | 99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter | ||
Secondary filter | F8 pocket air filter | ||
Pre-filter Efficiency | G4 Z-Line panel air filter | ||
Power supply | 380V/50HZ OR 220V/50HZ | ||
Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
Application
Weighting booth is designed such that through the different configurations it can be applied but not limited to the follow field : food ,electronic, robotic, nutraceutical, animal , cosmetic , biological , and pharmaceutical .
/ Certificated
Our Service
1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. is an outstanding brand in the industry.
2. We put great emphasis on technology of laminar hood .
3. Guangzhou HaoAir Purification Technology Co.,Ltd. assures problems of customers are problems of ours and we will surely help. Ask! HAOAIRTECH grows up with your trust. Ask! HAOAIRTECH has been following the management idea of laminar flow cabinet price to serve the customers wholeheartedly. Ask!
Email: sales2@haoairtech.com
Add: RM323 KaiSheng Building,CongYun RoadYongping street ,Baiyun District, Guang Zhou, Guangdong, China
