portable clean room manufacturers with ffu online

Company Advantages
1. Our clean room manufacturers is rich in modern design and delicate production. It highly conforms to the dustless workshop management standard
2. The product is perfectly suited to the customer's application needs and now enjoys a larger market share. The product is widely used for high-end clean rooms of various manufacturers
3. This product has a high yield. Once the design basic parameters and standard specifications are entered into the product, it can perform high-volume daily tasks from start to finish and provide flexible scalability. The product can withstand high temperature
4. This kind of product with the features of ultra-light & ultra-thin and abrasion resistance and impact resistance, which can keep the lens and natural for a long time. It has low noise and high mobility
5. It has the ability to keep the same color without fading or running, even when washed, placed under strong light, exposed to sweat or treated with certain chemicals. The product's rigid frame forestalls shrinking or bending

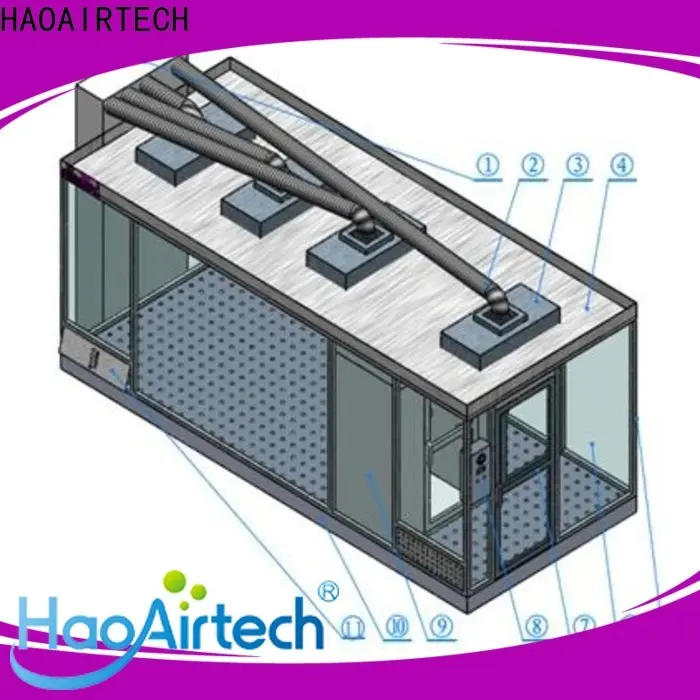

Illstration :

1: Air conditioner      2: Air duct             3: Fan filter unit

4: Top Blind plate     5: Stainless steel frame     6: Acrylic wall

7: SS hinged door      8: Control box        9: Air shower

10：Raised floor      11: pressure damper



Product Features：

Purification Rank : Class100-10000

Low cost , high speed and easy upgrading

The structure is solid, stand independently and freely

The cleanroom can be quickly installed in the existing ordinary environment and improve the working environment.
Fan filter unit with mini-pleats HEPA filter/ULPA filter

Material : stainless steel 304 or steel with milk color powder coated

perssure Relief valve one set.

Control Box  :

A: Control the power on/off

B: control the fan filter unit air speed  UP/Down

C: Control working area purification light

D: Control the UV light in working area

E:  Monitor differential gauge so that replacement HEPA filter in time.

Products Parameter：



Item		Clean Room Enclosures with constant   temperature and humidity controlled
Purification   rank		Class   to class 100.000
Dimension   L*W*H		According client request
Fan   filter unit	Dimension	2x2,2x4,4x4  optional
	Structural   material	Stainless steel, aluminum alloy, AI-Zn   plate
	Power   supply	220V/50HZ AC
Air Filter		Mini-pleats HEPA /ULPA Air filter
Frame   material		Aluminum alloy/stainless steel201/304
Wall   material		Acrylic /sandwich panel/anti-static   acrylic
Ceiling		Aluminium –plastic panel , sandwich panel
Air   conditioner		Constant temperature air conditioning Or Constant temperature and humidity air   conditioning
Lighting		LED light or T5 (Optional )
Air   conditioner		Constant temperature and humidity controlled
Relief   valve		1 sets
Air   Outlet shutter		1sets
air   shower		For one or two person
Pass   box		Optional
Air   flow floor		Raised floor





Company Features
1. With its high-tech machines and methods, HAOAIRTECH has now become a leader in the clean room manufacturers field. Our company has responsible directors and managers. They possess strong attention to detail, work tightly with all colleagues, staffs, workers, and suppliers for delivering the highest quality products and services.
2. We possess state-of-the-art production units. These machines feature not only excellent design but also can result in outstanding manufacturing quality. They ensure our constancy in product quality.
3. We have expanded our selling channels in different countries. They mainly include Europe, South America, Middle East, and Southeast Asia. Our products, in these markets, sell like hotcakes. We insist on sustainable activities in our daily operations. By adopting socially responsible norms as early as possible, we aim to set standards for our industry and improve our processes. Get an offer!
